Tie Down Outdoor Entertainment Center - Manual (Page 2)

Outdoor Entertainment Center
GalvX #86908 / Galvanized #86926
Bottom Screw
Mount
3

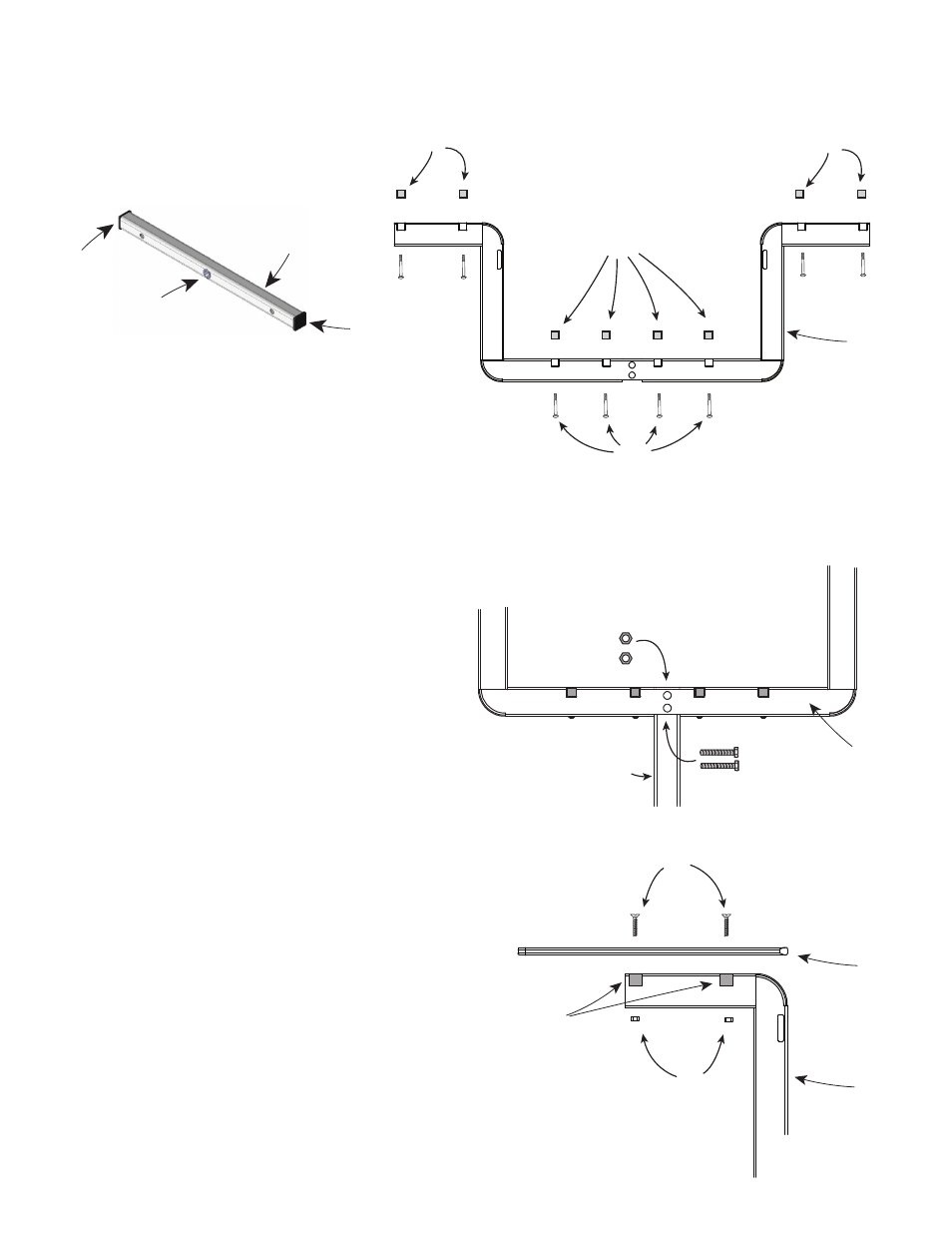

1. Place Horizontal Support Tubes (#3) into the slots
located on the Top Frame Tube (#2). Alien the
bottom screw mount with the corresponding hole
on the bottom of the frame tube (#2). Using 1/4" x 2"
pan head screws (#6) attach 8 horizontal support
tubes (#3) to top frame tube (2).
11
11
2
2
4
3
2
3
3
6
6
6
8
9
3
7
8
1
Assembly Instructions:
2. Slide Support Tube (#1) into the slot
provided in the middle of Top Frame
Tube (#2), alien holes. Using 2 -1/4" x 2.75"
carriage bolts (#9) and 2 - 1/4" nyloc nuts
(#10) attached top frame tube (#2)
to support tube (#1).
3. Using 4 - 1/4" x 1.75" flat head screws (7)
and 4 - 1/4" nyloc nuts (8) attached side table (4)
to the horizontal support tubes (2). Repeat
for the other side table.
