9. install steering disengage switch (kit 91-07011)
The steering disengage kit (BB) is used to automatically disengage FieldPilot when the steering wheel is
turned. The magnets mount on the steering shaft or other rotating part of the steering wheel and the sensor
mounts so that there is a 1/8” clearance between the sensor and magnet. One option on some machines
is to use existing factory installed magnets already installed on the steering shaft. To use this method,
the steering wheel must be removed and two holes drilled in the plastic housing---one to insert the sensor
through and one for securing the bracket for the sensor.

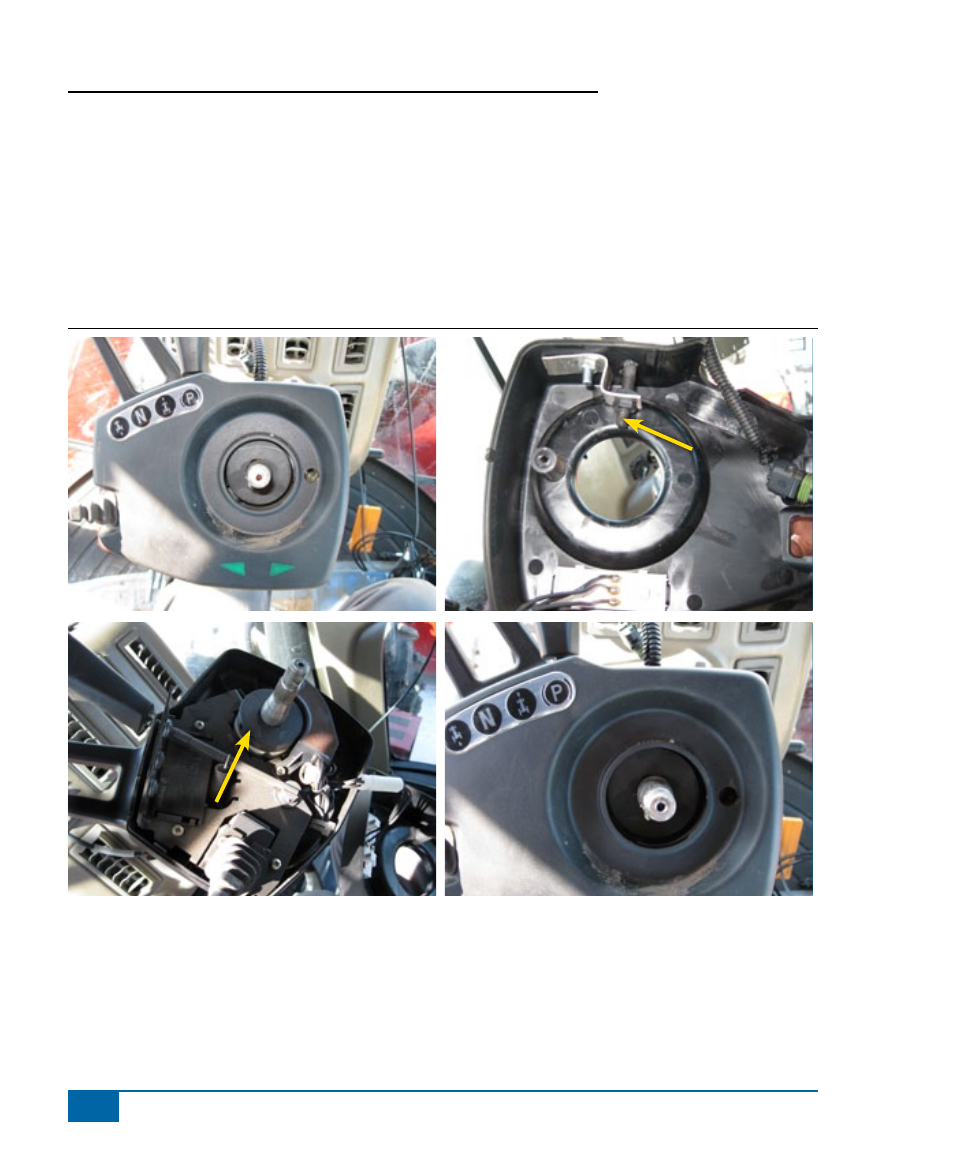

Figure 1-12: Install Steering Disengage Switch (Kit 91-07011)
sensor
Magnets
in ring
