2. install MOunting Bracket FOr FieldPilOt ValVe
The FieldPilot brackets will mount on the Hazard Signal Bar on the rear of the machine. Use parts
(B, H, & I) to mount the brackets (J & K) as shown. The valve and brackets should be mounted to right
side so it doesn’t obstruct the operator’s view of the hitch.

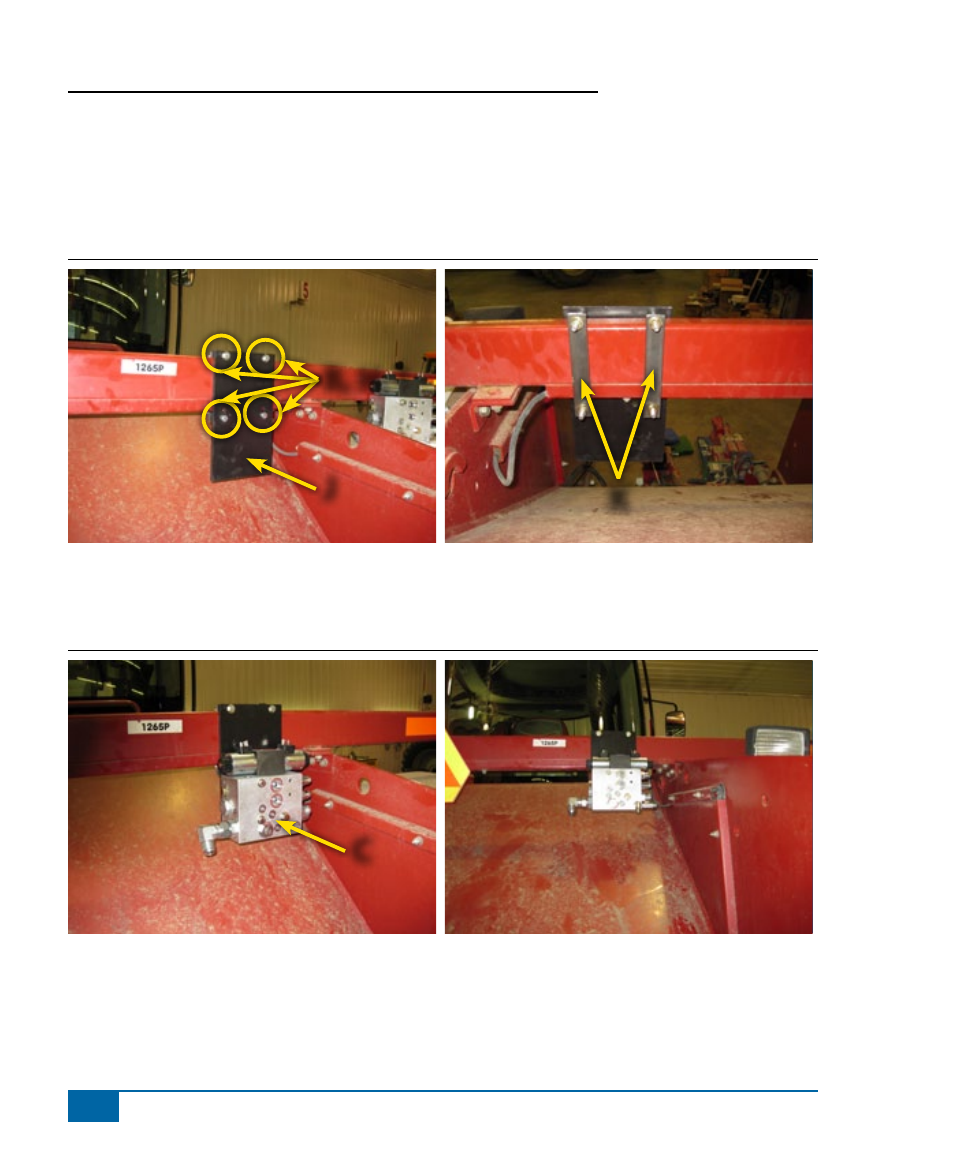

Figure 1-5: Install Mounting Bracket for FieldPilot Valve
3. MOunt the FieldPilOt ValVe
Use parts (B, G, & H) to mount the FieldPilot Valve (C) to the bracket installed in the previous step.
Figure 1-6: Mount the FieldPilot Valve
B, H, i
J
K
C
