Page 18
www.teejet.com
16
FieldPilot
®
6. install Pressure hOse and adaPters
Remove the plug on the Power Beyond Port labeled ether IN or P. It will be on the left stack of SCVs as you
face the machine. Install adapter
(X)
into the port and attach adapter
(R)
to adapter
(X)
. Then route hose
(N)
from adapter
(R)
to the P port on the FieldPilot valve.

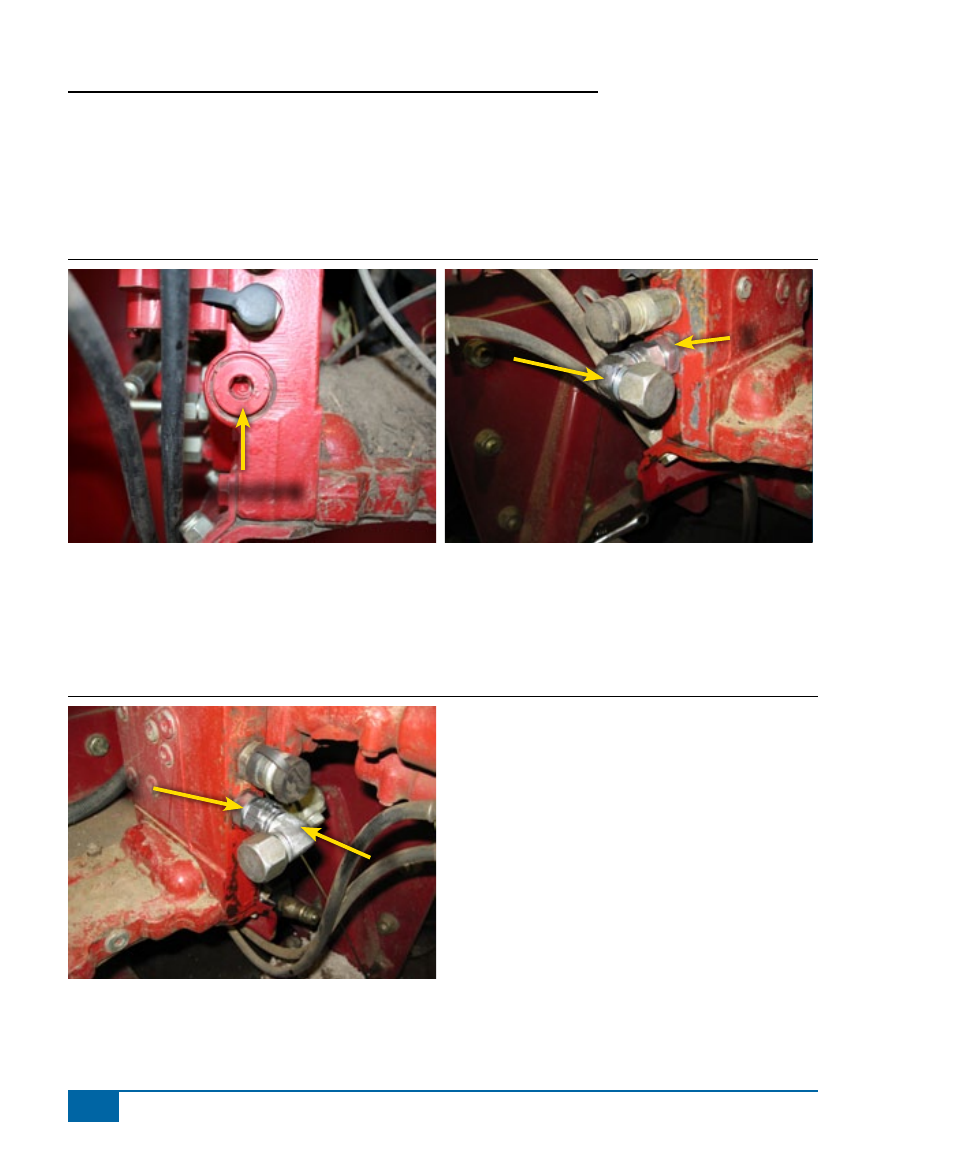

Figure 1-9: Install Pressure hose and adapter
7. install the tank hOse and adaPters
Remove the plug on the Power Beyond Port labeled ether OUT or RET. It will be on the right stack of SCVs
as you face the machine. Install adapter
(X)
into the port and attach adapter
(R)
to adapter
(X)
. Then
route hose
(M)
from adapter
(R)
to the T port on the FieldPilot valve.
Figure 1-10: Install The Tank Hose and Adapters
remove
r
X
X
r
