8. install steering disengage sensor

Remove the shield that covers the steering shaft. Drill a hole in the shield near the bottom left corner as shown.

Install bracket and sensor from kit

(U)

as shown. Glue 3 magnets to the shaft of the steering. Set the clearance

between the sensor and magnets to 1/8” and rotate the steering wheel in both directions to be sure that the

sensor does not contact the magnets or the shaft.

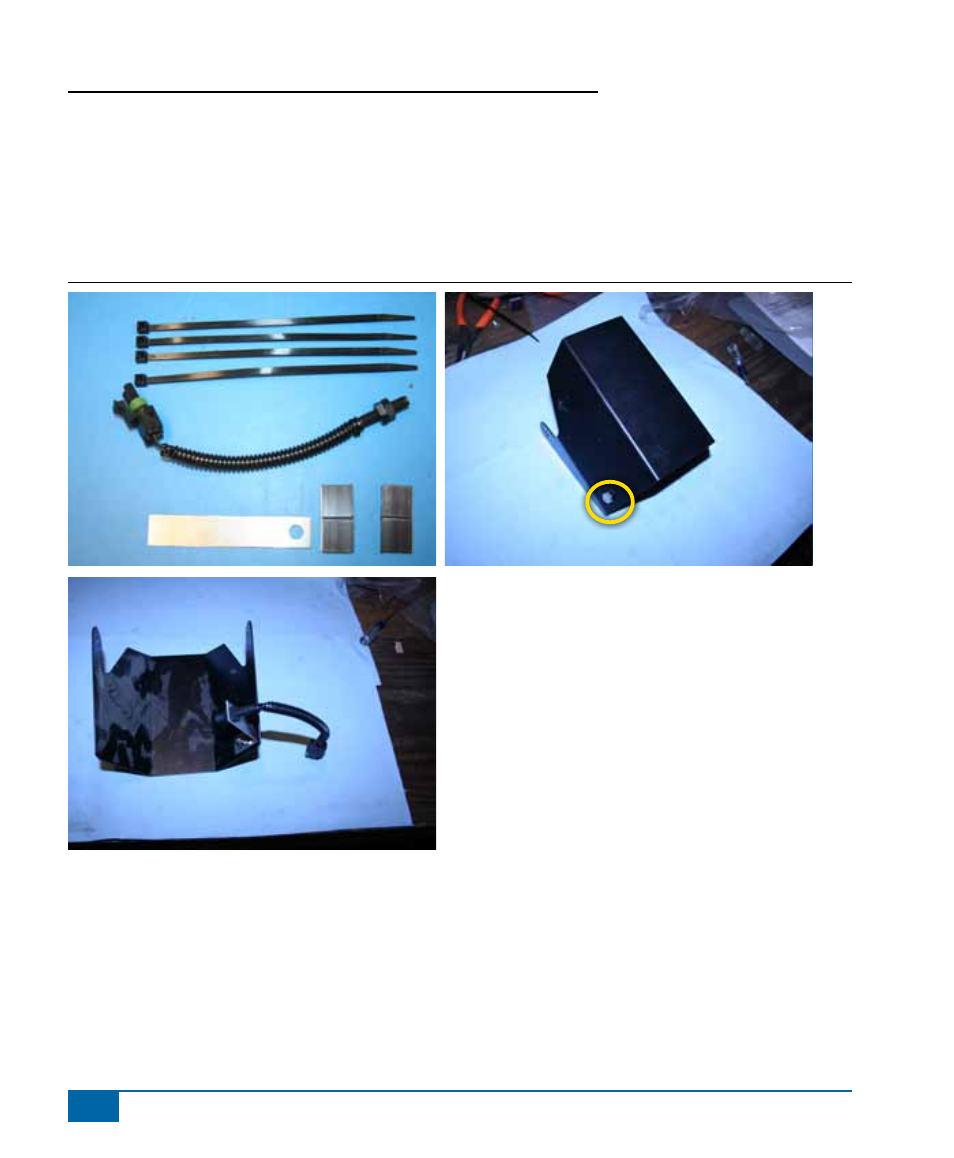

Figure 1-11: Installing the Steering Disengage Sensor

..
