9

FieldPilot

®

98-05154 R1

1. PrePare the FieldPilot ValVe

Install fitting

(S)

in the A and B ports of the FieldPilot Valve

(C)

. Install fitting

(O)

in the T port. Install fitting

(R)

in the P port. Install fitting

(R)

in the EF port. Attach fitting

(P)

to fitting

(R)

in the P Port.

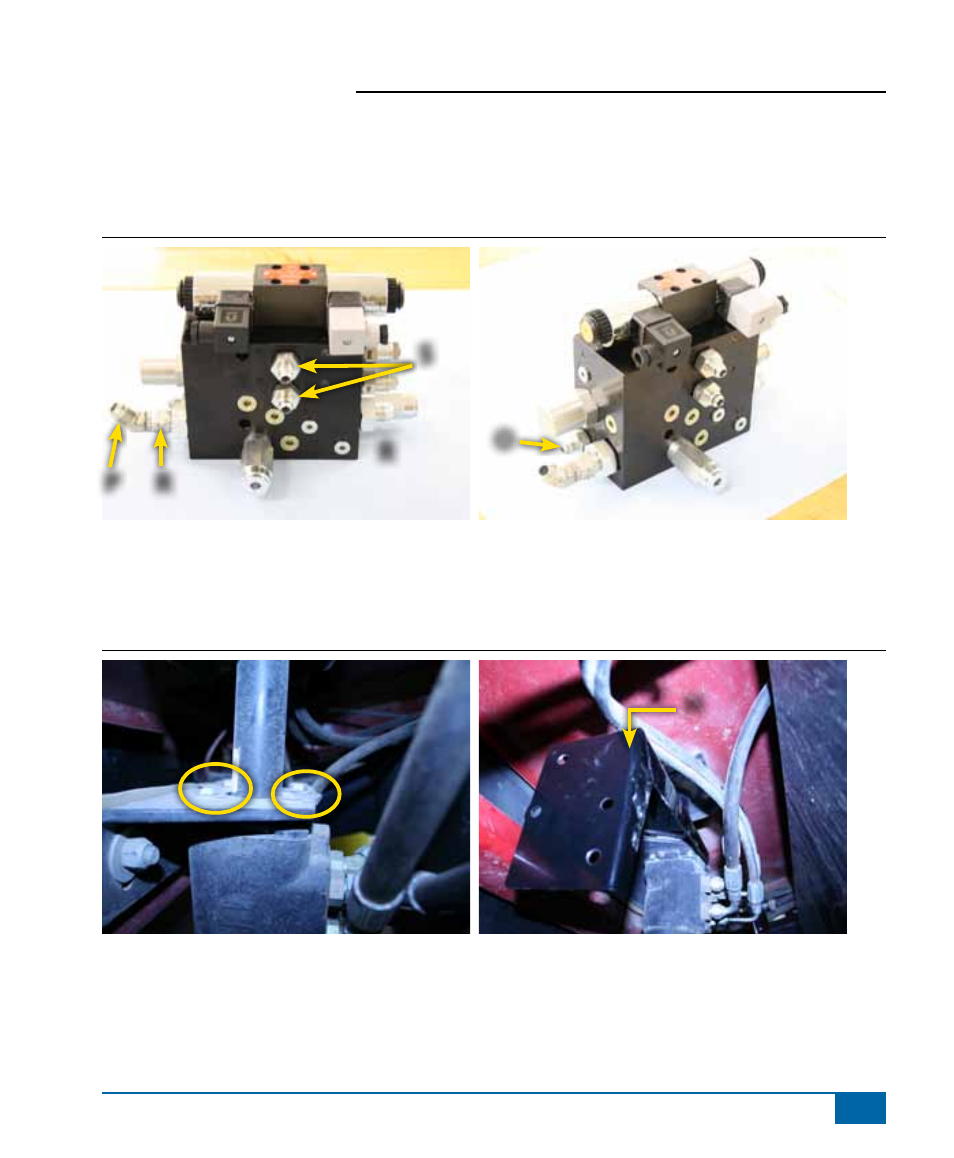

Figure 1-4: Preparing the FieldPilot Valve

2. install the FieldPilot ValVe Bracket

Remove the two bolts on the left side of the orbital and then using the same bolts attach bracket

(H)

to the orbital

bracket.
Figure 1-5: Installing the FieldPilot Valve Bracket

H

s

p

R

o

R
