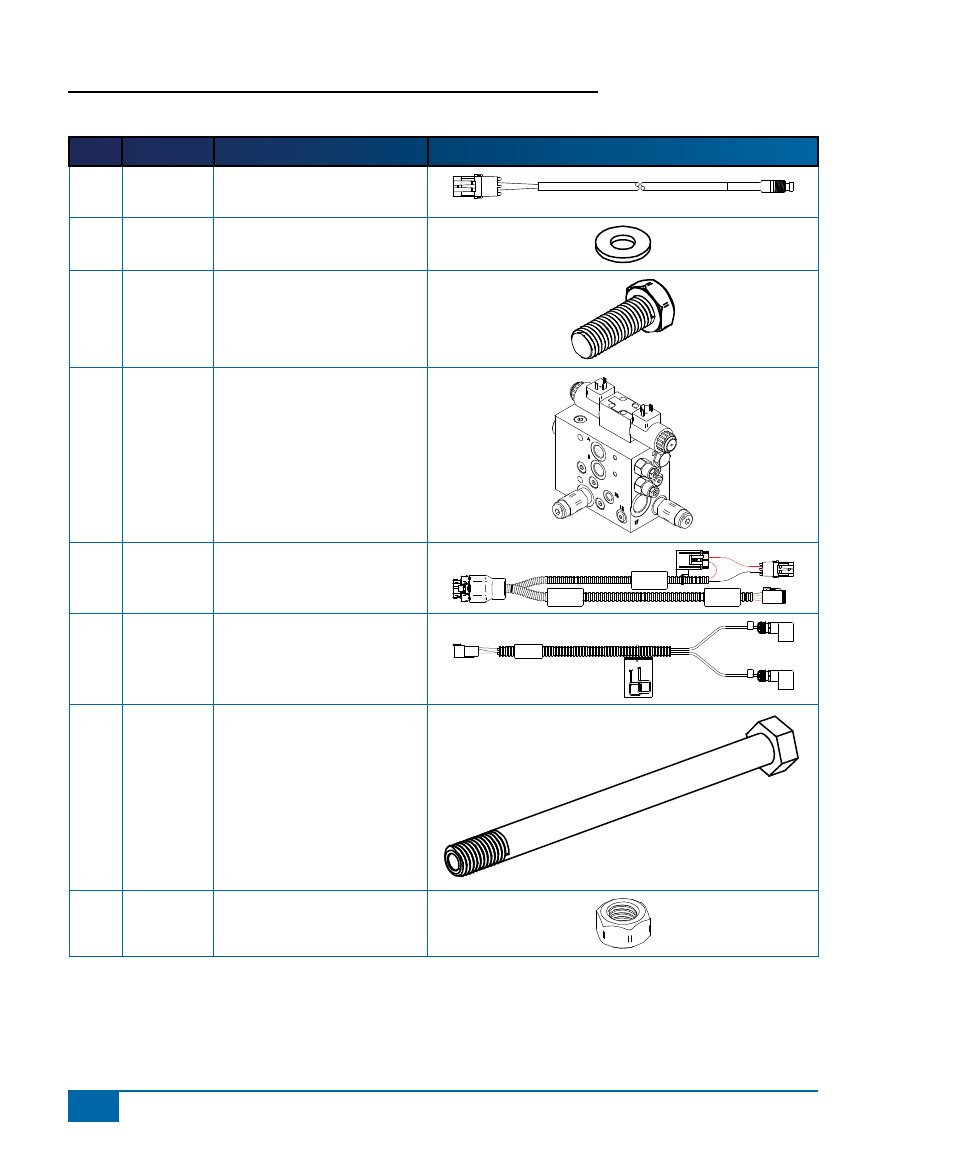

FieldPilot

®

Item Part #

Description

Illustration

A

32-04040

Switch, Engage/Disengage,

Momentary

B

350-0037

Washer, Flat - 3/8" SST

C

350-0627

Bolt, Hex 3/8-16 x 1", SST

D

35-02189

Valve, FieldPilot PWM,

3.2GPM, OC

E

45-07703

Harness, SCM

SCM Power I/O

45-07703

DC: xx/xx

Valve Output

Power

F

45-10103

Harness, Valve

A

B

45-10103

DC: xx/xx

G

60-04089

Bolt, Hex- 3/8-16 x 3-3/4"

SST

H

60-07027

Nut, NyLock 3/8-16, SST
