www.teejet.com

9

FieldPilot

®

1. PrePare the FieldPilOt ValVe

Install adapters

(O)

in the P and EF ports. Install adapters

(Q)

in the A and B ports, then install adapter

(S)

in the T port. Next attach adapters

(P)

to adapters

(Q)

in the A & B ports. Finally attach adapter

(R)

to

adapter

(S)

in the T port.

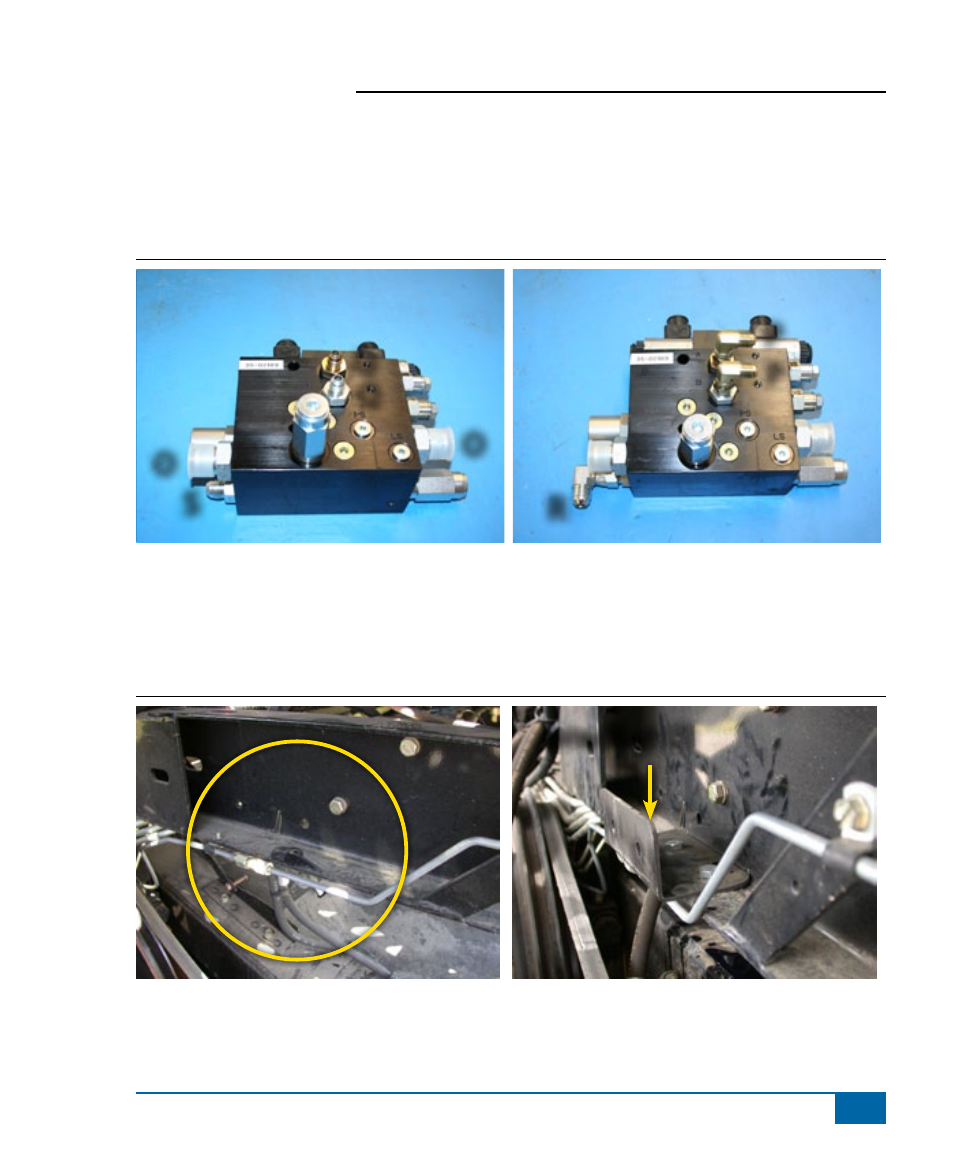

Figure 1-3: Prepare the FieldPilot Valve

2. MOunt the FieldPilOt ValVe

The FieldPilot valve will be mounted on the outside of the right side frame rail that runs forward underneath

the cab. Depending on the machine model, there may already be one hole in the frame, in which case this

hole will be the rear-most hole used to mount valve bracket

(I)

.

Figure 1-4: Identify Mounting Hole

Bracket (i)

o

s

Q

Q

o

r

p

p
