www.teejet.com

12

FieldPilot

®

6. install tank hOse

Locate the Tank oil connection under the cab and above the feeder housing. If there is an unused (capped)

connection point, connect hose

(J)

to this connection point or use optional run tee adapter

(M)

to create an

additional connection point. Connect hose

(J)

.

NOTE: The machine may not be exactly as illustrated due to the absence/presence of a number of machine

options.

Connect the other end of hose

(J)

to adapter

(R)

installed in the T port of the FieldPilot valve. USE

PLASTIC CAPS TO PREVENT EXCESS LEAKAGE FROM THE OPEN PORTS.

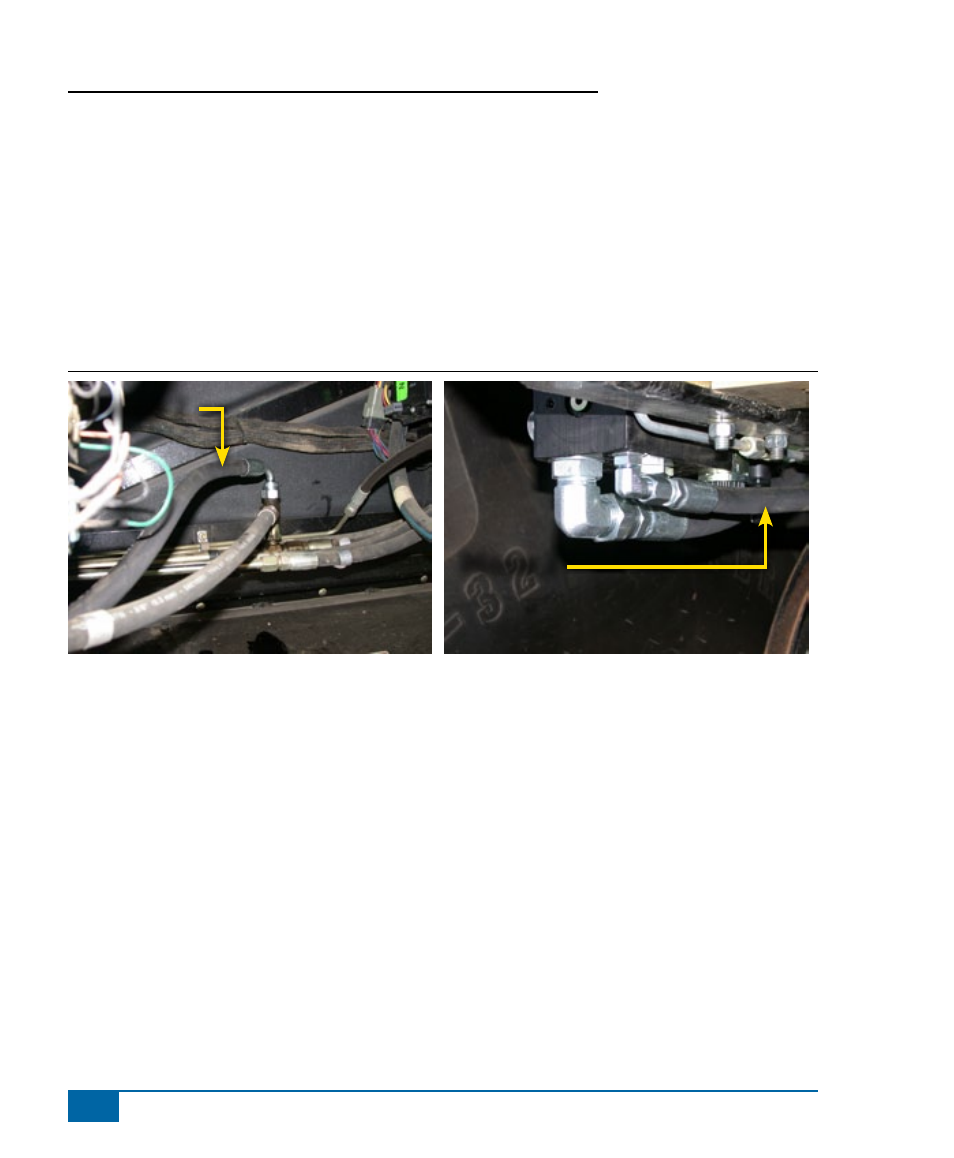

Figure 1-9: Install Tank Hose

Hose J

Hose J

7. install leFt and right steer hOses

Locate the left and right steer hoses where they connect to the right side of the orbital valve (ports closest to

the 1/4” Load Sense hose). Taking care to remember the port that each of the original hoses was connected

to, remove the hose. Install run tee

(N)

to the adapter on the orbital and connect the original hose to the run

on the new run tee. Connect the 90° end of hose

(K)

to the branch of the run tee. Connect the other end

of hose

(K)

to adapter

(P)

installed in the A and B ports of the FieldPilot valve. Repeat this process for the

second run tee and hose. Do not be concerned about which hose

(K)

goes to which port on the orbital or

FieldPilot valve.
