10
FieldPilot ®
Be careful to identify which face on valve bracket (I) mounts to FieldPilot valve (D) . Using the other face of
the bracket as a template, mark and then drill the required 7/16” hole(s) in the frame and secure the bracket
to the frame using hardware (B, G & H) .
Using hardware (B, G & H) , mount the FieldPilot valve (D) to the valve bracket (I) making sure that the
solenoid valve coils face toward the rear of the machine.

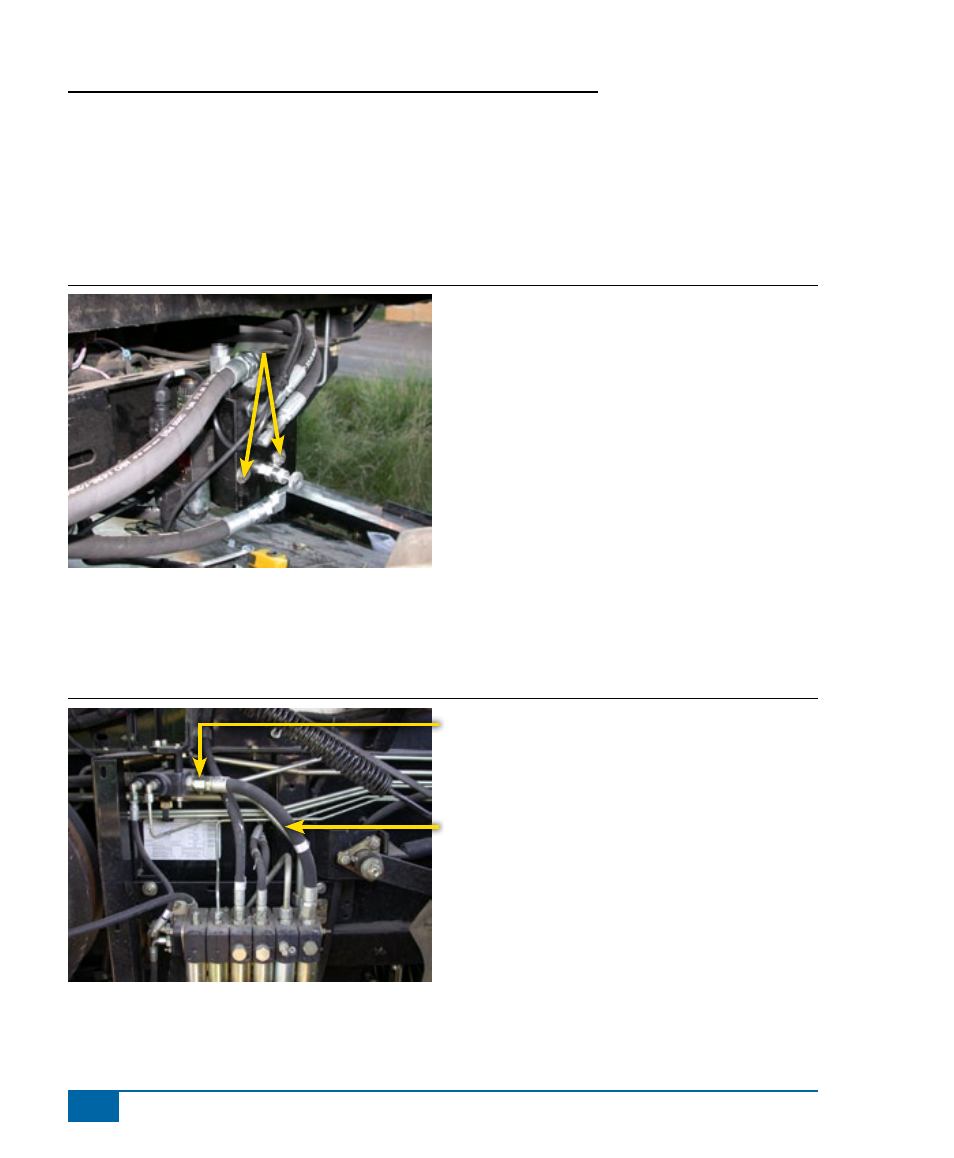

Figure 1-5: Mount FieldPilot Valve
3. discard existing excess FlOw hOse
Locate the existing hose that runs from the Excess Flow (EF) port of the Priority Valve to the hydraulic valve
stack and remove it. USE PLASTIC CAPS TO PREVENT EXCESS LEAKAGE FROM THE OPEN PORTS.
Figure 1-6: Discard Existing Excess Flow Hose
priority valve
excess Flow port
remove and discard
existing hose
B, G & H
