Fitting the tank sensor (extra equipment) – TeeJet LH 1600 User Manual
Page 7
F
ITTING
I
NSTRUCTIONS
LH 1600
LH A
GRO
7
FITTING THE TANK SENSOR (EXTRA EQUIPMENT)

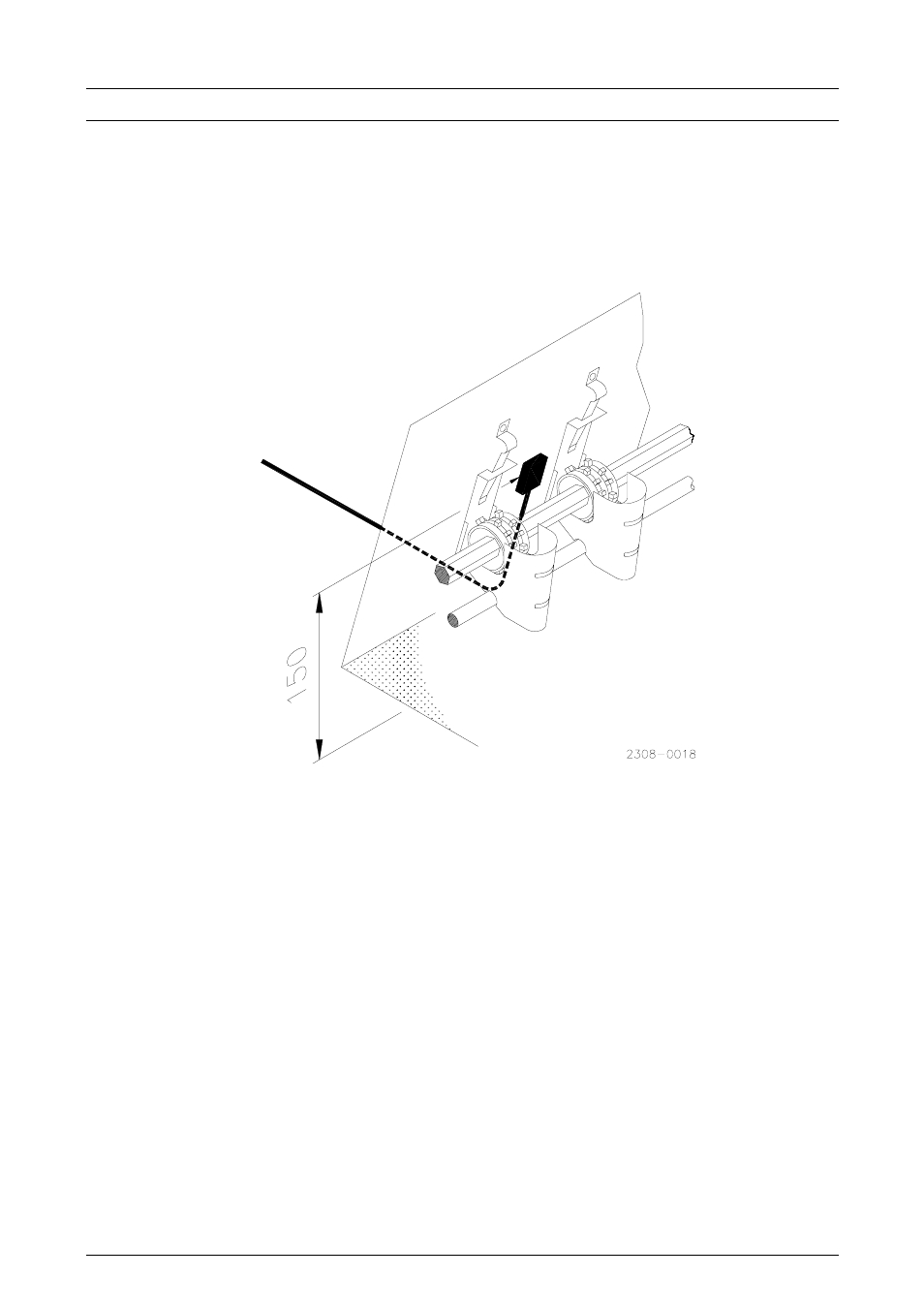

Mount the tank sensor app. 150 mm over the bottom of the hopper between the
uttermost seed chamber in one of the sides.
Drill a hole the size of which suits for the sensor. Screw it direct into the plate (do
not thighten too hard).
