F ITTING I NSTRUCTIONS LH 1600
LH A GRO 5
FITTING THE IMPLEMENT SENSOR
Mount the implement sensor so that it will register each time the drill is lifted
(magnet and sensor must face each other for min. 2-3 seconds).
Dependent on machine type and equipment there are various possibilities, say
marker change, marker cylinder, lift cylinder etc.

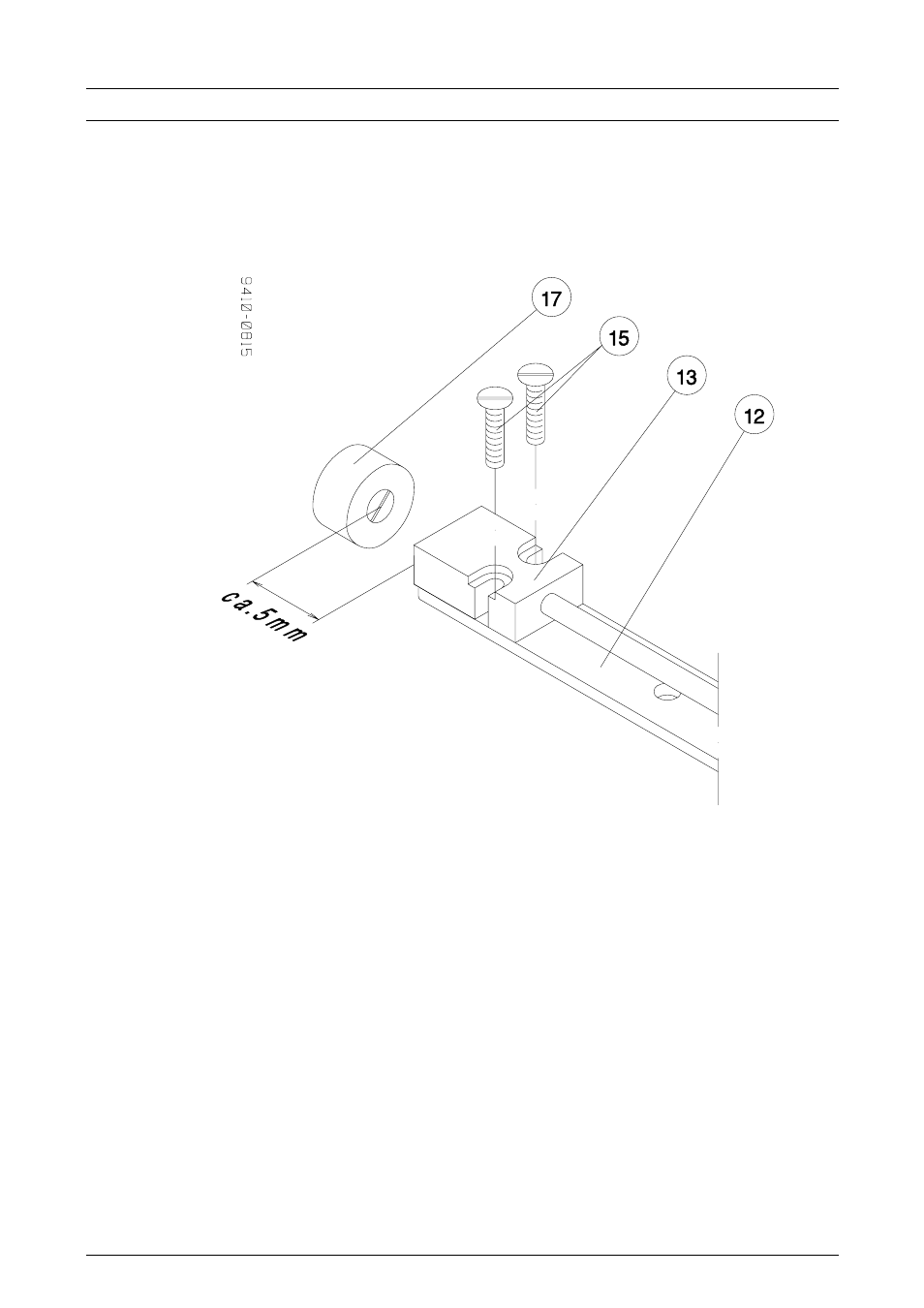

• The magnet can be glued on with suitable glue (Pos. 17).
• Do not thighten the screws (pos. 15) too hard.
• Relieve the sensor cable (pos. 12 - 13) with a cable strip.
