F ITTING I NSTRUCTIONS LH 1600
LH A GRO 3
FITTING THE MONITOR IN THE TRACTOR

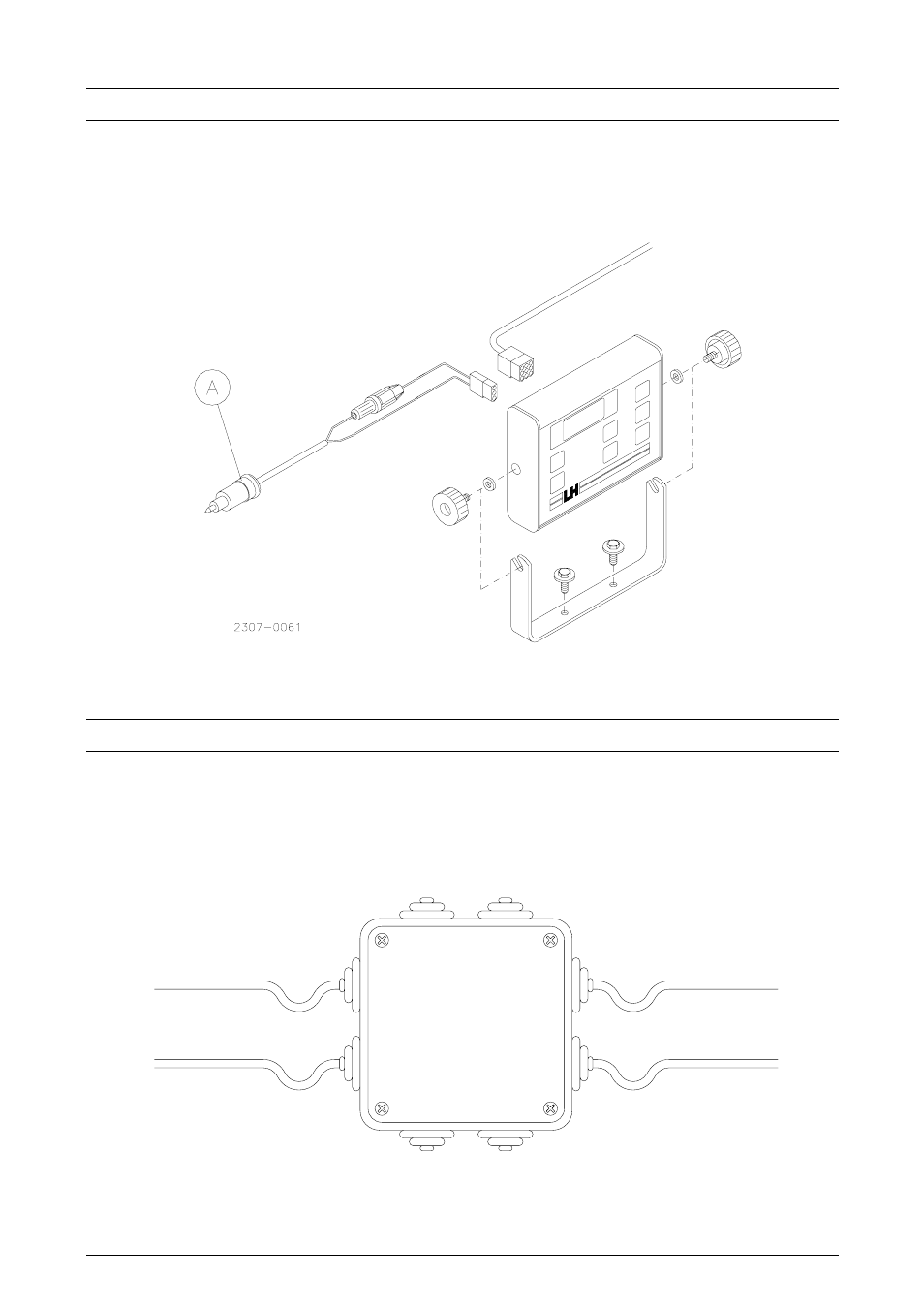

Mount the monitor in the cab within reach of the driver. Connect the monitor to the
12 V of the tractor via the 2-pole power plug A (fig. 1).
Fig. 1
FITTING THE JUNCTION BOX
Mount the junction box right in front on the drill. Mount it as protected as possible.
When the cables later are to connect in the box the cable must be long enough to
make a curve to ensure that water drips off and not runs into the junction box.
(Fig. 2)
Fig. 2
