TeeJet LH 965 - Manual (Page 11)

LH 965 O PERATORS MANUAL
LH A GRO 11
ENCODE

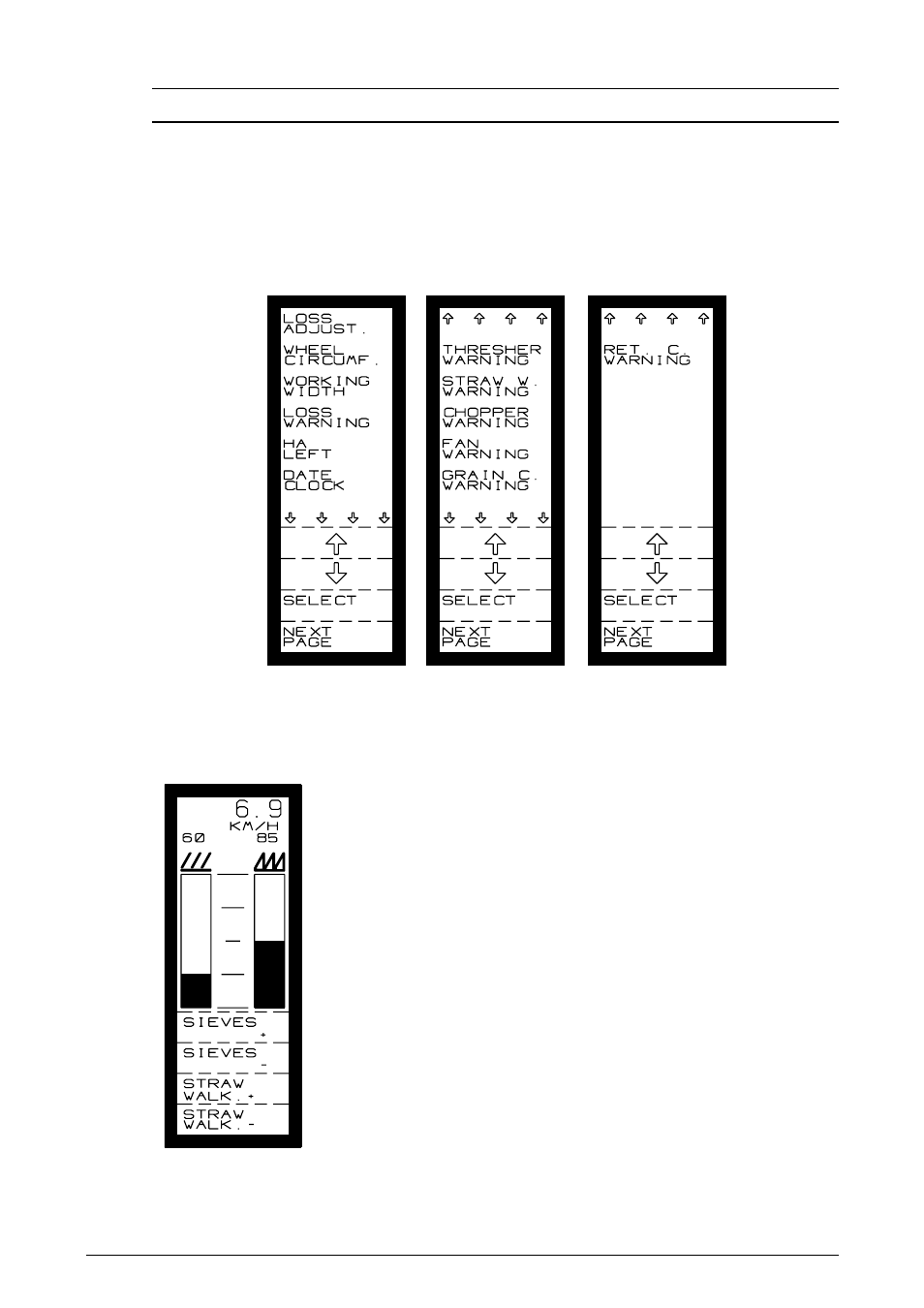

When having selected this function set the following encode options appear. The
encode procedure of the individual values will be described later.
When you want to make an encodement, the cursor (the dark bar) is set on the
required function by using the arrow keys and then press SELECT.
Press the NEXT PAGE key to reach the next “page” (reading).
LOSS ADJUST
This function is used to adjust the grain loss to a
correct level (50% of max. deflection). The
adjustment is to made while driving. First a normal
adjustment of the combiner is made. When the
maximum speed with an acceptable grain loss has
been reached the reading is set at this speed by
using the function keys.
Above each of the bars there is a counter so that you
can write down the basic setting for each cereal. This
will ease the setting when changing from one cereal
into another. However, the setting should be checked
in connection with any cereal change.
