USER INTERFACE
User Interface allows the operator to select the system virtual terminal (VT) and ECU identification number.

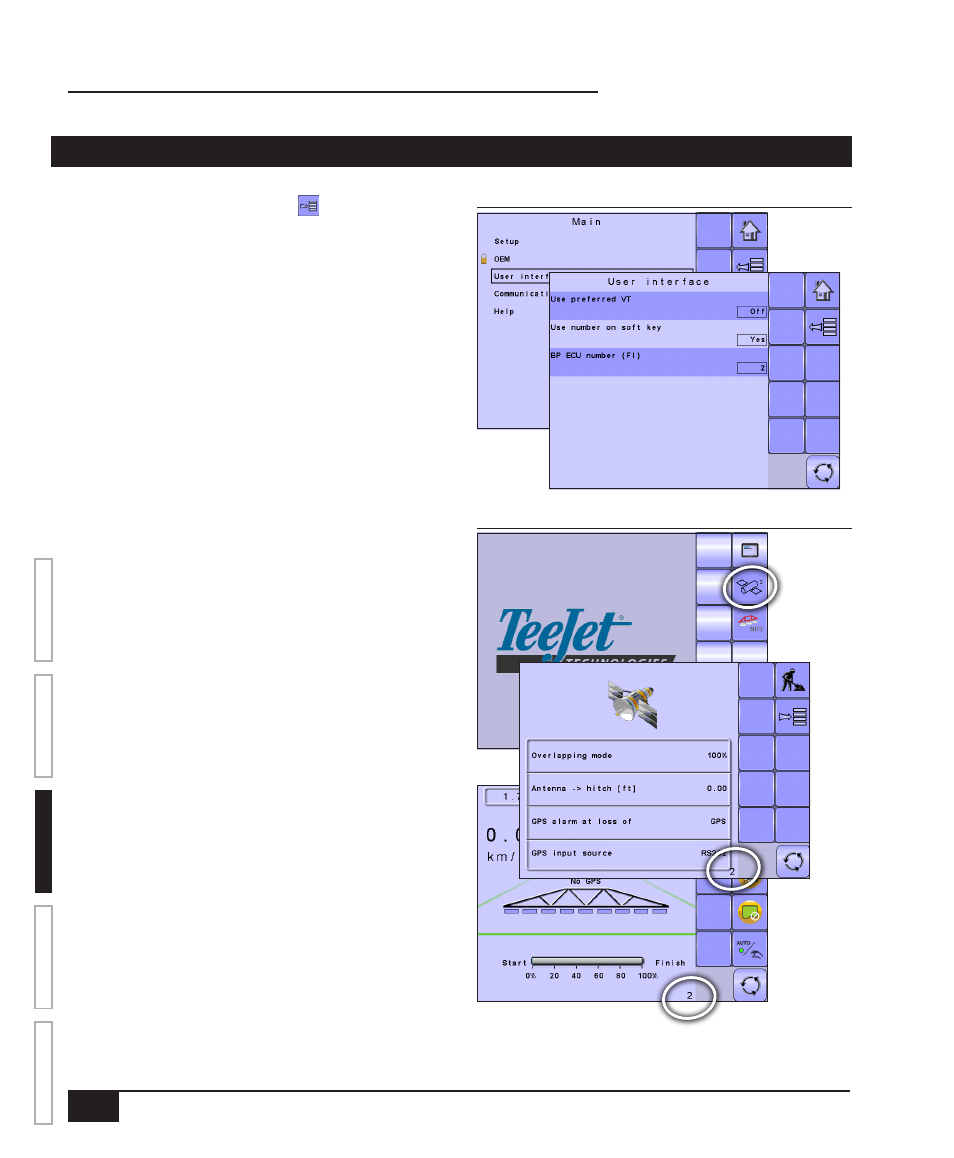

Figure 3-12: User Interface
Figure 3-13: BoomPilot ECU Number
1. From the Main Setup Screen , select USER
INTERFACE.
Use Preferred VT
Use Preferred VT sets the virtual terminal preference to
either on or off. If “On” is selected, the preferred VT will
be used. If “Off” is selected, the system will arbitrarily
select which VT to use (if more than one VT is available
on the ISOBUS CAN).
• To set the Use Preferred VT mode, select an option
from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
NOTE: This should always be set to "off" unless another
VT is on the CAN bus.
Show Number on Soft Key
Show Number on Soft Key establishes if a user assigned
identification number will be visible on the Master Screen,
Home Screen and Operation Screen.
• To set the Soft Key Number mode, select an option
from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
NOTE: Typically used only if more than one (1) BoomPilot
ECU is on the CAN bus.
BoomPilot ECU Number (FI)
BP ECU Number is the identification number referring
specifically to the BoomPilot ECU.
• To set the BoomPilot ECU Number, use the number
pad or slide bar.
