SETUP
Setup configures the GPS settings and Machine settings.

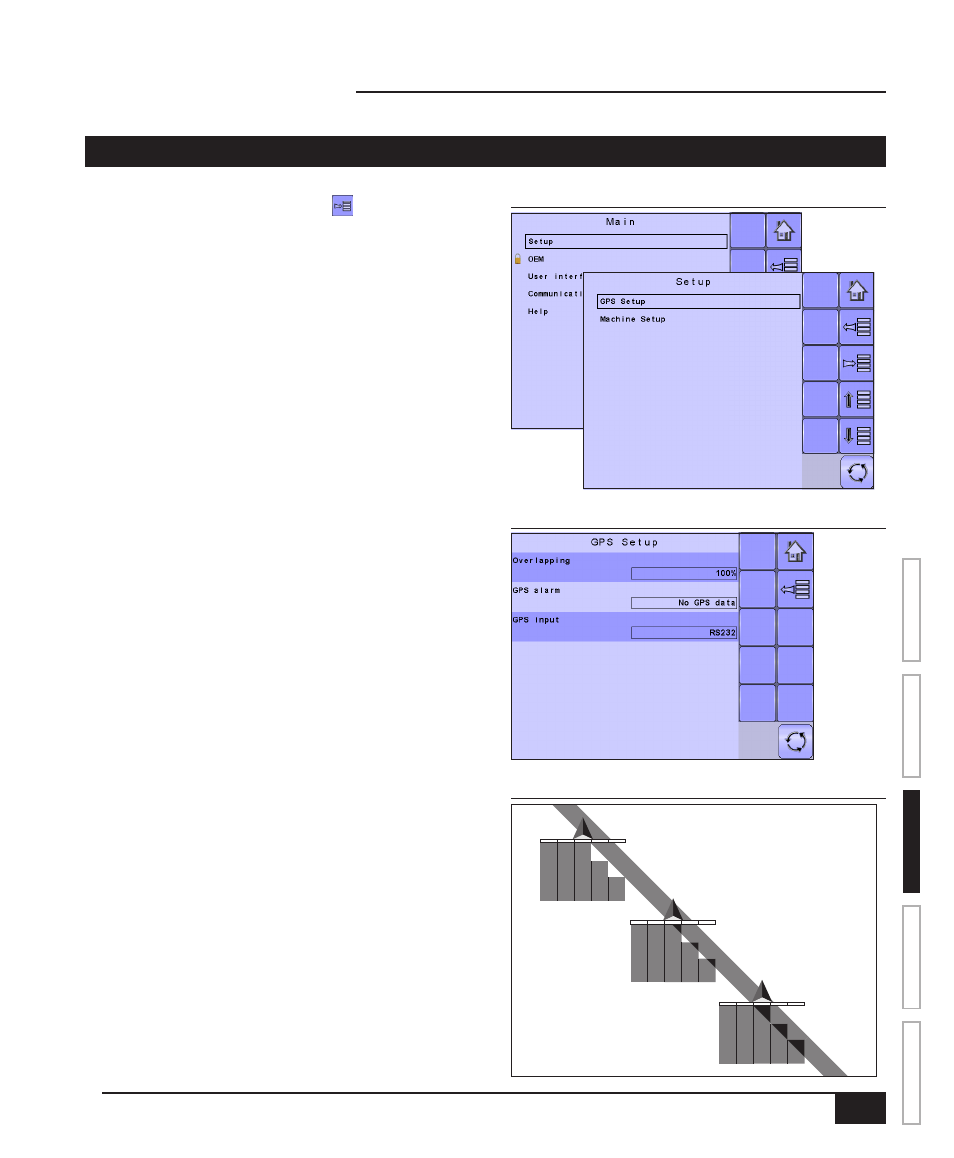

Figure 3-4: Setup
Figure 3-5: GPS Setup
Figure 3-6: Overlapping
0 %
50 %
100 %
1. From the Main Setup Screen , select SETUP.
2. Select from:
►GPS Setup – used to establish the Overlapping
percentage, GPS Alarm and GPS Input
►Machine Setup – used to establish the delay
off and delay on time; front or back implement
mounting position; and distance from the boom and
the antenna to the mounting point
GPS Setup
GPS setup establishes the Overlapping percentage, GPS
Alarm and GPS Input.
Overlapping
Overlapping determines the amount of overlap allowed
when each boom section is turned on and off using
Automatic Boom Section Control. Select from 0%, 50% or
100%.
• To select the Overlapping percentage, select an
option from the drop down menu or use the UP/
DOWN ARROWS to highlight the option.
GPS Alarm
GPS Alarm determine if an alarm sounds when GPS or
DGPS is lost or if there are no GPS alarms.
• To select the GPS alarm type, select an option
from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
GPS Input
GPS Input determines if the GPS signal is through the
internal GPS or an external RS232 port.
• To select the GPS input type, select an option
from the drop down menu or use the UP/DOWN
ARROWS to highlight the option.
