Back Panel
14
3. Footswitch Input
Connecting an optional TC-Helicon Switch3 footswitch
here allows placement of Harmony-M on your
keyboard. The Switch3 footswitch controls A/B, Bypass and
On functions from left to right.This jack can also accept a
single button pedal for remote control of the On
footswitch. Functions that require holding the
footswitches, such as MIDI Setup mode, are not available
from the external footswitch.
4.
Outputs
These 1/4’ jacks supply the main output of Harmony-M
in stereo or mono. For more information on mono
operation see “External Mixing with Mono and Dry
Outputs” in the “For Advanced Users” section.
5. Mic Input
Plug an XLR-equipped microphone cable from your mic
into this jack.

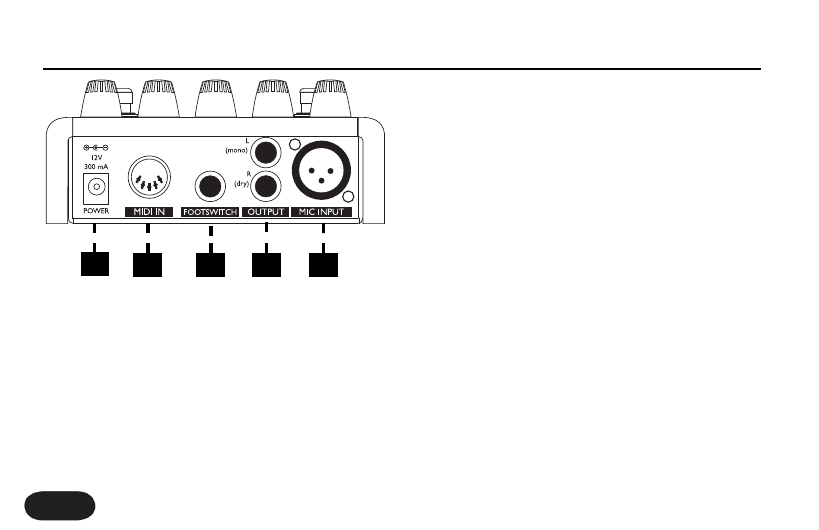

1 2 3 4 5
1. Power Input
Accepts the connector from the supplied DC power
adaptor. Connecting power to Harmony-M turns it on
immediately as there is no on/off switch on the product.
2. MIDI In
Plug a MIDI cable from your MIDI controller keyboard
or sequencer into this jack.
