Sonoma CGR30
Natural Gas Conversion Instructions
NG manifold.
18. Start by placing the new manifold into the grill
body with the control knob stems going outward
through control panel front. (See Fig. 19)
19. Reattach the flex lines on the right and left sides
of the grill to the new manifold using the
adjustable wrench. (See Fig 17 & 15, on
previous page)
20. Reattach the bezels to the manifold with the
single screw on each one. (See Fig. 14 & 13)
21. Reattach the control knobs onto the manifold
stems, making sure “OFF” is facing upwards.
(See Fig. 12)
22. Place burners and front heat shield back into the
grill body, making sure the burner tabs fall down-
ward through cutouts. (See Fig. 11 & 10)
23. Line up the burners with the valves on the mani-
fold, making sure they are level. (See Fig. 20 &
21)
24. Reattach the ignitors and their heat shields,
removed in step four (4), to the burners.
(See Fig. 4, on page 1)
25. Reattach the rear heat shield before attaching
the front heat shield to be sure the burners
remain over the valves. (See Fig. 22)
26. At the completion of the conversion, a leak test
should be performed on all fittings. See Use and
Care manual for leak testing procedure.
27. Proceed with reattaching the front heat shield
(See Fig. 6, 7 & 8 on page 2)
28. Reinstall the bottom and top flavor grids. (See
Fig. 1 & 2, on page 1)
29. Reinstall the cooking grates

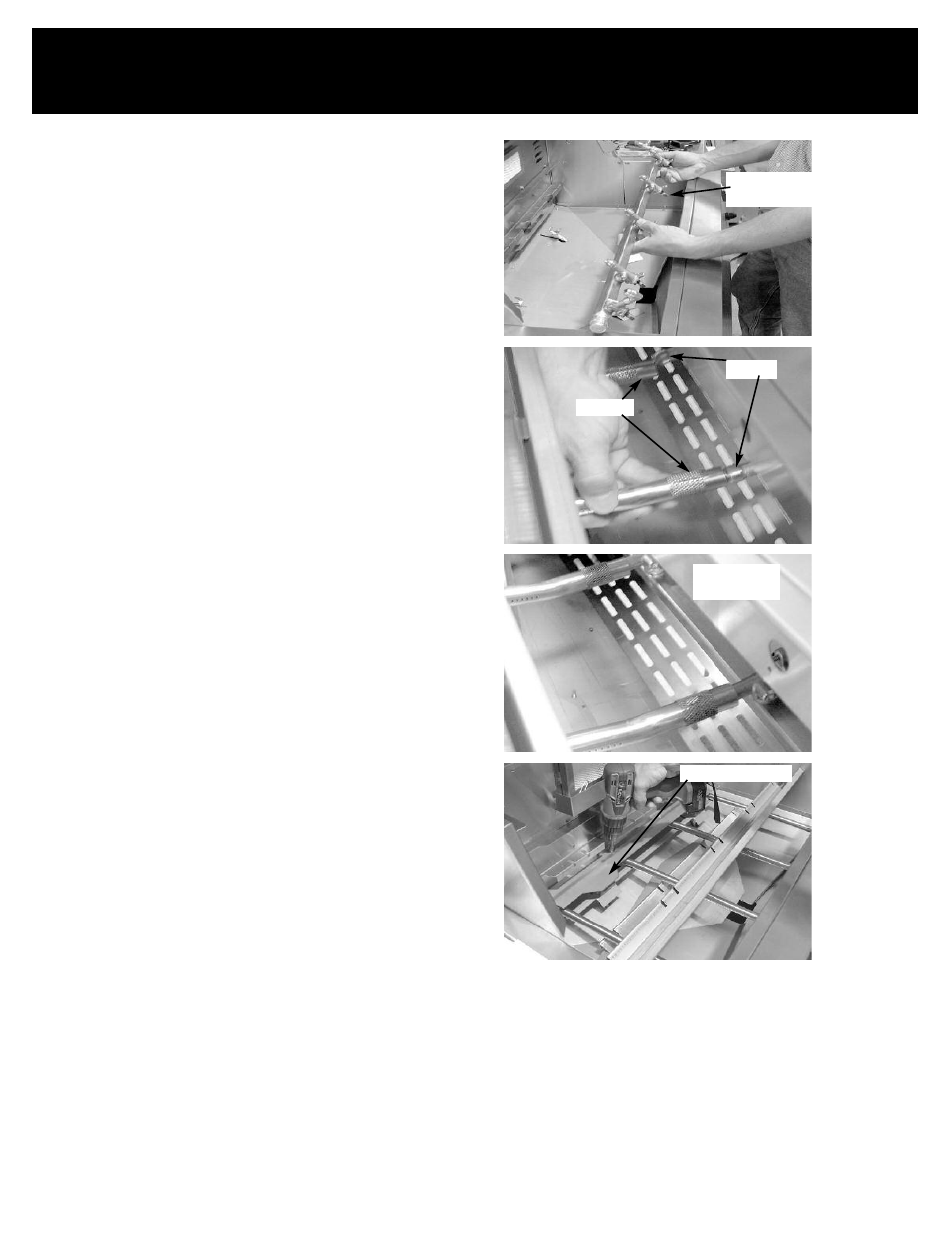

Fig 19
Fig 20
Fig 21
Fig 22
Control Knob
Stems
Valves
Burners
Burners fully
over valves
Rear Heat Shield
