Source Audio Soundblox Pro Poly-Mod Filter User Manual
Page 9

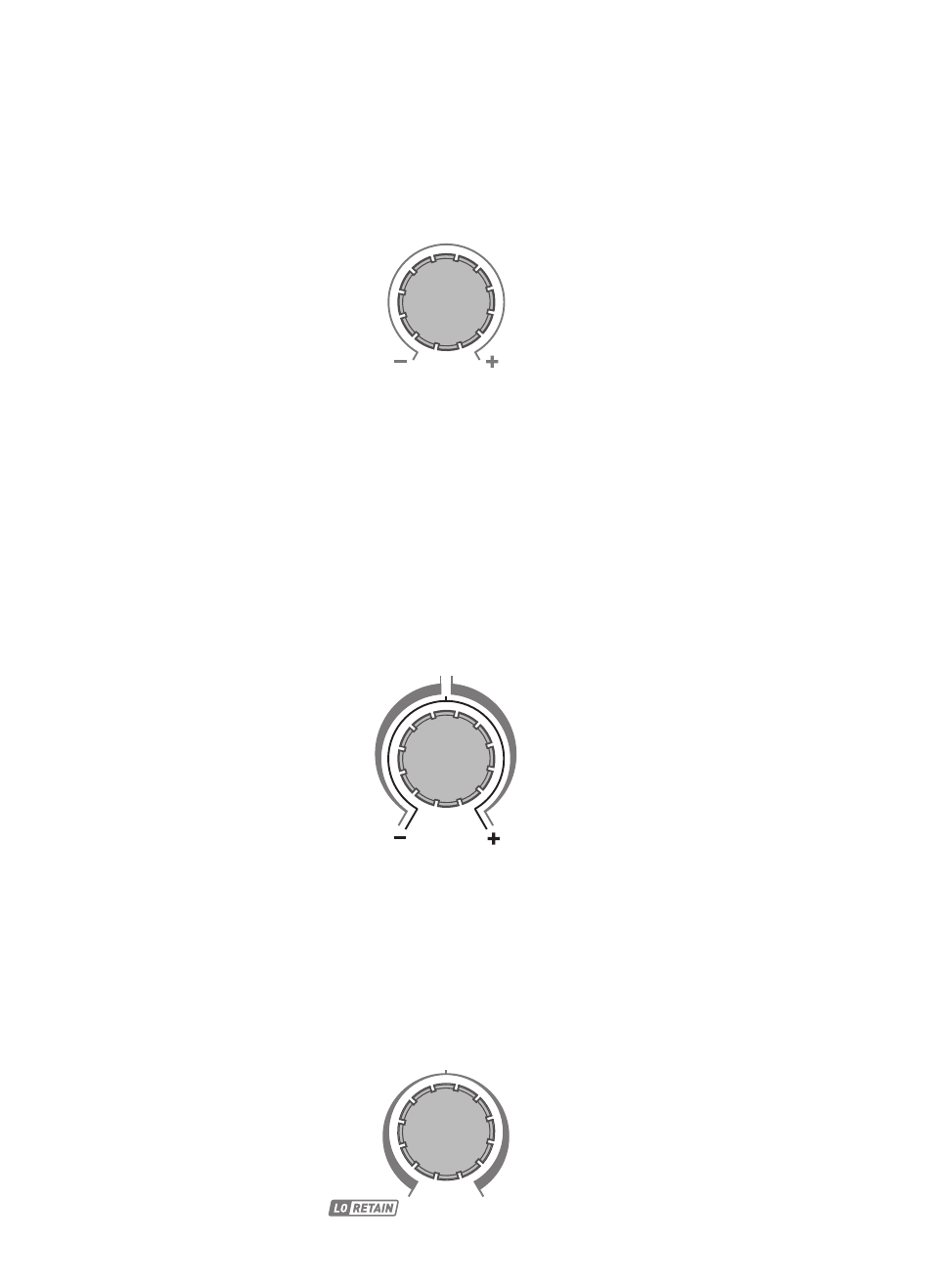

FREQUENCY
The Frequency knob sets the center frequency of the filter sweep in all
modulation modes. Turning the knob counterclockwise will result in the
filter moving over lower frequencies for a darker sound. Turning the knob
clockwise will result in the filter sweep moving over higher frequencies
for a brighter sound.
SPEED
The Speed knob controls the attack and decay time of the envelope
follower or the rate of the
LFO
. In Envelope mode, the range of the speed
control is divided into two parts. Turn the knob to the left of
12
o’clock to
adjust both the attack and decay times—as the knob is turned counter-
clockwise both will slow down equally. Turn the knob to the right of
12
o'clock and the attack will stay fixed at its fastest setting while the
decay time gets slower. In Hot Hand mode, this knob controls the sensitiv-
ity of the motion sensor and selects which axis of the sensor will be used.
MIX
The Mix knob adjusts the ratio of dry to wet signal. This knob is also
divided into two halves. Setting the Mix knob to
12
o’clock results in a
100%
dry signal. Turning the knob to the right of
12
o’clock increases the
amount of wet signal while decreasing the dry. The right most position
results in a 100% wet signal. Turning the Mix Knob left of
12
o’clock
increases the amount of wet signal using
LO-RETAIN
to preserve more
of the low-end frequencies.
Controls: Knobs | 9
FREQUENCY
SPEED
FAST
FAST
SLOW
SLOW
DECAY
X-AXIS
ATTACK
& DECAY
Y-AXIS
LFO
MIX
WET
DRY
WET
