10 | Controls: Equalizer
CONTROLS: EQUALIZER
One of the key features of the Poly-Mod Pro is the 7 -band graphic equal-
izer. Each band can be adjusted up or down in 1 dB steps from -12 dB
to +12 dB. The display shows 1 dB steps by lighting adjacent LEDs with
varying brightness. The factory default places the EQ after the MIX control
applying the EQ to both the wet and dry signals. Alternatively, a special
Backpage parameter (See Backpages instructions) offers the option
of placing the
EQ on just the wet signal. Another Backpage parameter
extends the EQ by an octave and allows access to the adjustment of one
additional high frequency band ( 8K ). The equalizer section has three
controls:
BAND SELECT LEFT and RIGHT
The two buttons on either side of the
EQ knob select the frequency band
to edit.
EQ knob
The equalizer knob changes the value of the selected band up or down in
1 dB steps.
Tip: You can quickly and easily zero the equalizer by pressing both left
and right band select buttons at the same time. The equalizer display
will reset to a default “flat” setting.

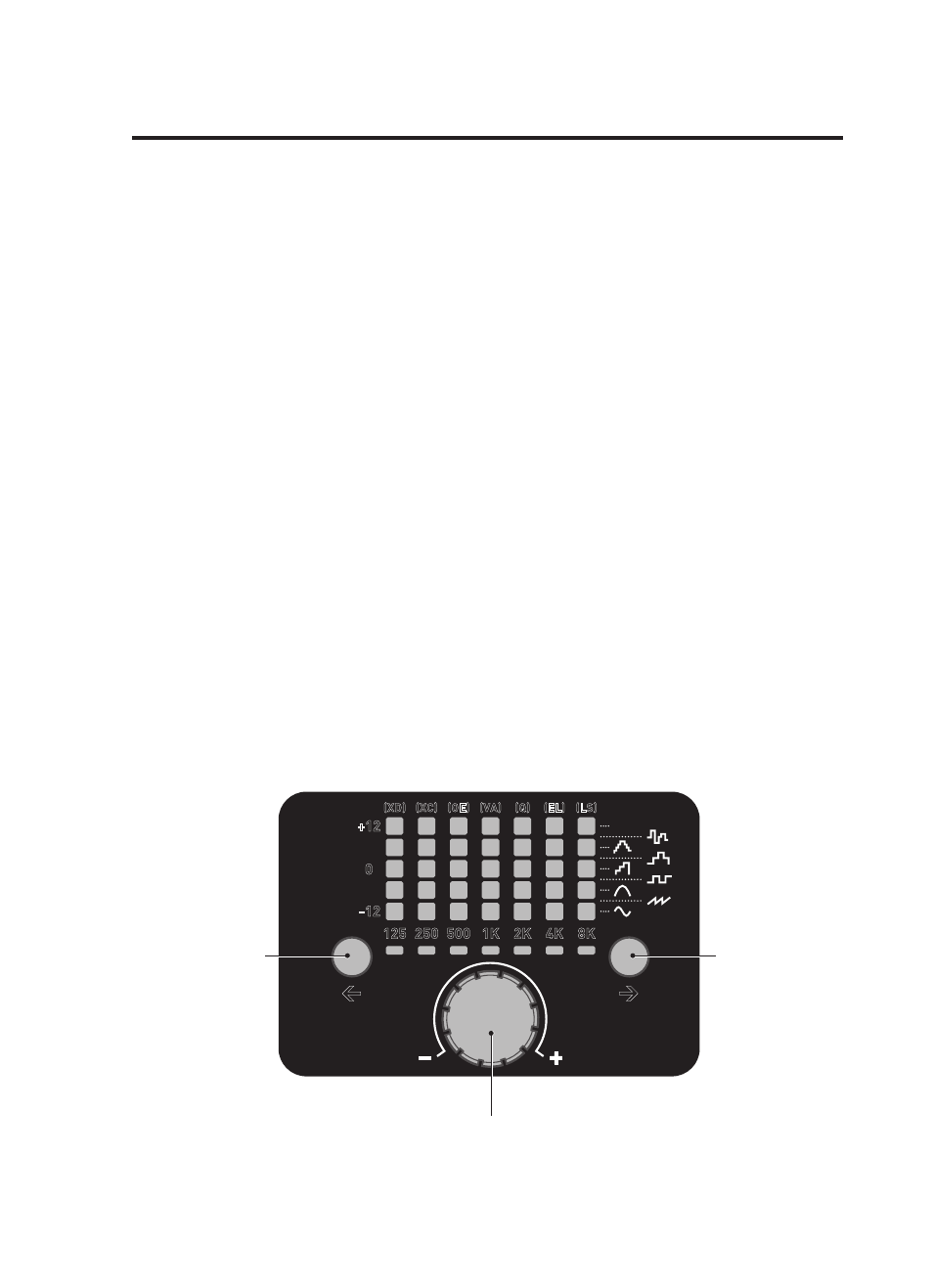

125 250 500 1K 2K
(XD) (XC) (OE) (VA) (Q) (EL) (LS)
4K 8K
+12
-12
0
< >
USER
Band Select Right Band Select Left
EQ Knob
