CONNECTIONS
GUITAR IN
Connect your guitar or other instrument here using a standard
MONO
¼" cable.
GUITAR OUT
Connect this to your amp, pedal, or other audio device.
EXPRESSION IN (optional)
Connect a passive expression pedal that uses a
TRS plug here. The
expression pedal is assignable to a variety of parameters.
SENSOR IN (optional)
Connect an optional Hot Hand sensor here, either wired or wireless.
SENSOR OUT (optional)
Use a Source Audio daisy-chain cable to connect this jack to the sensor
input of another pedal.
MIDI IN (optional)
MIDI program and continuous control input. Connect to a MIDI output
with a standard MIDI cable. Can also be used to sync the LFO with a MIDI
clock.
9V DC
Connect the included
9 Volt DC power supply here. Use of a non-Source
Audio power supply may cause damage and void the warranty.

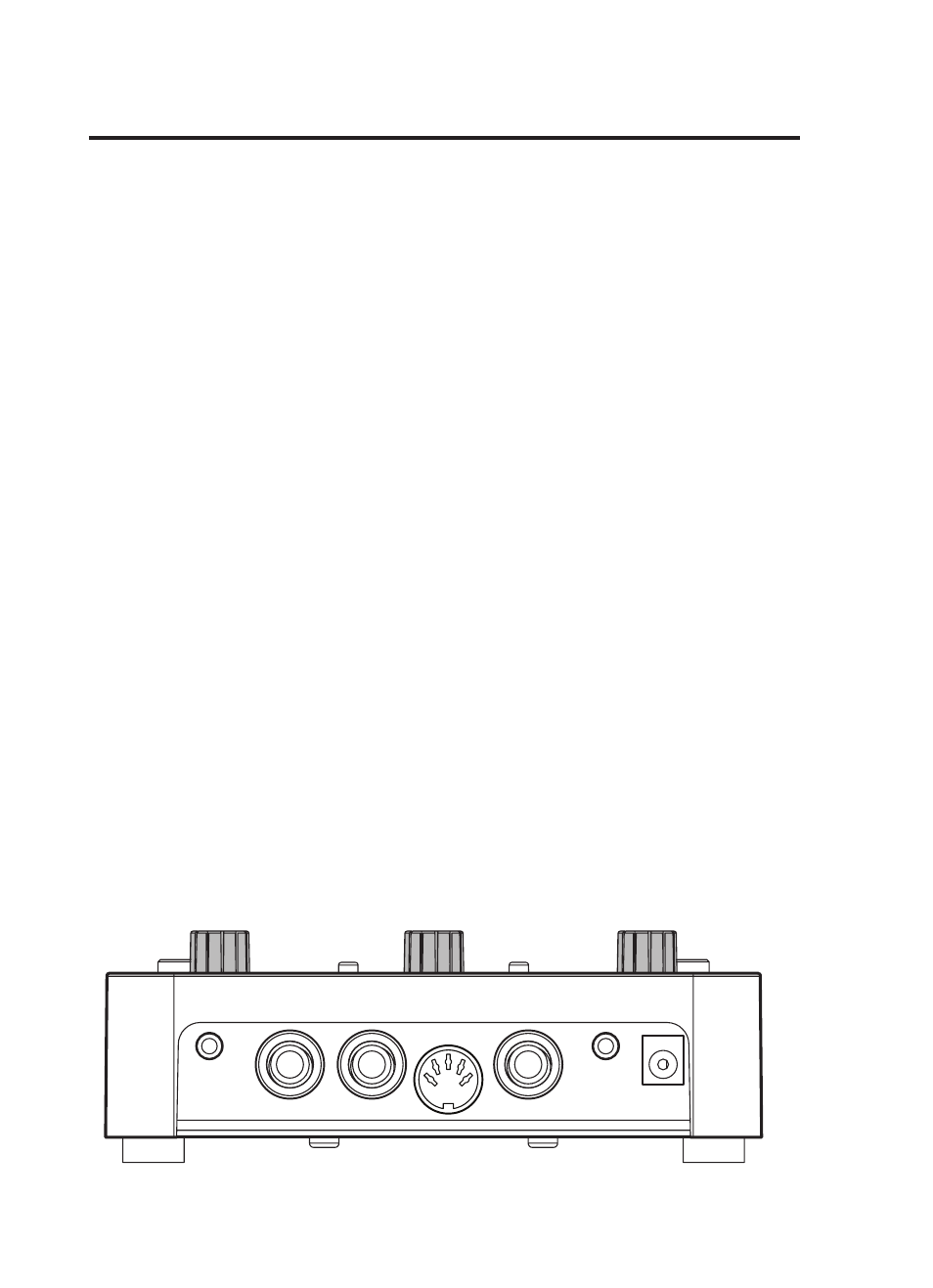

SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN
