QUICK START
1. POWER
To power the unit, connect the included
DC adapter power supply to
the 9V DC jack (A) on the back panel. Note: Using a different supply
could damage the unit and void the warranty.
2. GUITAR/AUDIO CONNECTIONS
Next, plug your guitar (or other instrument) into the jack labeled
GUITAR IN (B) via a standard ¼" cable. Connect your amp (or other audio
device) to the GUITAR OUT jack (C) , again with a standard ¼" cable.
Both input and output are mono signals.
3. SENSOR IN (optional)
To use your Poly-Mod Pro with a Hot Hand sensor, connect the sensor
to the SENSOR IN (D) jack and follow any instructions given with the
sensor
4. BRIEF KNOB AND PEDAL DESCRIPTIONS
See Controls section for more details.
A EFFECT: selects desired filter type
B SWEEP RANGE: adjusts the direction (up/down) and breadth of the
filter sweep or the depth of the LFO and Hot Hand modulation.
C FREQUENCY: adjusts the center frequency of the filter
4 | Quick Start
SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN

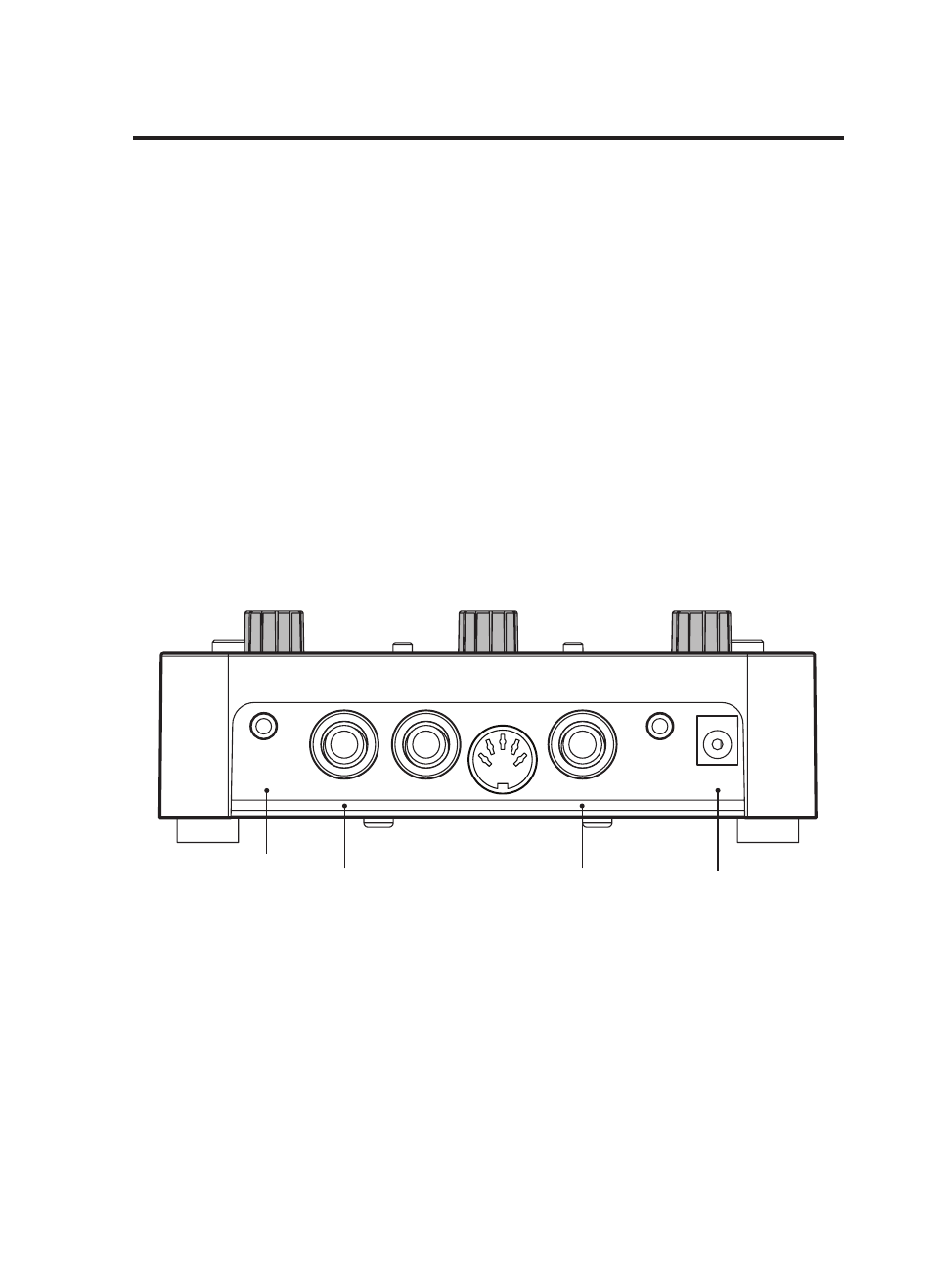

A C B
D
