CONTROLS: KNOBS

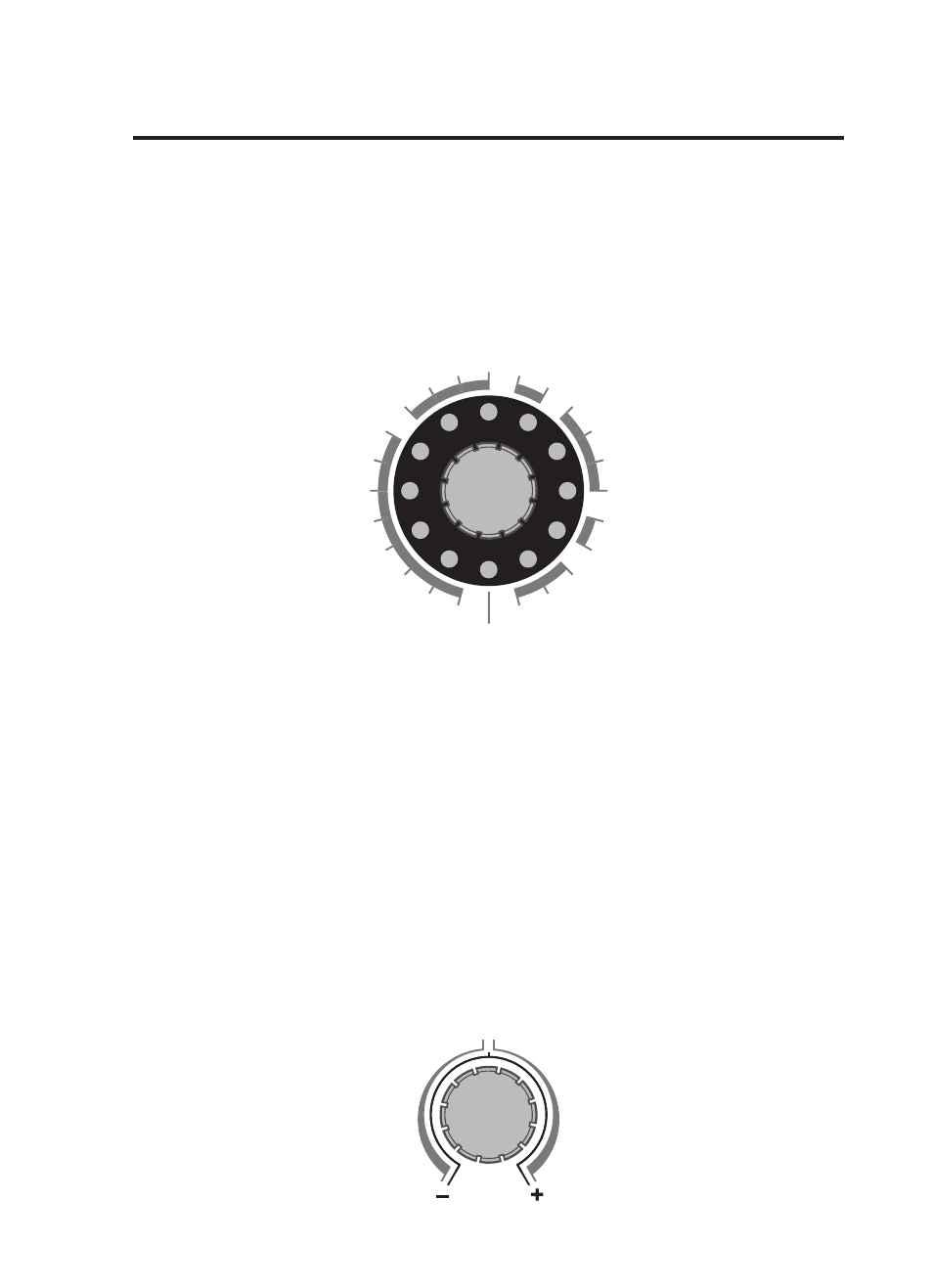

EFFECT (not labeled)
The effect knob selects which filter type will be used. There are
23 effect
positions ( 0 through 22 ) around the knob as well as a setting for EQ ONLY .
In the EQ ONLY mode, the envelope filter effect is bypassed but the
equalizer still applies. For information on the individual settings see the
Effect Types section.
SWEEP RANGE
In Envelope and Hot Hand modes, the sweep range knob controls the
direction and breadth of the filter sweep. The right side of the knob
(labeled
UP ) adjusts the breadth of the upward sweep, adding greater
range as you turn the knob clockwise. The left side of the knob (labeled
DOWN ) adjusts the breadth of the downward sweep, adding greater
range as you turn the knob counterclockwise. In LFO mode the knob also
controls the depth of the upward and downward sweep, but keep in mind
that symmetric
LFO shapes (i.e. sine, square, 6 and 8 step triangle, and
random) will sound the same in either sweep direction. Conversely,
non-symmetrical
LFO shapes (i.e. rising saw and step sequences) will
sound very different, depending on the direction of the sweep.
17
02
03
04
05
06
07
08
09
10 11 12
13
14
15
16
18
19
21
20
01
EQ ONLY
2 POLE LOW PASS
4 POLE LOW PASS
SINGLE PEAK
TRIPLE PEAK
PEAK & NOTCH
PHASERS
00 22
