1-Way Wireless RF Touchpanel Crestron ST-1700C

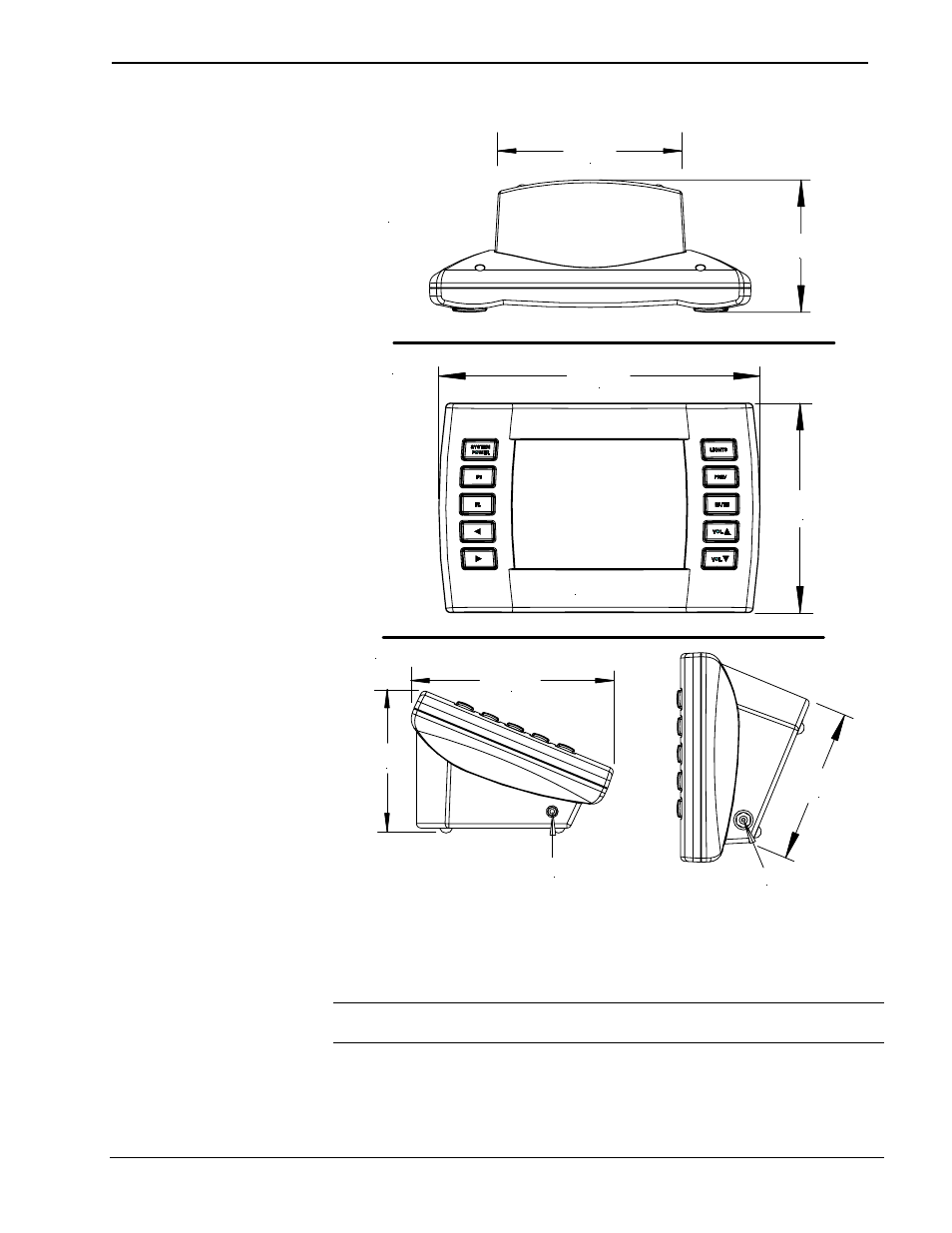

ST-1700C 1-Way Wireless RF Touchpanel Physical Views
-
CRESTRON
5.012 in
12.730 cm
3.596 in
9.134 cm
8.750 in
22.225 cm
5.700 in
14.478 cm
4.236 in
10.760 cm
Upload
connector
Power
connector
Top view
Front view
Side views
3.620 in
9.195 cm
5.430 in
13.793 cm
The battery compartment, located on the underside of the unit, holds one Crestron ST-
BTPN, rechargeable power pack. There are also four rubber feet on the underside of
the unit for stability and to prevent slippage.
WARNING: To avoid shock hazard and possible damage to the unit, do not use
touchpanel in rain or expose it to unnecessary moisture.
4 • 1-Way Wireless RF Touchpanel: ST-1700C Operations Guide – DOC. 6050
