1-Way Wireless RF Touchpanel Crestron ST-1700C
Uploading a VT Pro-e Project
A compiled VT Pro-e file has
the extension .vtz.
VT Pro-e is a Windows compatible software package for creating Crestron touchpanel
screen designs. Refer to “Programming with VisionTools™ Pro-e” on page 22 for
additional details. To upload a VT Pro-e project to the ST-1700C, complete the
following steps.
1. Make sure that “Hookup and Preparation” that begins on page 11 has
been performed.

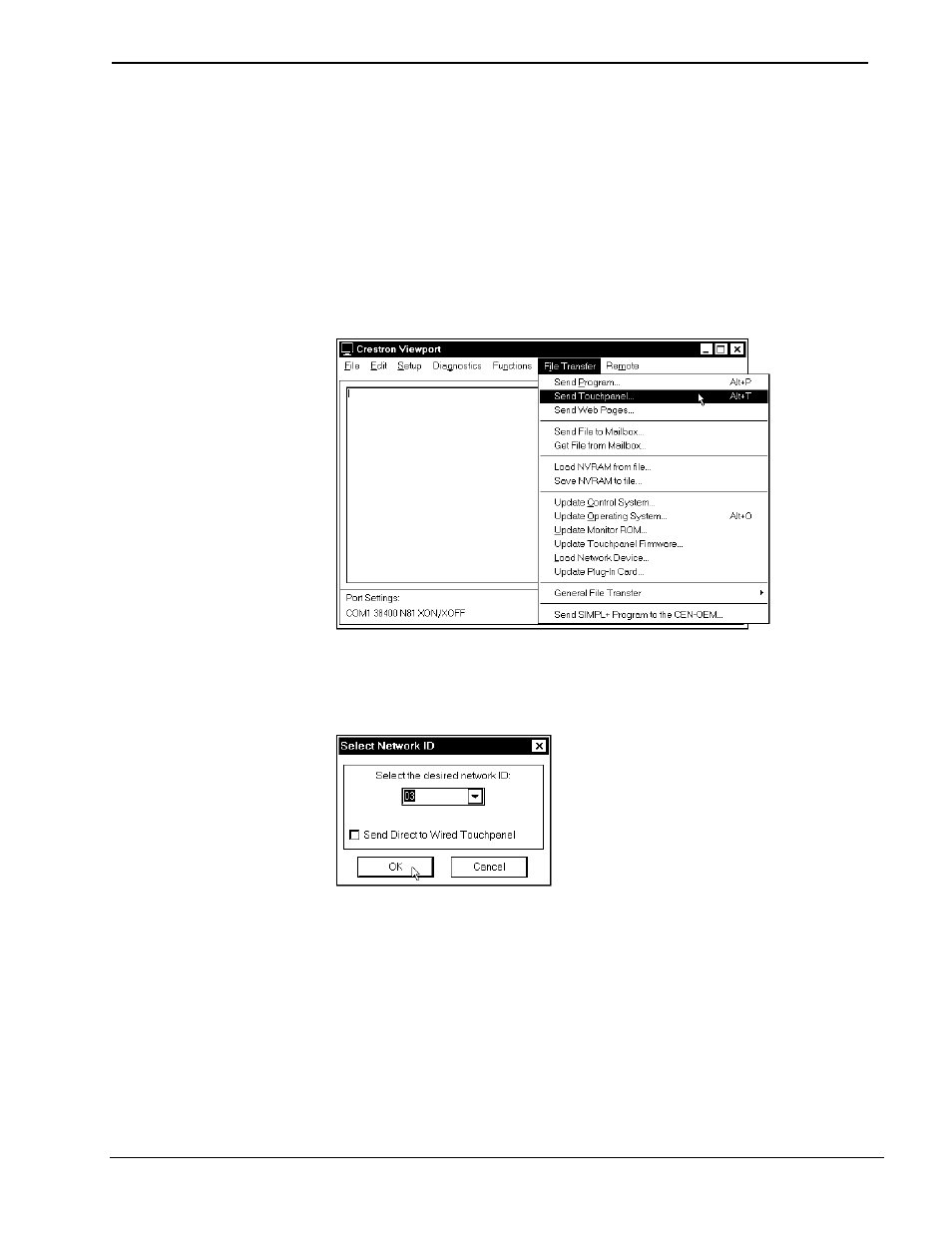

2. As shown below, select File Transfer | Send Touchpanel (alternatively,
depress Alt+T) from the Viewport menu.
Select Send Touchpanel
3. As shown below, select the NET ID of the ST-1700C and then click OK.
The “Touch Panel Transfer” window appears (refer to graphic on next
page).
“Select Network ID” Window
14 • 1-Way Wireless RF Touchpanel: ST-1700C Operations Guide – DOC. 6050
