Crestron ST-1700C 1-Way Wireless RF Touchpanel

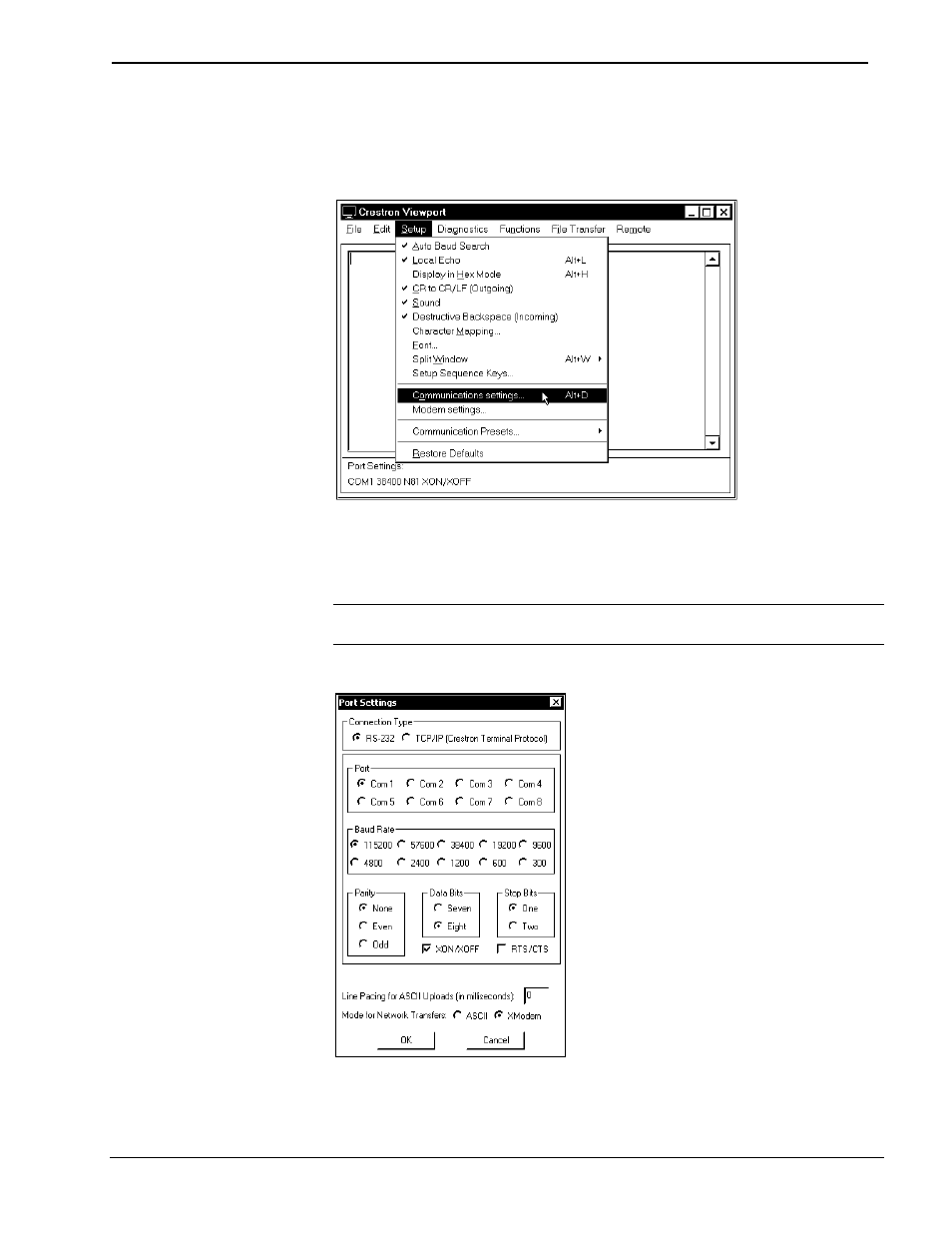

7. Refer to the figure below. From the Viewport menu, select Setup |
Communications settings (alternatively, depress Alt+D) to open the “Port
Settings” window.
Accessing the “Port Settings” Window
8. Select the RS-232 connection type. Verify the available COM is selected.
Verify that the baud rate is set to 115200 (2-series default), the parity is None,
the data bits is Eight, and the stop bits is One. Click the OK button to save
the settings and close the window.
NOTE: You may need to select a lower baud rate for larger files (38,400 is
recommended). Make sure Xmodem is selected from Mode for Network Transfers.
“Port Settings” Window
9. Proceed to “Uploading a VT Pro-e Project” on the next page or “Firmware
Upgrade” that begins on page 15 as appropriate.
Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C • 13
