Crestron ST-1700C 1-Way Wireless RF Touchpanel
Uploading and Upgrading
VT Pro-e is a Windows ® compatible software package for creating Crestron touchpanel
screen designs. Refer to “Programming with VisionTools ™ Pro-e” on page 22 for
additional details. To upload a VT Pro-e project (.vtz file) or upgrade the firmware (.csf
file) of the ST-1700C, a local PC that contains the Crestron Viewport (available via VT
Pro-e) is required. Refer to the following sections.
Hookup and Preparation
To prepare the ST-1700C for uploading or upgrading, refer to the figures below for
typical connection diagrams. Complete the steps provided on pages 12 and 13 to ensure
proper connection to the system.
NOTE: The cable components in the first figure are part of the SmarTouch
Programming Kit (ST-PK). If available, use these components.

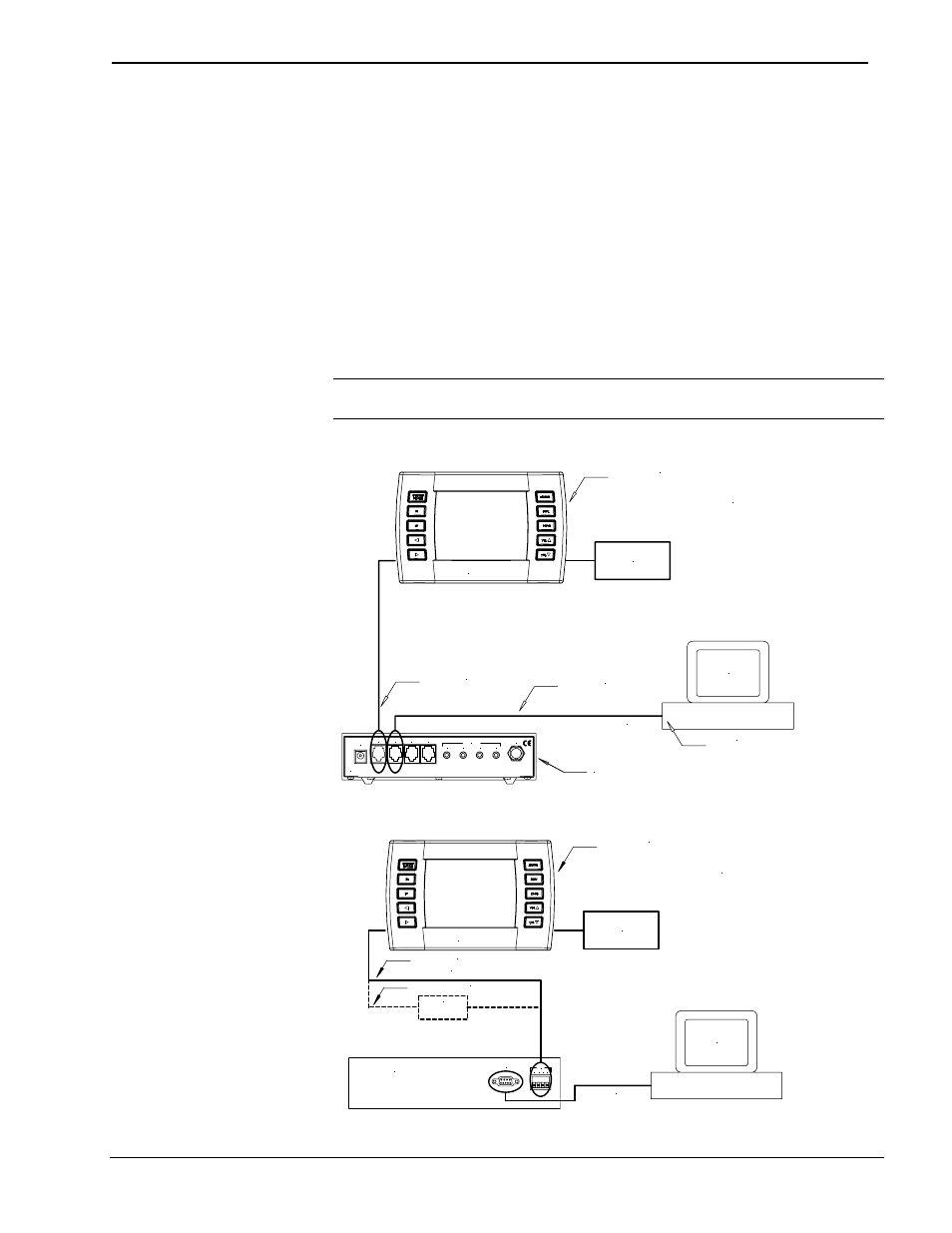

Typical Connection Diagram when Uploading a Project from the ST-CP
CA-15710 (PART OF ST-PK)
ST-CP
SERIAL PORT
CA-15717 (PART OF ST-PK)
USE ADAPTER
(PART OF ST-PK)
TOUCHPANEL
NOTE:
UNITS IN THIS ILLUSTRATION
ARE NOT DRAWN TO SCALE.
PC
EXTERNAL
POWER PACK
(CRESTRON MODEL
OR EQUIVALENT)
RF
CRESTRON ELECTRONICS INC. N.J. 07626
D B C
IR OUT
A
P C COMB COMA NET 12VDC
.5A
CRESTRON
Typical Connection Diagram when Uploading a Project from the PRO2 or equivalent
PC
TOUCHPANEL
AC POWER PACK
(CRESTRON MODEL
OR EQUIVALENT)
NOTE:
UNITS IN THIS ILLUSTRATION
ARE NOT DRAWN TO SCALE.
ST-CBL (Sold Separately)
NET
G 24 Z Y CONTROL
SYSTEM
COMPUTER
SERIAL PORT
CRESTRON
*CN-RJ11
(sold separately)
RJ11 (part of ST-PK, sold separately)
- or -
Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C • 11
