Crestron ST-1700C 1-Way Wireless RF Touchpanel

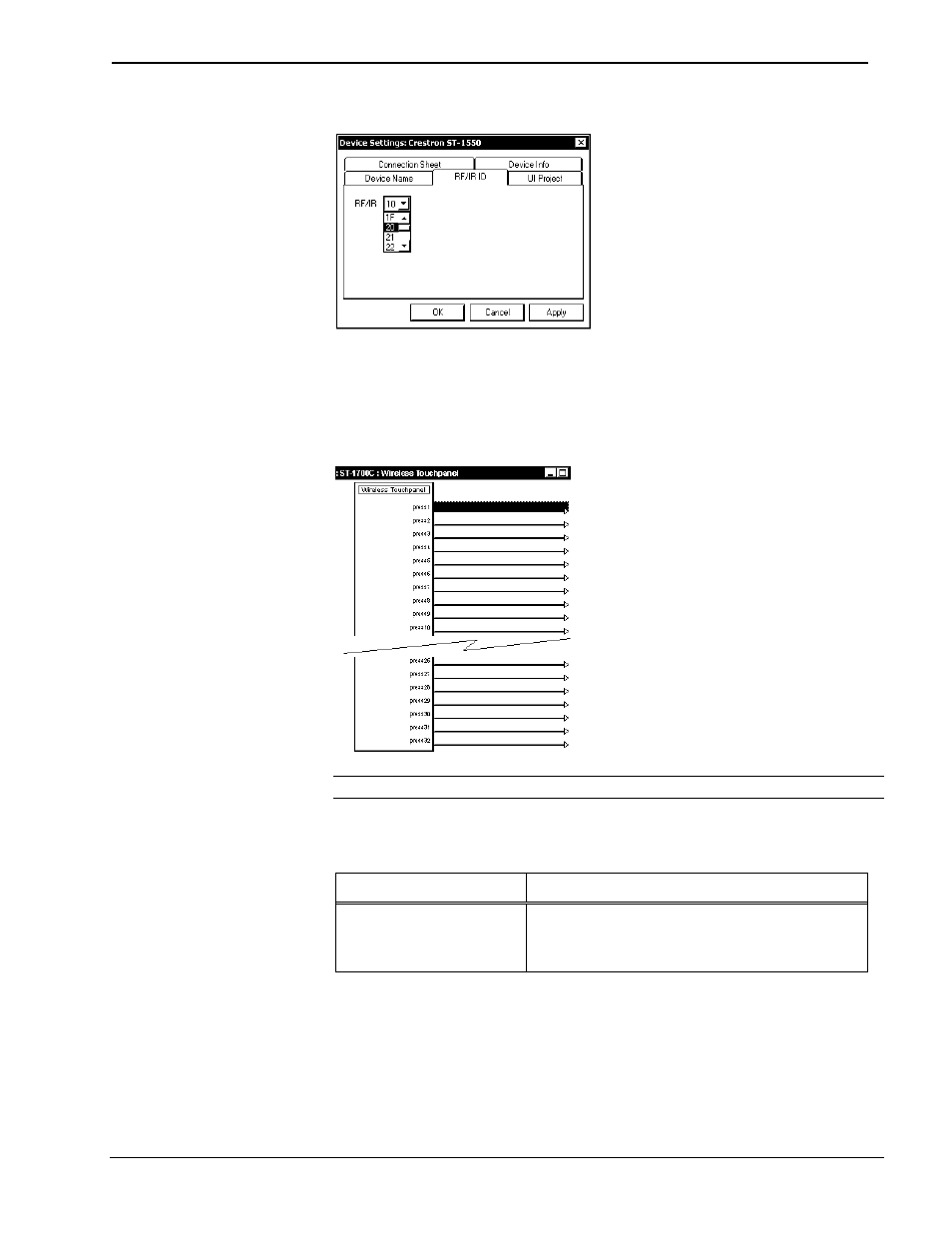

Touchpanel “Device Settings” Window
ST-1700C Symbol in Programming Manager
Programming Manager is where programmers “program” a Creston control system by
assigning signals to symbols. The following diagram shows the ST-1700C symbol in
the SIMPL Windows’ Programming Manager.
Detail View of the ST-1700C in SIMPL Windows’ Programming Manager
NOTE: Join numbers are expandable to 999.
The table below lists and gives functional descriptions for the touchpanel outputs.
Symbol Output Signal Descriptions
OUTPUT DESCRIPTION
press 1 through press 32* Notifies control system of button press (1 – 32*).
High/1 = button is being pressed
Low/0 = button is not being pressed
*Expandable to 999
Operations Guide – DOC. 6050 1-Way Wireless RF Touchpanel: ST-1700C • 21
