10.15 - Existing
vent as a chase
Follow all existing termination and
clearance requirements of section 10-
13.
The maximum allowable equivalent
vent and air intake lengths for this
venting arrangement are to be
determined from Section 10-4.
Use only approved venting materials
listed in Tables 10-1 and 10-2.
10 - INSTALLATION - Vent and combustion air

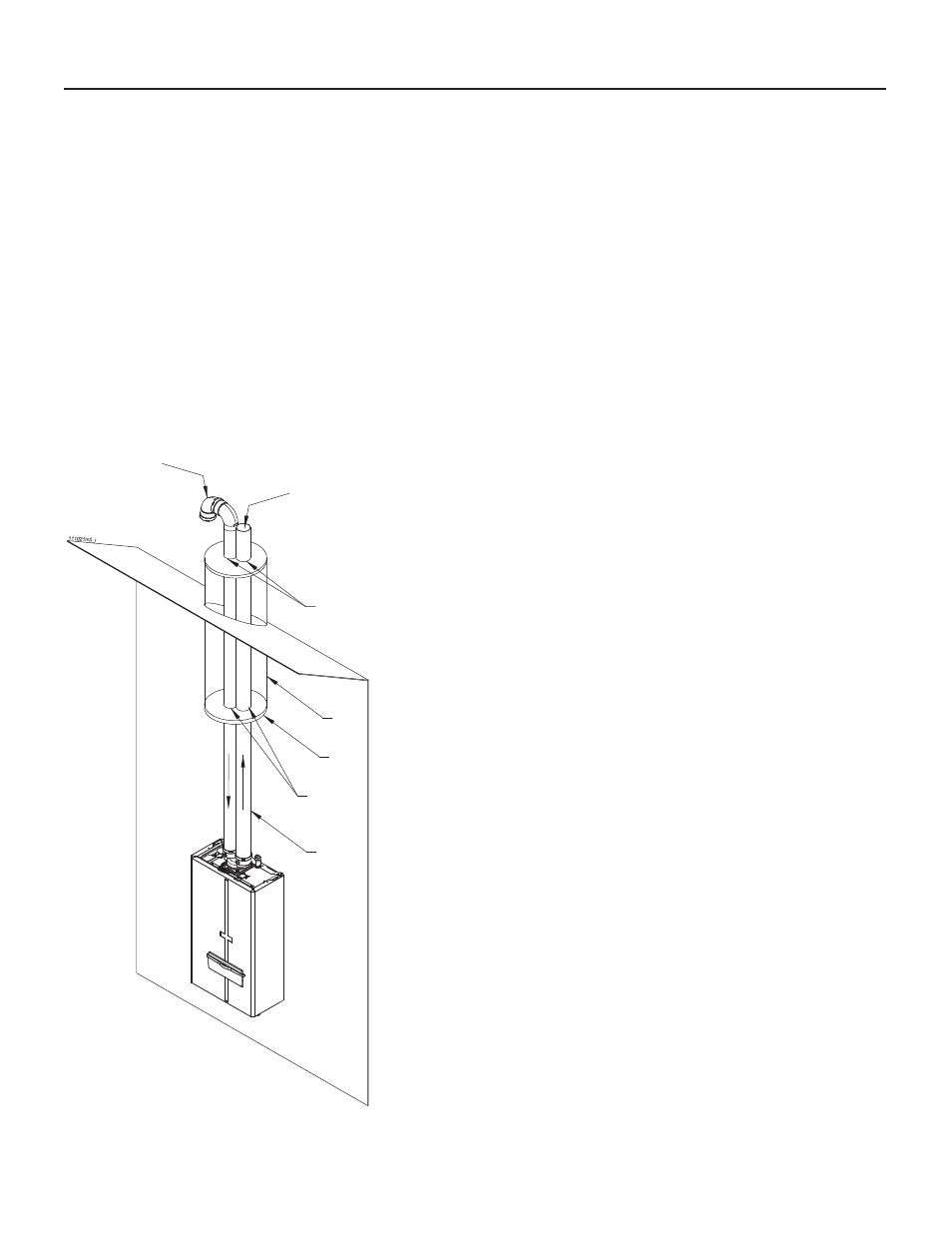

Figure 10-30 Alternate concentric
vertical venting (Example n°3)
Combustion
air intake
Flue exhaust
Seal
Existing
Sealed
cap
Seal
Flue outlet
