SilentKnight 5660 Silent Knight Software Suite - Manual (Page 12)

5660 Silent Knight Software Suite
8 P/N 151240
To add the S10=255 AT Command Setting:

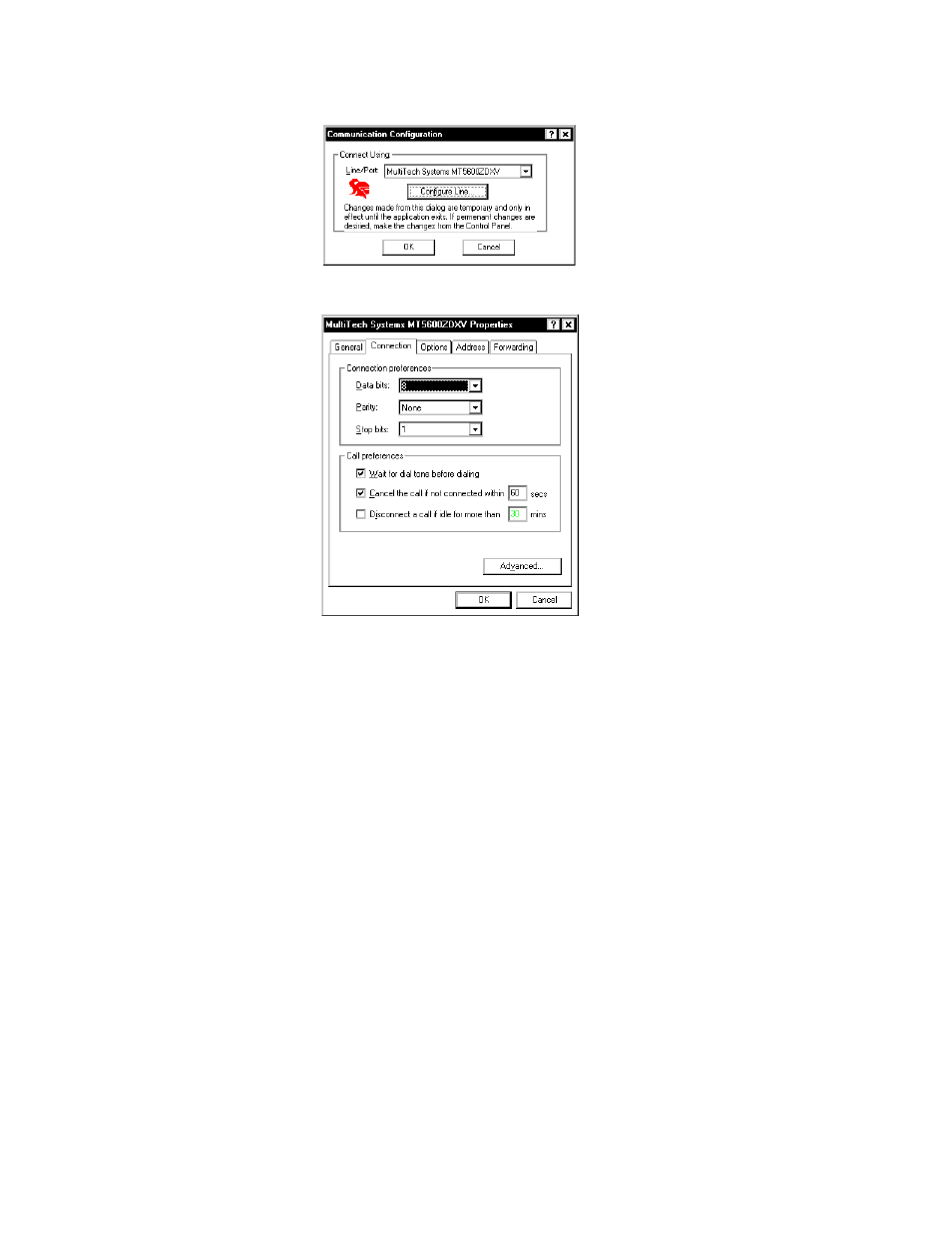

1. Click on Configure Line in the Communication Configuration dialog box.
2. Click on the Connection tab, then Advanced from the modem settings dialog box.
3. Type S10=255 in the Extra settings text box.
To remove the S10=255 AT Command Setting:
1. Click on the Windows Start button, then Settings, and finally Control Panel.
2. Double click on Modems. The Modems Properties dialog box appears.
3. Select the modem from the modem list and click on Properties .
4. Click on the Connection tab, then Advanced .
5. Delete S10=255 in the Extra settings text box and click OK .
