Bactrox Operations Manual 4

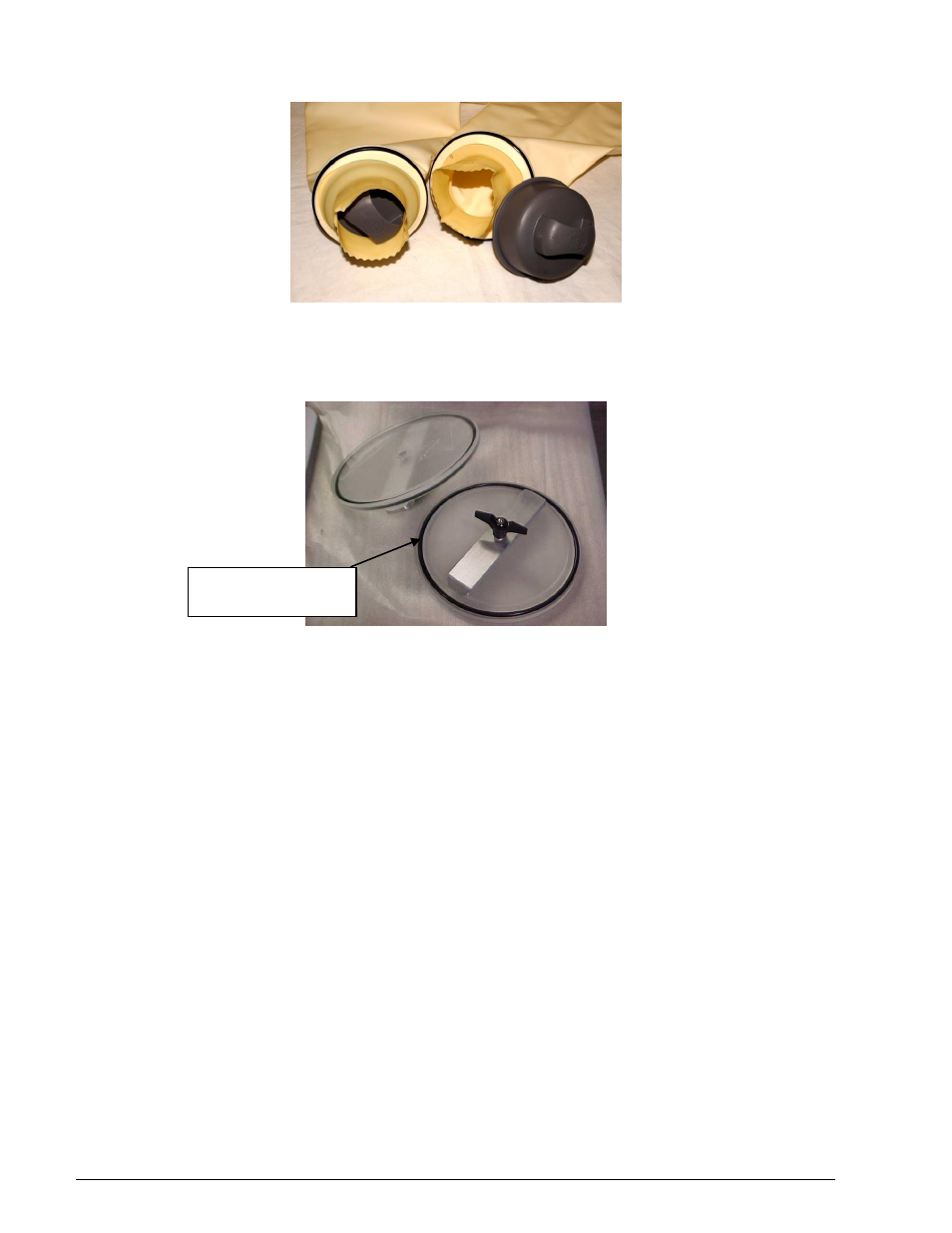

Figure 1: Sleeve/Cuff Assembly
The Sleeve/Cuff Assembly consists of a neoprene sleeve, a plastic cuff ring, O-Ring, and a soft rubber cuff. Unit
comes with Latex Gloves and Cuffs. Nitrile Gloves and Cuffs may be ordered from the Parts List. The assembly
allows gloveless chamber operation.
Figure 2: Arm port Doors
CAUTION: The Bactrox chambers have an efficient method of sealing the chamber by utilizing the Arm port
doors as shown in Figure 3. The tightening knob on the Arm port doors should be turned just until the knob
begins to “grab”. DO NOT OVER TIGHTEN. Damage can occur if too much force is placed on the Arm port door
assembly.
Replaceable Arm Port
door O-ring seals.
