OPERATION (CONTINUED)

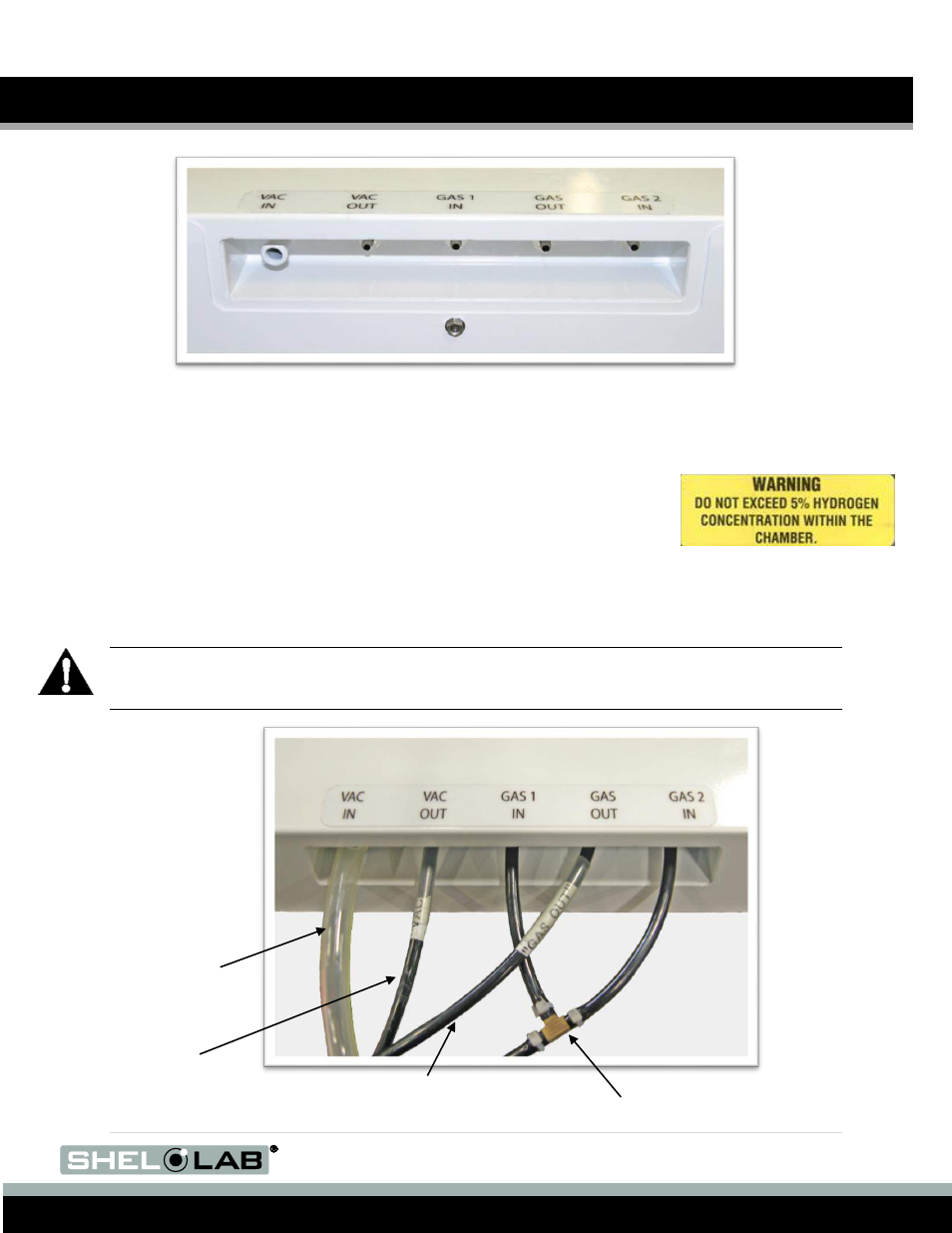

Figure 12: Gas and Vacuum Ports
S
ET UP THE
G
AS
S
UPPLY
in the Installation section on page 15 for Sheldon
Manufacturing’s recommended gas applications.
1. Install the gas regulator or regulators on the compressed gas cylinders
you will be using.
2. The regulators should be set to 15 to 20 psi. Please see
in the Operation Section for working with units
other than Pounds per Square Inch (page 46).
Warning
: Never exceed a 5% hydrogen concentration inside
the unit’
s chamber.
Avertissement:
La concentration d’
hydrogène ne doit pas dépasser
5%
dans la chambre anaérobie.
Figure 13: Hose
Connections
Figure 14: Hydrogen
Warning Label
To Vacuum Pump or
In-House Source
To Foot Pedal VAC
Port
To Foot Pedal
GAS Port
To AMG Cylinder
(Single Gas
Application)
