Page 6
Form P-OH/, P/N272437, Page 6
Model Fan Blade
P/N
Set Screw
"A"
OH95 Lau #F07H01729
125564 80 ± 10
2-7/8" (73mm)
OH140 Lau #F10 H8.7 22-36
98383 150 ± 15 3-1/2" (89mm)
OH190 Lau #F10 H8.7 22-36
98383 150 ± 15 3-1/2" (89mm)

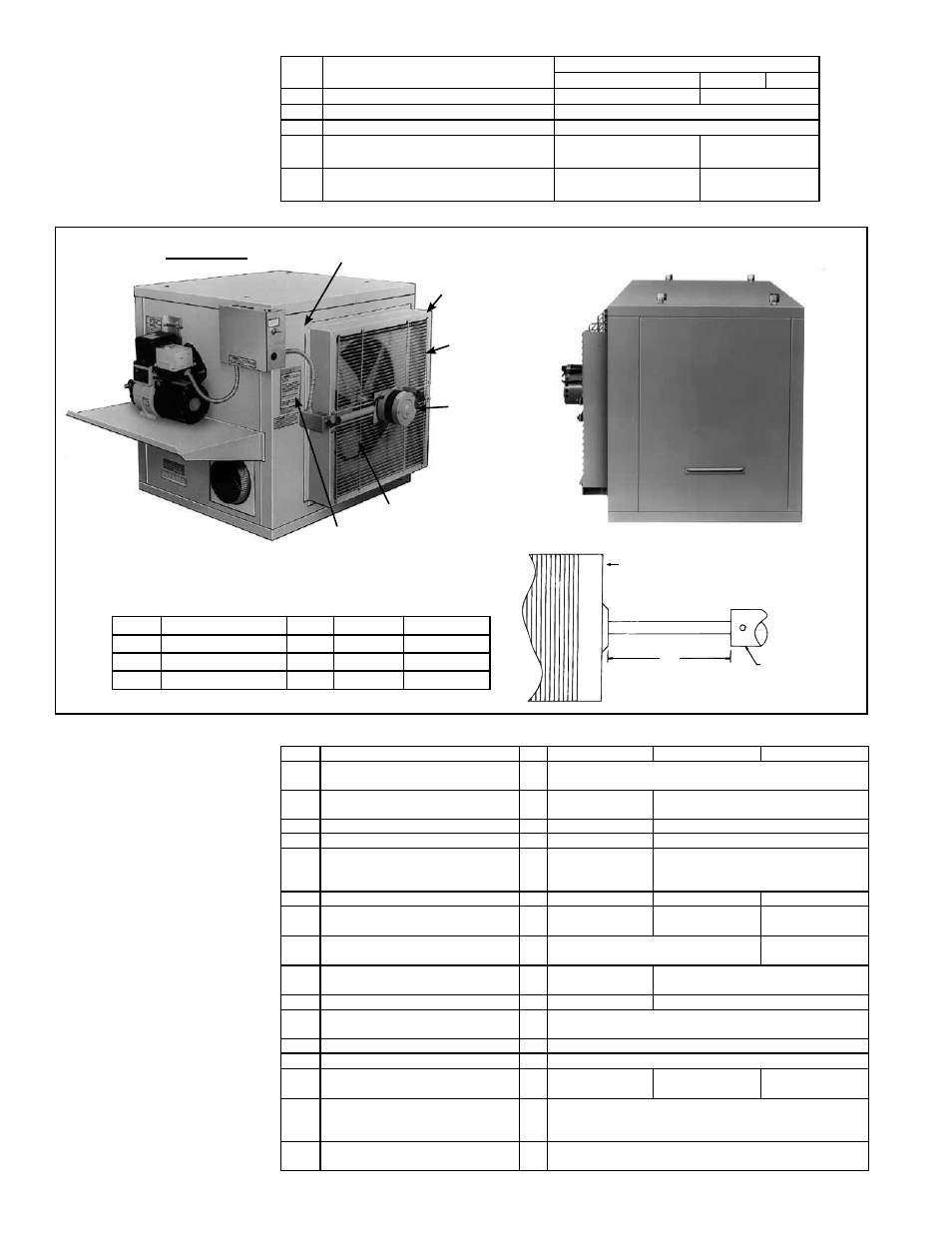

Model OH - Rear View
75
(Remove for access
to Code 25, page 3.)
83
84
82
81
80
Cabinet Parts and
Fan Components
for Model OH
Code Description
Size
95
140
190
80 Fan Panel (includes corner posts)
104744
104745
81 Fan Guard Mount Assembly
104823
82 Fan Guard Assembly
104818
83 Fan Blade Assembly (See diagram
below for
spacing.)
125564,
18"-33,
Lau #F0 7HO 1729
96383,
Lau #F20,
H8.7 22-36
,
84 Fan Motor
102380, 1/8HP
A.O.Smith 322P986
137044, 1/4 HP,
F48AE65A13
Fan Motor
A
Fan
Hub
Turning Box End of Model OH
15
Cabinet Parts and
Blower Components
for Model OB
Code Description
Qty
95
140
190
90 Corner Post Assembly (left rear
corner)
1
107166
91 Blower Post Assembly (right rear
corner)
1
107167
107168
92 Top Back Filler Panel
1
104795
104796
93 Bottom Back Filler Panel
1
104795
104797
94
Blower (including blower housing,
wheel, shaft, bearings, motor
mounting bracket)
1
100657, Lau
A12-9ACD
100658, Lau A15-11ACD
95 Blower Mounting Angle
2
100889
100889
100889
96 Blower Sheave (not illustrated)
1 116402, Browning
#AL-104 x 1"
116401, Browning
#AL-94 x 1"
116400, Browning
#AL-84 x 1"
97 Blower Motor
1
31273, 1/2 HP, Century #8-15917001 115860, 3/4 HP,
Century #F353
98 Motor Sheave (not illustrated)
1
7962, Browning
#1VL40-5/8"
13580, Browning #1VL34-5/8"
99 Motor Mounting Bracket
102533
102534
100 Motor Adjustment Bracket Assy
Package
44411
101 Belt Guard Assembly
1
193975
102 Blower Inlet Guard
1
102475
103 Belt (not illustrated)
1
6187, Browning
#4L520
65404, Browning
#A51
88558, Browning
#A50
104
Hardware Bag for Blower (includes
rubber feet and motor mounting
hardware)
64940
105 Blower Key, 1/4" sq x 1-1/4"
square
1
16099
