Reznor OH Parts Manuals - Manual (Page 4)

Form P-OH/, P/N272437, Page 4
Code 35 - Cad
Cell Detector
and Eye,
P/N 101932
Burner
Assembly
(*obsolete ignition
controller illustrated;
see Code 36 below)
31
34
*36
39
37
Burner - Models OH and OB
Code Description
Size
95 140 190
30 Burner Assy 115V (includes Codes 31-46) 207493 207494
31 Burner Assy Gasket, Beckett #3416 103420
32 Combustion Air Blower Wheel 41599
33 Electrode Assembly 59449
34 Transformer w/Gaskets & Electrode Connectors 220615
34A Electrode/Transformer Connectors only (spring-
type)
(2) 97033
35 Cad Cell Detector and Eye 123195
36 Ignition Controller 262700 (replaces 41604)
37 Burner Motor 41598
38 Coupling 41600
39A Burner Pump, 1-stage, Beckett 2460 131460
39B Burner Pump, 2-stage, Beckett 2583 41601
**40 Air Shutter 41592
**41 Air Band 41593
**42 Connector Tube Assembly 41602
**43 Air Tube 41607
**44 Flange 41595
45 Retention Head 45891 146467 50786
46 *** Nozzle,
Delavan
Units manufactured prior to 6/96
32437
0.85x80B
120068
1.25x90B
120069
1.65x90B
Units manufactured beginning
6/96
32437
0.85x80B
146816
1.25x70B
146815
1.35x70B

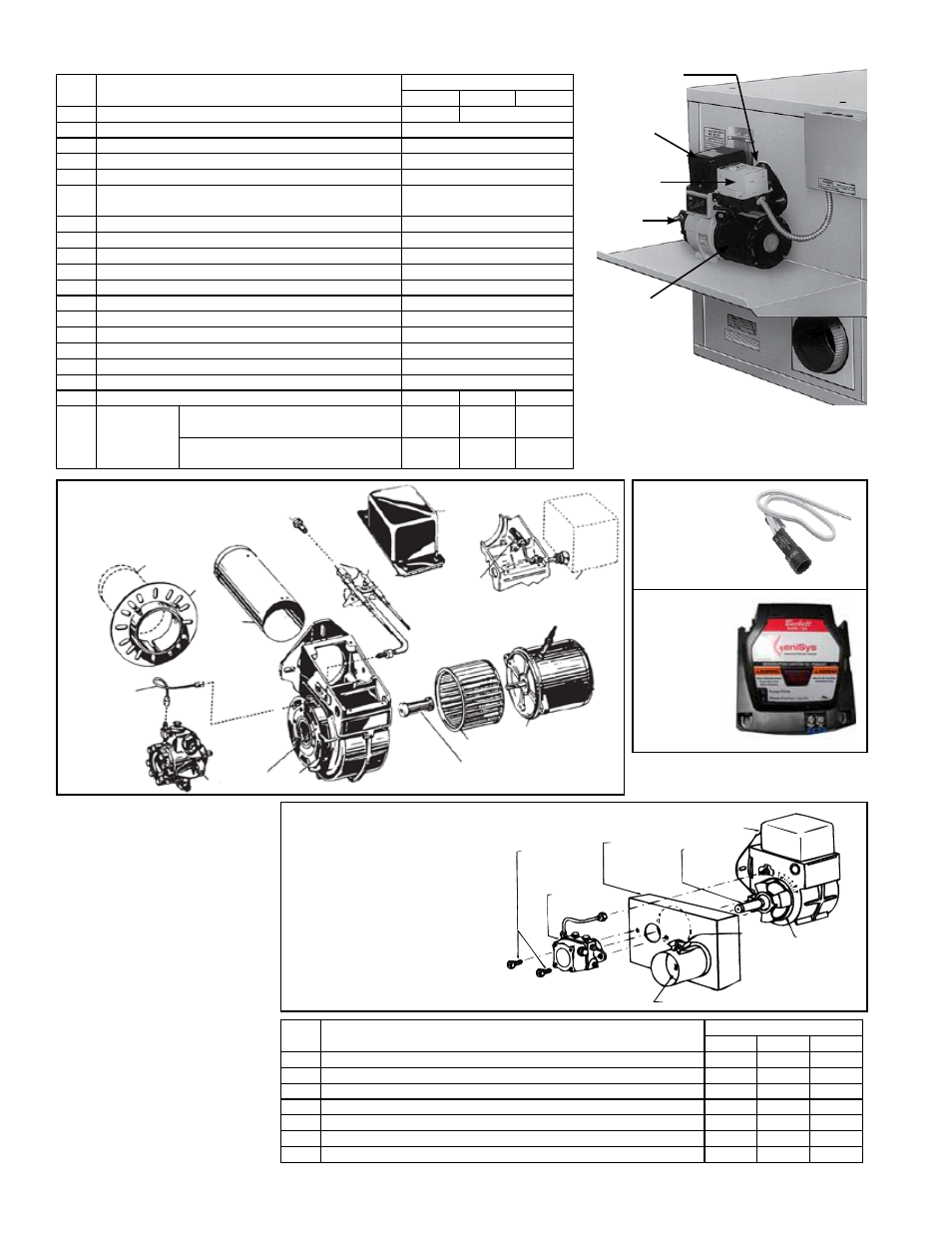

Exploded View of
Beckett Oil Burner
** Not stocked at Mercer
*** Always check the nozzle for size
and replace with identical nozzle.
Beckett Model
AF Burner
Adhesive-
backed
Gasket
Air
Damper
Adjust-
ment
Air Damper
Pump
Mounting
Screws
Fuel Unit
Outside
Combustion
Air Intake
Assembly
Extra-long
Coupling
Code 47 - Outside
Combustion Air
Adapter Kit, P/N 40274
(Same as Option DE1)
NOTE: Not available in
Canada
Heat Exchanger/
Combustion Chamber
- Models OH and OB
Code Description
Size
95 140 190
50 Ht Exchanger/Combustion Chamber Assy (includes 50A-F) 120750 104763 104763
50A Large Inner Access Door 115140 115140 115140
50B Replacement Gasket for Large Inner Access Door 120057 120057 120057
50C Exhaust Collar Plate Assembly 119367 115144 115144
50D Inner Exhaust Box Cover 115150 115150 115150
50E Replacement Gasket for Inner Exhaust Box 115151 115151 115151
50F Viewport Tube Assembly (not illustrated) 104761 104761 104761
42
45
44
43
46 34
35
40 41
38
32
37
36
33
39
Code 36 -
Ignition
Controller,
P/N 262700
