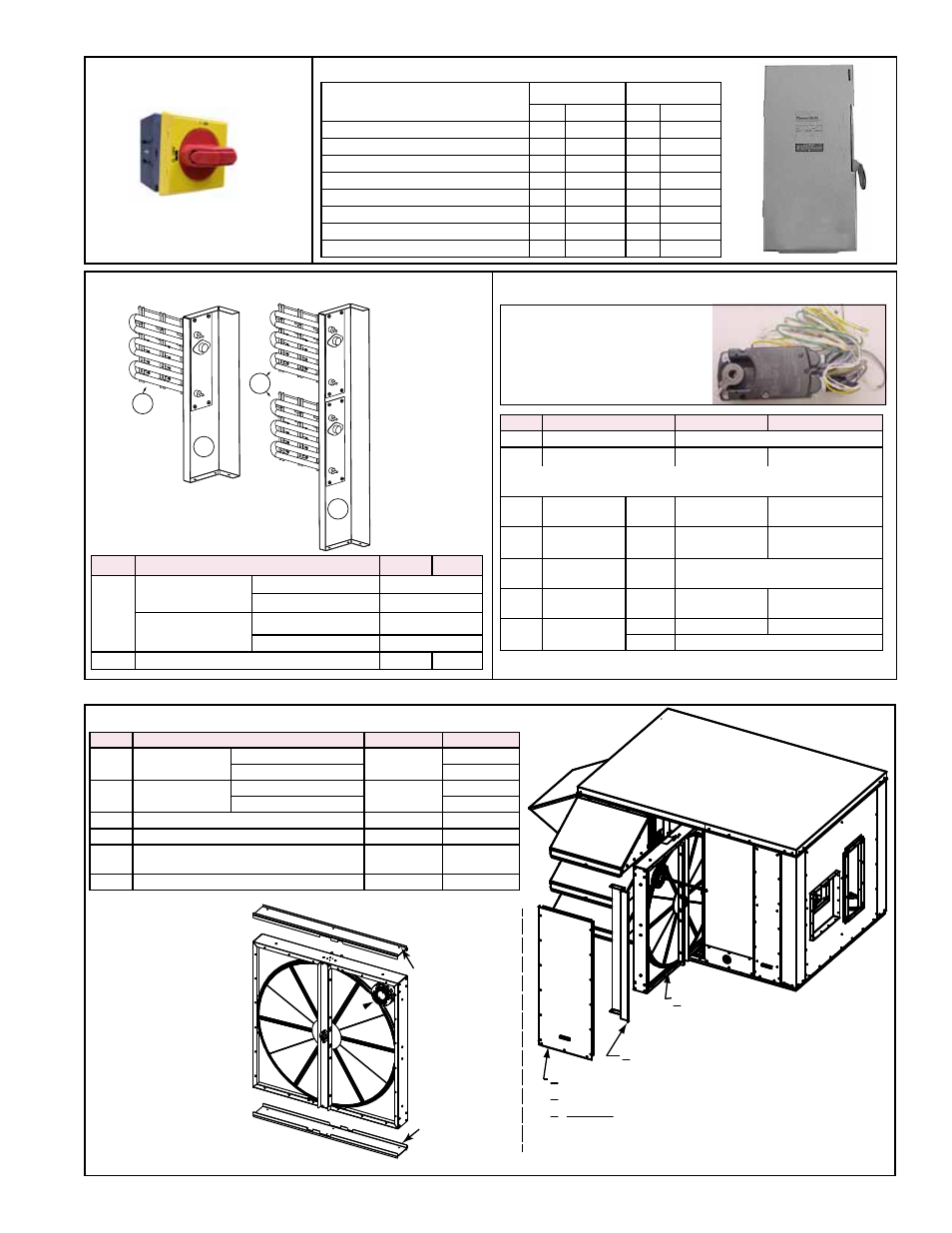

Form P-ZQYRA, PN262961R2, Page 5
CODE 36 - Disconnect
Switch, 60 Amp, P/N 205906
CODE 37 - Disconnect Switches (Same as CP Options)
Description
USA Canada
CP P/N CP P/N
30 Amp, 240 Volt, Non-Fusible 5 40269
30 Amp, 240 Volt, Fusible 6 87147
30 Amp, 600 Volt, Non-Fusible 7 50367 59 208054
30 Amp, 600 Volt, Fusible 8 50368 42 208045
60 Amp, 240 Volt, Non-Fusible 30 161469
60 Amp, 240 Volt, Fusible 17 89932
60 Amp, 600 Volt, Non-Fusible 38 155012 61 208056
60 Amp, 600 Volt, Fusible 20 90974 44 208048
(disconnect switch
originally factory-
installed as Option BA6)
Enthalpy Wheel
CODE Description Size 8 Size 12
50 Enthalpy Wheel
Cassette
208-230/3/60 (AK20)
260147
260152
460/3/60 (AK7) 260153
50A Wheel Motor
208-230/3/60 (AK20)
263294
263295
460/3/60 (AK7) 263296
50B Wheel Belt 262488 262489
50C Wheel Segment - 1 segment 263297 263299
50D Wheel Section - multiple segments
263298
(4 segments)
263300
(6 segments)
51 Top/Bottom Wheel Supports (2) 259590 259567
CODE 51 - Top
and bottom
wheel supports
will slide out
with the wheel.
When returning
the wheel to the
cabinet, match
the notches
with the bearing
supports.
1) Turn the power off to the unit.
2) Remove the wheel access panel.
3) Size 12 - On the post to the right of the wheel,
remove the screws holding the outside air sensor.
Move the sensor so that it does not interfere with
wheel removal.
4) Remove blockoff panel.
5) Disconnect the plug in the
wheel motor wiring and slide the
entire cassette out of the cabinet.
CODE 50 - Enthalpy
Wheel Cassette
(includes 50A, 50B,
50C, and 50D)
50A
Dampers and Actuator (Opt AR2Y)
CODE Description Size 8 Size 12
41 Inlet Damper Actuator 209351
42 Shaft Extension 254743, 3.25” 254744, 6”
The shaft extension is required when replacing actuator on unit
manufactured before 7/12 (Serial No. Date Code BLG).
43 Inlet Damper
Assembly
261879 261880
43A Damper in
CODE 42
261877,
19-3/8x23-7/8
261878,
19-3/8x29-7/8
43B Damper Top/
Btm Frame
(2) 261881
43C Damper Side
Frame
(2) 261883 (2) 261884
44 Exhaust
Damper
A23 260179, 20x24 209219, 14.5x11.5
A24 260179, 20x24
CODE 41 - Damper Motor,
P/N 209351, M9208-BGC-3,
applies to Inlet Damper
(Option AR2Y on Model
ZQYRA Sizes 8 and 12)
CODE Description Size 8 Size 12
39
5kW Heat Element
(Option PH1A)
208-230/3/60 (AK20) (1) 260184
460/3/60 (AK7) (1) 260185
10kW Heat Element
(Option PH2A)
208-230/3/60 (AK20) (2) 260184
460/3/60 (AK7) (2) 260185
40 Electric Element Support Bracket 259628 259627
Electric Heat (Options PH1A and PH2A)
39
40
40
39
5kW
10kW
