Reznor MASA Parts Manuals - Manual (Page 6)

P-COND (11-14), P/N 268631R2, Page 6
Condenser Coils
Code P/N’s & Sizes of coils used prior to 10/2008.
IMPORTANT: The P/N’s listed in the table above are
not a direct replacement for these previously used
coils. Before ordering, check with your distributor or
the factory on availability or alternate replacement.
Description
MASA 60
and 90
MASA 120
and 150
MASA
180
MASA
240
30
Condenser Coil
(Lower Section)
217166
34x35
217168
34x60
217170
38x84
220948
30x84
31
Condenser Coil
(Upper Section )
217167
21x35
217169
20x60
217171
19x84
220949
20x84

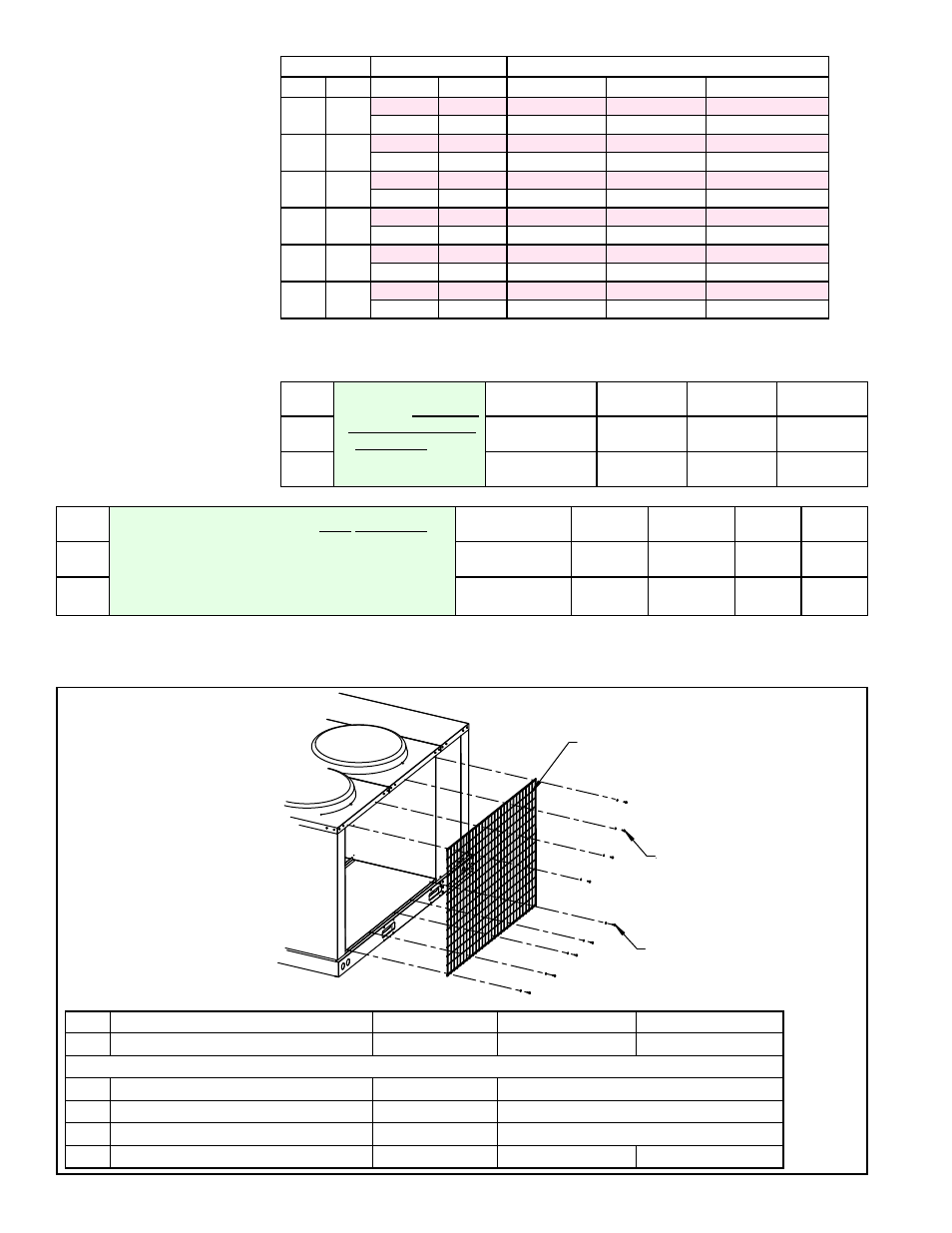

Condenser Coil Guard,
Option AZ12
Coil Guard,
CODE 54
Screws with washers
across the top,
CODES 51 and 53
Screws across the
bottom, CODES 52 and 53
Code Description MASA 60 and 90 MASA 120 and 150 MASA 180 and 240
50 Condenser Coil Guard, Option AZ12 220607 220608 220609
Components:
51 Tek #10-16x3/4 Hex Zinc Pl (3) 51356 (4) 51356
52 Screw 3/4 Type Ab Hex Screw (3) 99542 (5) 99542
53 Flat Washer 3/16 #10 (6) 113807 (9) 113807
54 Condenser Coil Guard 220285 220284 220283
Code 40 - Liquid Line
Filter Driers
MASA Refrigerant Circuit R410A Liquid Line Filter Driers *
Size Tons Circuit Tonnage Model Reznor P/N Connection Size
60 5
A 2 C-084-S 177378 1/2
B 3 C-164-S 177379 1/2
90 8
A 3 C-084-S 177378 1/2
B 5 C-164-S 216408 1/2
120 10
A 3 C-164-S 177379 1/2
B 7 C-304-S 216408 1/2
150 13
A 4 C-164-S 177379 1/2
B 8 C-304-S 216408 1/2
180 15
A 5 C-164-S 216408 1/2
B 10 C-414-S 216409 1/2
240 20
A 7 C-304-S 216408 1/2
B 13 C-415-S 216410 5/8
* Shipped loose in the condenser section of the original MASA unit shipment.
Code
P/N’s & Sizes of
coils used beginning
10/2008 (Serial No.
Code BHJ) - See
page 2 to decode
the Serial No.
Description
MASA 60
and 90
MASA 120
and 150
MASA 180
and 240
30
Condenser Coil
(Lower Section)
255510
34x35
255511
34x60
255513
30x84
31
Condenser Coil
(Upper Section )
255509
21x35
255508
20x60
255512
20x84
NOTE: Coils are aluminum
Micro-Channel and require
aluminum to copper brazing.
