Reznor MASA Parts Manuals - Manual (Page 3)

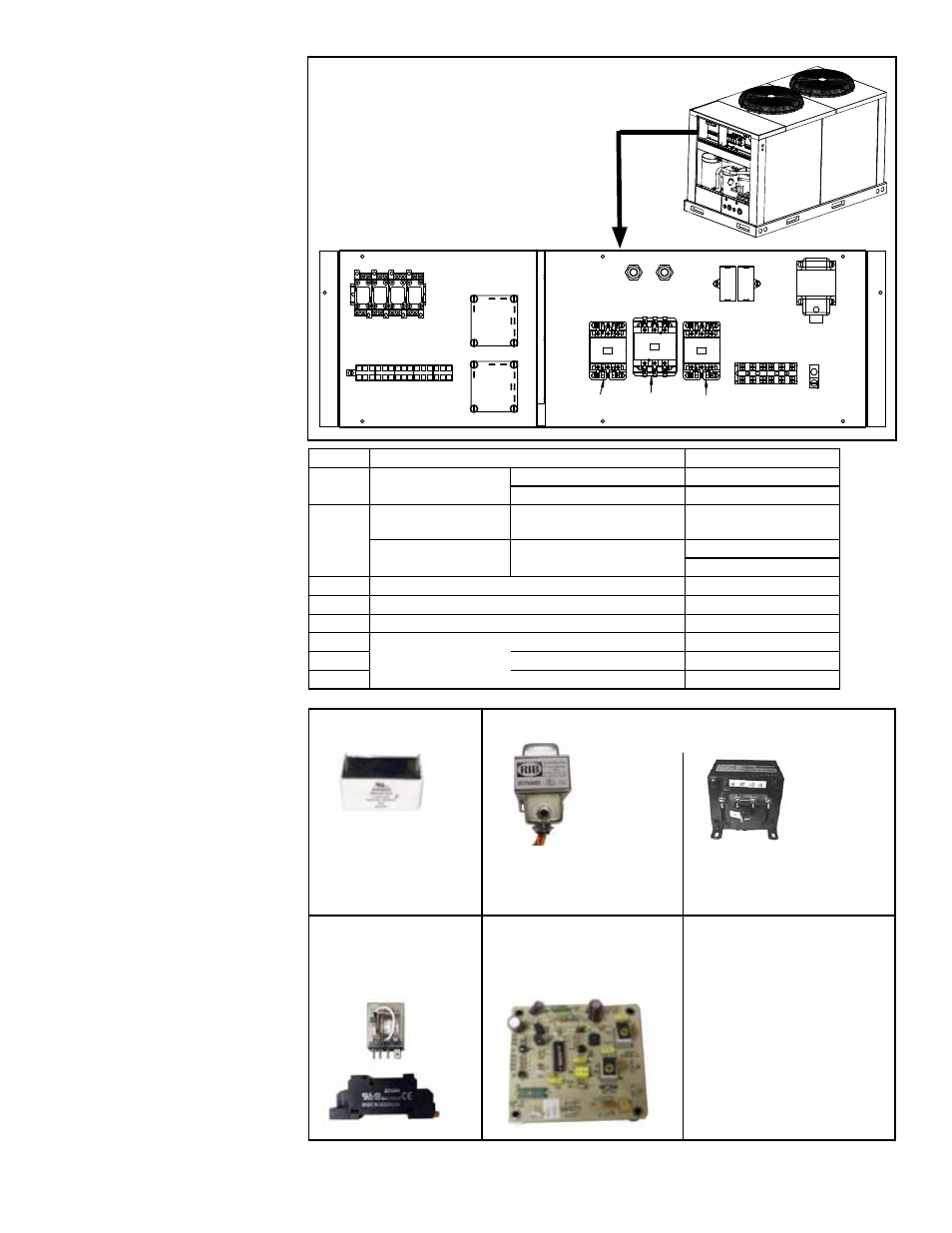

P-COND (11-14), P/N 268631R2, Page 3
Electrical
Components in the
Control Compartment
4 4 4 4
3 3 3 3
1 1 2
5
5
6 8 7
Terminal
Block
Ground
Lug
24V Terminal
Block
Control
Compartments
Code Description P/N
1 Capacitor
460/3/60 and 575/3/60 207447, 7.5 MFD
208-230/3/60 207448, 10 MFD
2
Transformer with
circuit breaker, 75 VA
Use with AK20, 208-
230/3/60 and AK7, 460/3/60
208989
Transformer with fuse Use with AK8, 575/3/60
Transformer - 39095
Fuse - 201773
3 Relay LY2 211411
4 Relay Mounting Socket 211415
5 Compressor Protect Board (anti-short cycle timer) 216385
6
3 Pole Contactor
25 Amp 216386
7 40 Amp 216387
8 50 Amp 216388
Code 1 - Capacitor
P/N 207447,
7.5MFD/440V
P/N 207448,
10 MFD/370V
Transformer with Circuit
Beaker, 75VA, 120/208-
240/480-24v, P/N 208989
Code 3 & 4 - Relay,
P/N 211411, with
Socket, P/N 211415
Code 5 - Anti-Short Cycle
Timer Board (Option
CUB1), P/N 216385
Codes 6, 7, & 8 -
Contactors, 3 Pole
Code 6 - P/N 216386,
25AMP, HCC-3XQ01CY
Code 7 - P/N 216387,
40AMP, HCC-3XQ04CG
Code 8 - P/N 216388,
50AMP, HCC-3XQ05CJ
Transformer, 200VA,
575-24v, P/N 39095, with
Fuse, P/N 201773
Code 2 - Transformers
