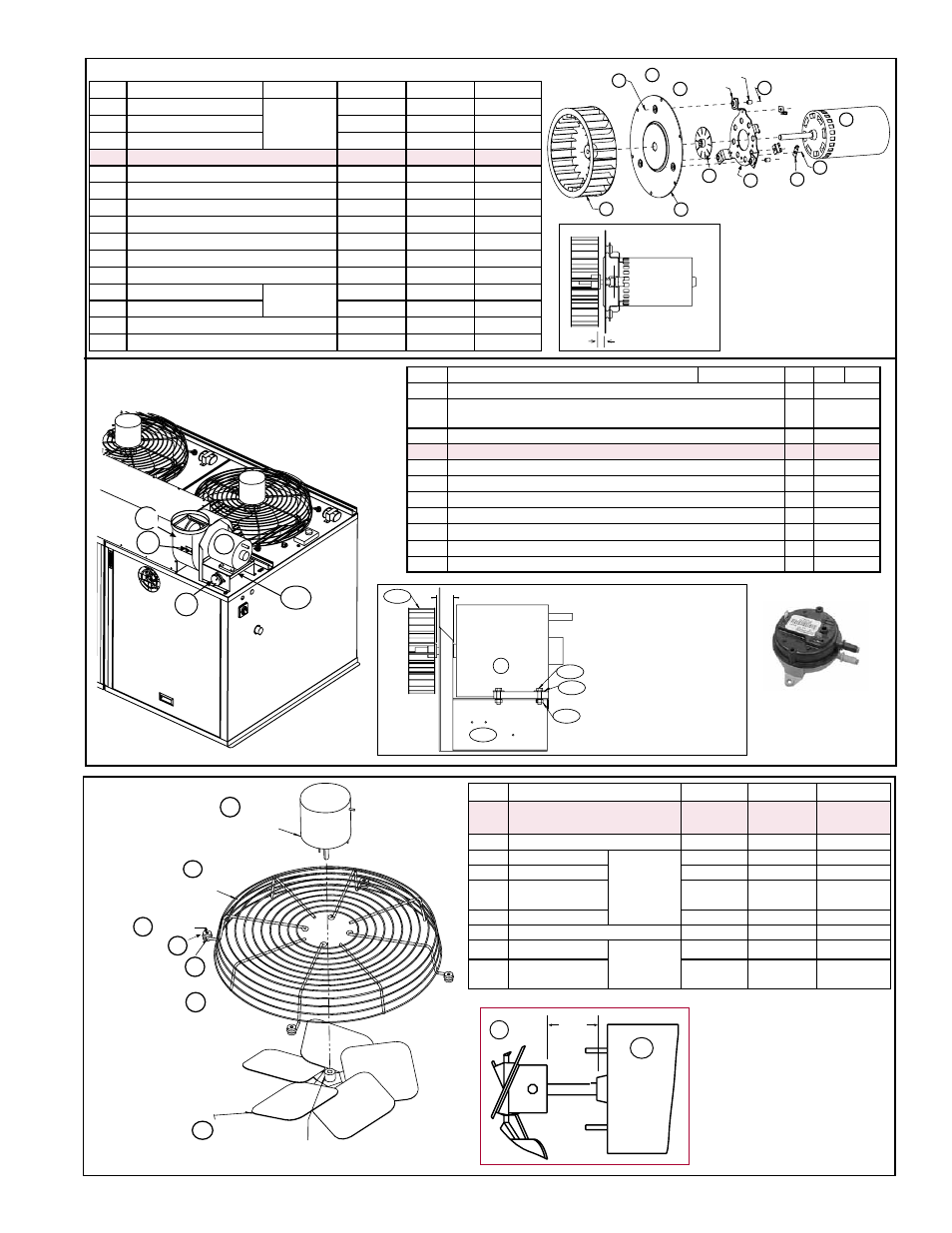

Form P-LDAP, P/N 271892R1, page 5
7/16” (11mm) inside
21
Venter
Motor
Hex Nut
Isolator Bushing
Isolator
Venter Motor Bracket
Screw
Venter Motor Clip
Cooling
Fan
Venter Motor Plate
Screw
Venter
Wheel
51
45
44
50
52 46
53
43 48
49
Assembled Venter
Motor and Wheel
Heat Section Venter Parts - All Sizes
62A
62 63
60
27
Flue Collection (System) Venter
Parts - Sizes 800 and 1200
62A
62D
62C
62B
1-1/4” (32mm) 62E
26
Spacing for Flue
Collection Venter
Motor and Wheel
Assembly
NOTES:
1) Do not use key provided
with motor.
2) Locate the setscrew on
the wheel approximately
180° from keyway in
motor.
3) Torque setscrew to 125
±5 in/lbs.
Code Description LDAP Size 400 800 1200
40 Venter Housing See
illustration
on page 8.
(1) 209205 (2) 209205 (3) 209205
41 Venter Housing Gasket (1) 196013 (2) 196013 (3) 196013
42 Static Pressure Tap (2) 116043 (4) 116043 (6) 116043
21 Venter Motor, 208/240V (page 3) (1) 196830 (2) 196830 (3) 196830
43 Venter Mounting Bracket (1) 195072 (2) 195072 (3) 195072
44 Venter Isolator (3) 194534 (6) 194534 (9) 194534
45 Venter Isolator Bushing (3) 194803 (6) 194803 (9) 194803
46 Venter Motor Plate (1) 194910 (2) 194910 (3) 194910
47 Motor Plate Gasket (1) 201472 (2) 201472 (3) 201472
48 Venter Motor Clip (3) 194805 (6) 194805 (9) 194805
49 #8-32 x 1/2” lg slotted screw (for clip) (3) 92851 (6) 194806 (9) 194806
50 #10-24x3/4”lg screw Mntng Brckt
to Mtr Plate
(3) 202949 (6) 202949 (9) 202949
51 #10-24 Hex nut (3) 111377 (6) 111377 (9) 111377
52 Venter Wheel (1) 195666 (2) 195666 (3) 195666
53 Cooling Fan (1) 196035 (2) 196035 (3) 196035
Code Description LDAP Size 400 800 1200
60 Flue Collection (System) Venter Housing ■ 151343
61 Flue Collection Venter Gasket (between venter housing and
flue collection box - not illustrated)
■ 149857
62 Venter Motor & Wheel Assy (includes Codes 26 and 62A-E) ■ 208389
26 Venter Motor (component of Code 62) ■ 16074
62A Motor Base Assembly ■ 207837
62B 1/4-20-3/4” Hex Head Cap Screws ■ (4) 16246
62C 3/8” Plain Washer SAE ■ (4) 6593
62D 1/4-20 Hex Nut with Toothed Washer ■ (4) 10650
62E Wheel ■ 8735
63 Flow Sensing Probe Assembly ■ 151559
64 Silicone Rubber Tubing 13” long (not illustrated) ■ 174399
20
Fan Motor
72
Fan Guard
Isolator
74
Tinnerman
Nut
75
76
73 Screw
77 Fan Blade
Set Screw (torque
to 130±10 in/lbs)
Under the
screw -
2 Washers
(1 CODE 74
& a washer
with the
isolater
(CODE 75)
Fan Parts
3”
(76mm)
Fan
Motor
Fan
Blade
20
77
Code Description LDAP 400 LDAP 800 LDAP 1200
20 Motor, 208/230V, 1 HP, 3
speed, A.O.Smith F48U34A13
(1)
207734
(2)
207734
(3)
207734
72 Fan Guard (1) 170086 (2) 170086 (3) 170086
73 Screw
For
attaching
fan guard
(4) 96452 (8) 96452 (12) 96452
74 Flat Washer (4) 196646 (8) 196646 (12) 196646
75 Isolator with
washer
(4)
96451
(8)
96451
(12)
96451
76 Tinnerman Nut (4) 54633 (8) 54633 (12) 54633
77 Fan Blade (1) 207729 (2) 207729 (3) 207729
78 Nut To attach
motor to fan
guard
(4) 31522 (8) 31522 (12) 31522
79 Washer
(8)
196646
(16)
196646
(24)
196646
Code 27 - Pressure
Switch, P/N 205545
