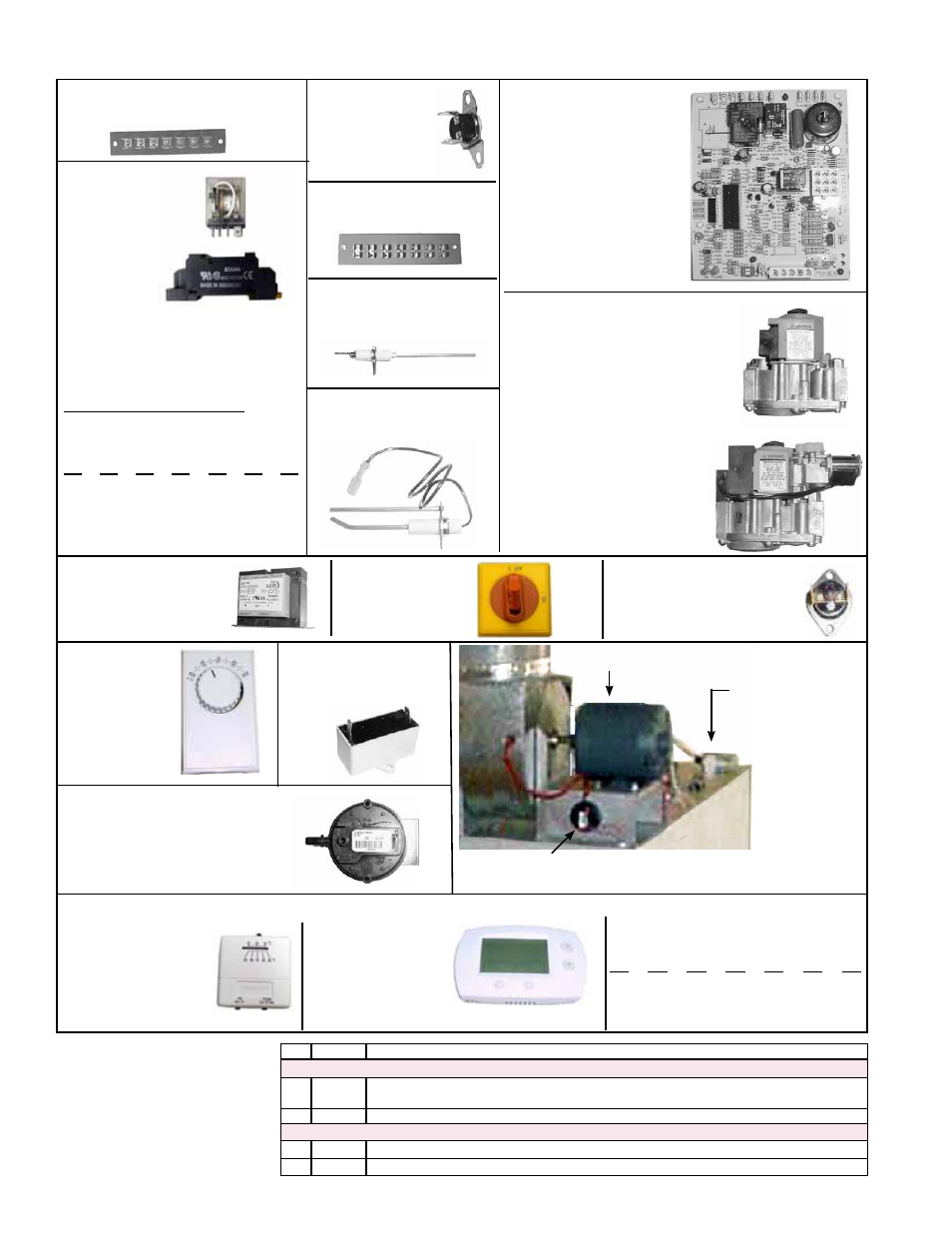

Form P-LDAP, P/N 271892R1, page 4
Code 11 - DSI Control
(Circuit Board),
P/N 195265
Code 12 - Gas Valve
Single-Stage, Natural Gas, P/N
196981 (Serial No. Code Y3 or
Z8);
Propane, P/N 196983, Serial
No. Code Y5 or 1A
Two-Stage, Natural Gas,
P/N 197067 (Serial No.
Code Y9 or 5A);
Propane, P/N 197065,
Serial No. Code Y7 or 3A
Code 13 - 208/240V
Transformer,
P/N 194536
Code 14 -
Disconnect
Switch,
P/N 207948
Code 15 - High
Limit, Manual Reset,
L-150°F, White Dot ,
P/N 112753
Code 16 -
Destratification
Fan Control,
P/N 207929
Code 18 -
Boot for
Fan Motor
Capacitor,
P/N 103182
Code 19 - Capacitor
(Venter Motor),
P/N 195641
Code 22 - Pressure Switch
(Heat Section) - see P/N’s,
by altitude on page 3.
If fuse needs to be
replaced, use
P/N 201685 or field-
supplied Type ATC or
ATO 3, color violet.
Code 27 - Flue Collection Box Pressure Switch,
P/N 205445
Code 26 - Venter Motor
Code 17 - Fan
Motor Capacitor,
P/N 207582
Code 1 - 24V, 7-Pole Terminal
Strip, P/N 164545
Codes 2,
3, 4, 8, and
10 - Relay
and Socket
(Base)
Code 5 - Limit
Control 240°F,
Silver Dot,
P/N 202048
Code 6 - 7-Pole Terminal
Strip, P/N 164544
Code 7 - Flame Sensor,
P/N 195292
Code 9 - Ignitor,
P/N 175272
Electrical Components (cont’d)
Relay Replacement Kits:
Codes 2, 3, and 8 - To replace
24V coil relay, P/N 98118, order
Kit P/N 263527.
Codes 4 and 10 - To replace
208/230V coil relay, P/N 130821
or P/N 157808, order Kit P/N
263529.
Relay, 24V, P/N 211411
Relay, 208V, P/N 211413
Relay, 230V, P/N 211414
Relay Base (Socket), P/N 211415
Code 34 - Kits for Control of
Multiple Heaters (Size 400,
max 6; Size 800, max 3; Size
1200, max 2)
Qty P/N Description
Option CL31 for LDAP - Pkg P/N 208366 for the Control Heater and one Additional Heater
2 208365 Relay Assemblies each consisting of P/N 211411*, Relay Plug, 24VAC, DPDT; 211415
Relay Socket; 42” red wire, 42” white wire, 6” blue wire, & 6” brown wire (all w/terminals).
2 208185 Wiring Diagram Label
Option CL32 for LDAP - Pkg P/N 208367 for each Additional Heater
1 208365 Relay Assemby (same description as above)
1 208185 Wiring Diagram Label
* If replacing a relay only (P/N
98118) used previously, order
Replacement P/N 263527.
Code 32 - Locking Cover for
Thermostat Option CL1, P/N 257464
(Same as Option CM1)
Code 33 - Locking Cover for
Thermostat Option CL22, P/N 257463
(Same as Option CM1B)
Code 30 - Single-
Stage Thermostat,
24 volt, 50-90°F with
Fan Switch, P/N
255350 (Same as
Option CL1)
Code 31 - Two-
Stage Digital
Thermostat with
Fan Switch, 24 volt,
P/N 220630 (Same
as Option CL22)
Thermostats and Thermostat Accessories
