6
2 - Stage White Rogers Valve

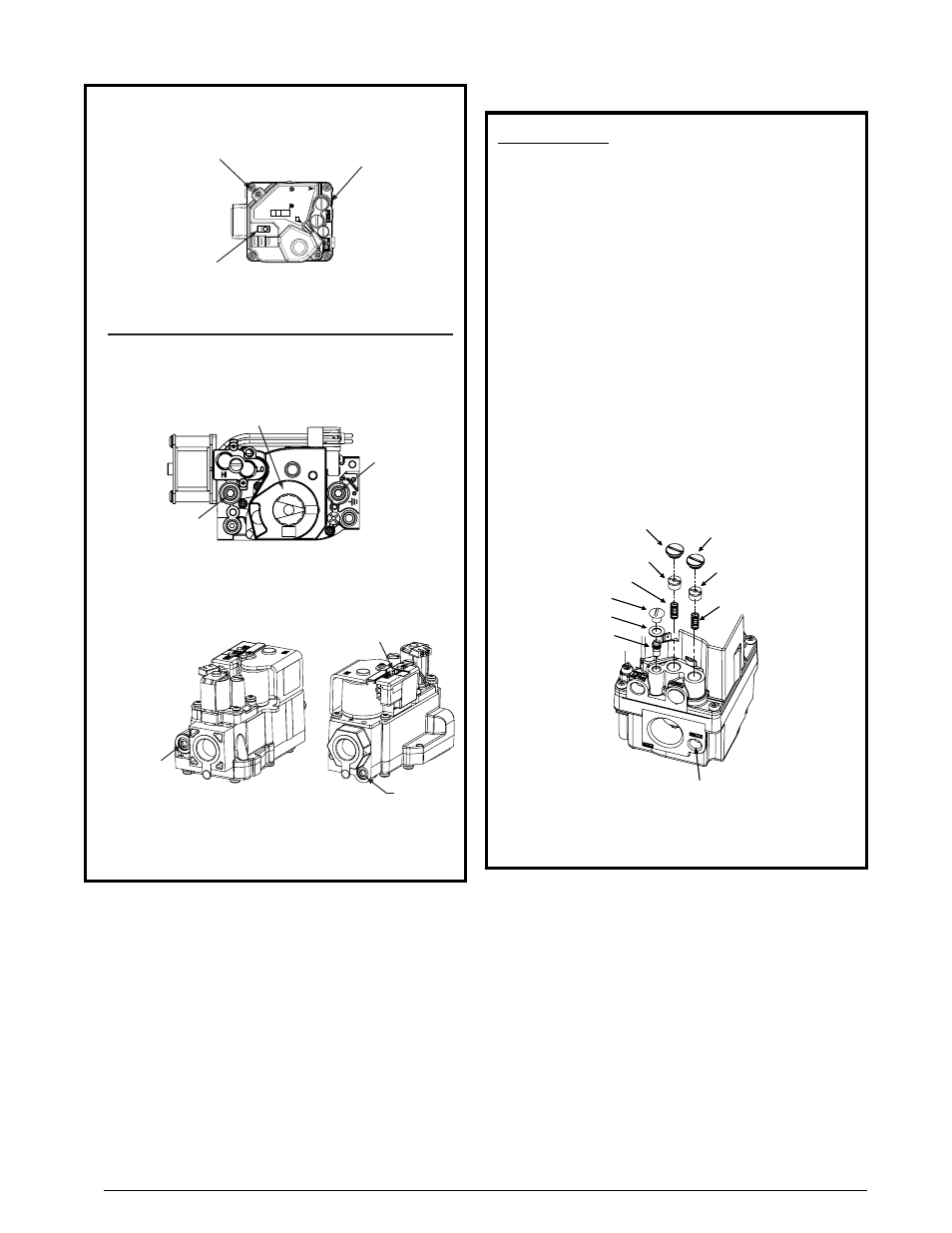

Figure 2. Inlet & manifold Pressure Tap Locations
IN
ON
OFF
Inlet
Pressure
Tap
Inlet
Pressure
Tap
Inlet
Pressure
Tap
2-STAGE WHITE ROGERS VALVE
2-STAGE HONEYWELL VALVES
Model 36H64
Manifold
Pressure
Tap (Outlet)
Model VR8205Q2381
Model VR9205Q1127
ON/OFF
Switch
ON/OFF
Knob
ON/OFF
Switch
Manifold
Pressure
Tap (Outlet)
Manifold
Pressure
Tap (Outlet)
LOW REGULATOR COVER SCREW
(TWO STAGE ONLY)
REGULATOR ADJUST SCREW
REGULATOR SPRING
PILOT COVER SCREW
PILOT GASKET
PILOT ADJUST SCREW
REGULATOR SPRING
REGULATOR ADJUST SCREW
SINGLE STAGE AND TWO STAGE
HIGH REGULATOR COVER SCREW
MANIFOLD PRESSURE
TAP (OUTLET)
Figure 3. Regulator Spring &
Adjustment Screw Removal
P/N - 624695 Model 36H64
IMPORTANT NOTE: When converting to LP/
Propane gas from natural gas, both springs from
the gas valve must be replaced by the white springs
included in the kit. The LP Propane springs for hIGh
and LOW fire are the same size, shape, and color.
1. Remove both regulator cover screws. See Figure 3.
2. Remove both regulator adjustment screws from the gas
valve (located beneath the cover screws).
3. Remove both Natural Gas regulator springs (color coded
silver / Plain) from the regulator sleeves.
4. Install both L.P. regulator springs (provided in the
conversion kit and color coded white) into the regulator
sleeves.
5. Replace the HIGH regulator adjustment screw and adjust
approximately 12 turns to the bottom stop.
6. Relace the LOW regulator adjustment screw and adjust
approximately 8 turns.
7. Check and adjust both regulator settings (High and Low
fire) to the firing rates listed in Table 1 for factory settings
below 2,000 ft elevation or for reduced firing rates based
on final high altitude calculations
