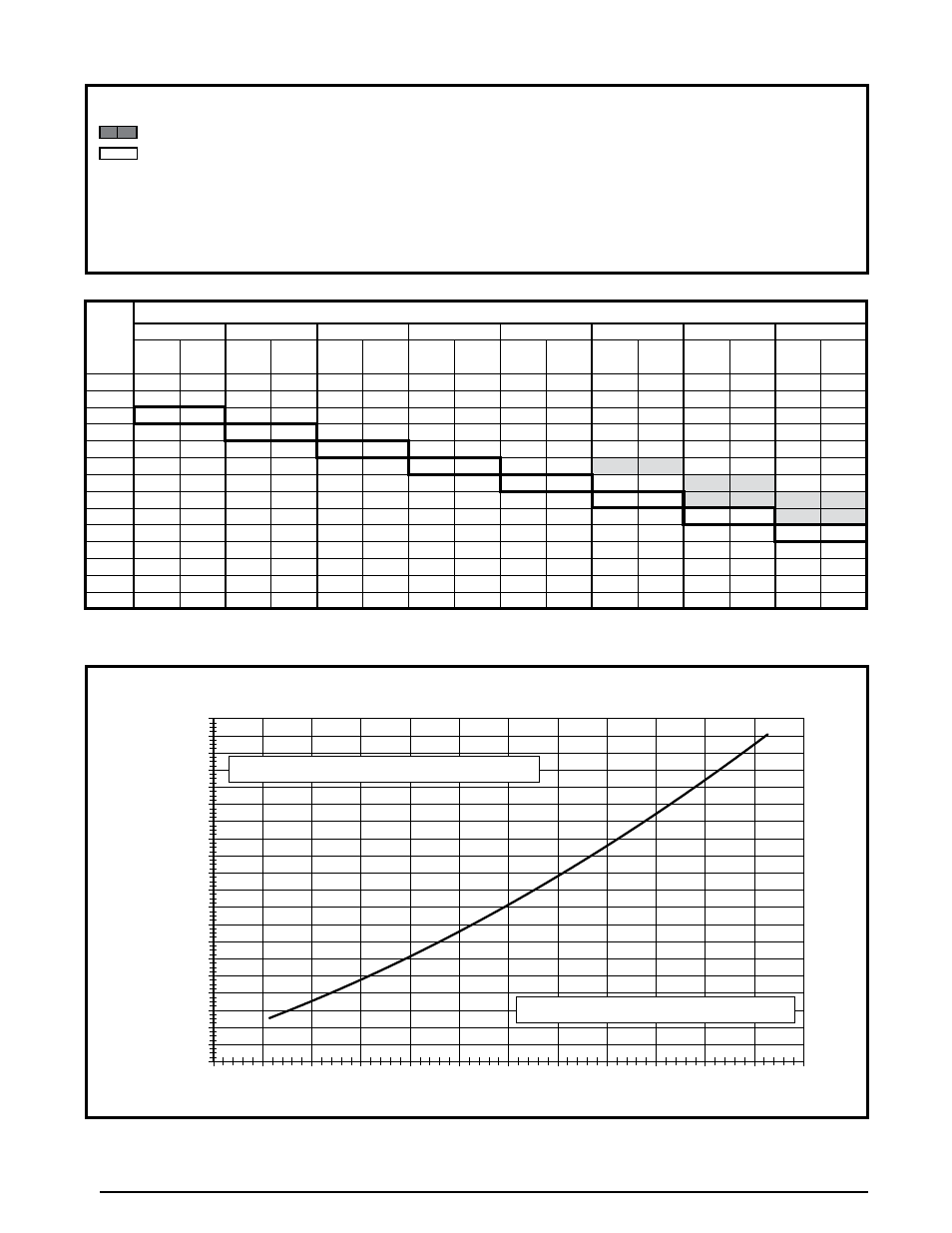

Figure 2. charging chart for S4Bd-060cB Series (5 ton units) - tXV matches
200
220
240
260
280
300
320
340
360
380
400
420
440
460
480
500
520
540
560
580
600
75 80 85 90 95 100 105 110 115 120 125 130 135
Liquid Temperature (F o )
Liquid Pressure (psig)
Remove refrigerant when above the curve
Add refrigerant when below the curve
Charging Chart - Cooling
Suct.
press.
outdoor temperature (°F)
70 75 80 85 90 95 100 105
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
liq.
press.
dis.
temp.
123 263 143
125 264 146 287 146
127 265 149 289 149 312 149
129 266 152 290 152 313 152 337 152
131 267 156 291 155 314 155 338 155 361 155
133 292 158 315 158 339 158 363 158 386 158
135 317 161 340 161 364 161 387 161 411 160
137 341 164 365 164 388 164 412 164 435 163
139 342 167 366 167 389 167 413 167 437 167
141 367 170 391 170 414 170 438 170
143 392 173 415 173 439 173
145 417 176 440 176
147 441 178
149
table 5. charging table for S4Bd-060cB Series (5 ton units) - orifice matches
legend
Shaded boxes indicate flooded conditions.
Rated design values. The suction pressure will be lower than design value if outdoor air flow, entering
dry bulb, or entering wet bulb temperatures are lower than design.
noteS:
1. All pressures are listed psig and all temperatures in °F
2. Discharge temperatures GREATER than charted values indicate an UNDERCHARGED system.
3. Discharge temperatures LESS than charted values indicate an OVERCHARGED system.
