Form RZ-NA I-V3-DN, P/N 197101 Rev 5, page 2

Installation

Instructions

Installation should be done by a qualified agency in accordance with the instruc-

tions on this sheet and in compliance with all codes and requirements of authori-

ties having jurisdiction.
IMPORTANT: Model UDAP and Model UDAS require four-point suspension

when installing a downturn nozzle.
Select and follow the instructions for the option package being installed:

Option CD2 or CD3 ........SECTION A only

Option CD4 or CD5 .........SECTIONS A and B

SECTION A

1. If the heater is installed, turn off the gas and the electric power.
2. Assemble Downturn Nozzle Section

Sizes 30-125 (See FIGURE 1.) - Using the screws in the kit, attach both sides

to the top. Attach the bottom to both sides.
Sizes 150-400 (See FIGURE 2.) - Using the brackets and the screws in the kit,

attach both sides to the top. Attach the bottom to both sides.

If installing Option CD3 or CD5, use the second set of nozzle parts and

assemble the second nozzle section.

Attach top,

sides, and

bottom using

the screws

from the

option

package.

Nozzle

Left Side

Nozzle Top

Nozzle Bottom

Nozzle

Right

Side

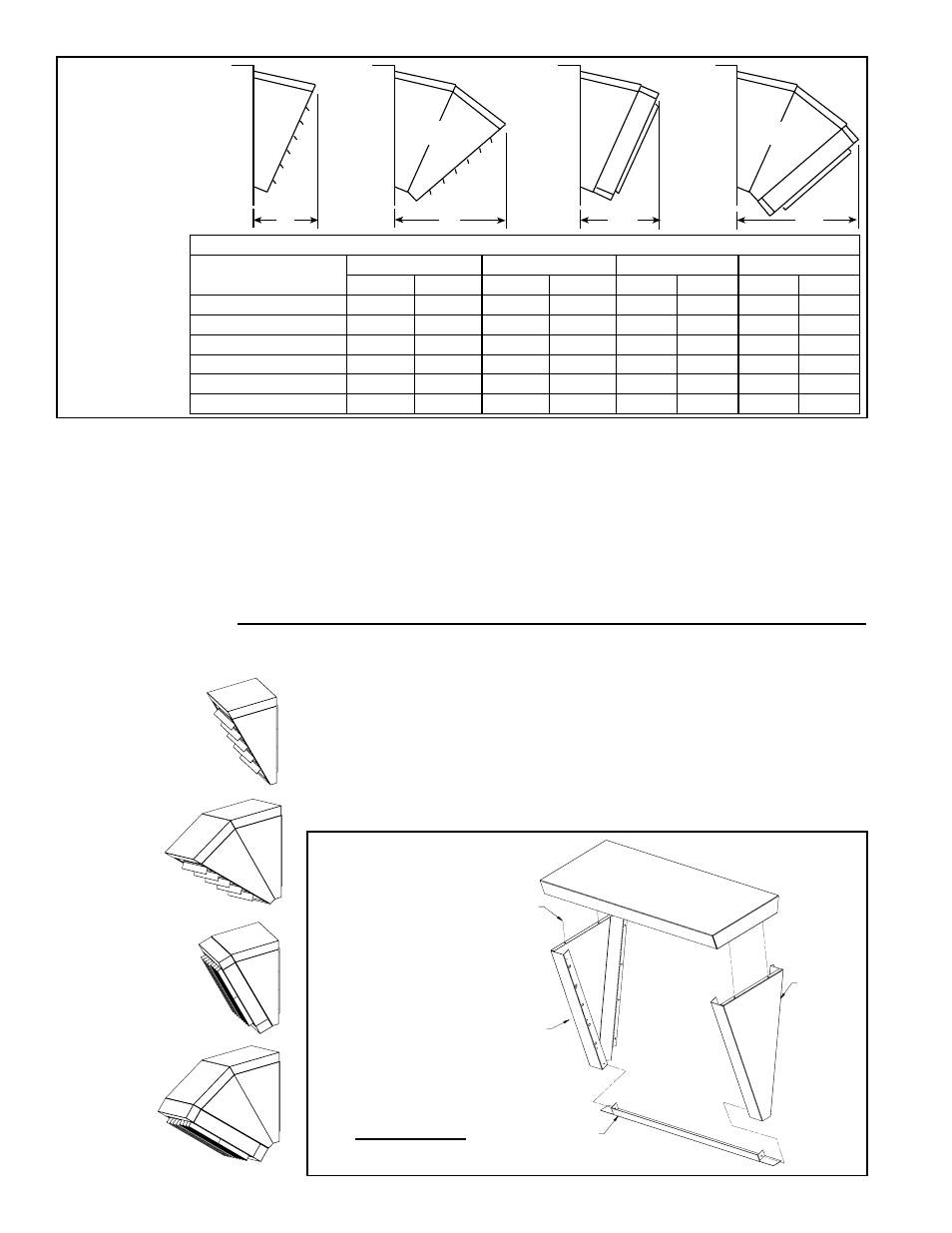

FIGURE 1 -

Assembling the

downturn nozzle

for Sizes 30-125.

Applies to:

Option

CD2

Option

CD3

Option

CD4

Option

CD5

Unit with

25-65°

downturn

nozzle with

horizontal

louvers

Unit with

50-90°

downturn

nozzle with

horizontal

louvers

Unit with

25-65°

downturn

nozzle with

horizontal

and vertical

louvers

Unit with

50-90°

downturn

nozzle with

horizontal

and vertical

louvers

Option

CD2

Option

CD3

Option

CD4

Option

CD5

A

A

A

A

Downturn

Nozzle

Dimensions

Dimension A

Size

with Option CD2

with Option CD3

with Option CD4

with Option CD5

inches

mm

inches

mm

inches

mm

inches

mm

30, 45

7-1/8

181

12-3/8

314

10-1/8

257

14-1/8

359

60, 75

8-5/8

219

15

381

11-5/8

295

16-3/4

425

100, 125

12-5/8

321

21-7/8

556

15-5/8

397

23-5/8

600

130, 150, 175, 180, 200

11-1/2

292

19-7/8

505

14-1/2

368

19-7/8

505

225, 250

14-1/2

368

25-1/8

638

17-1/2

445

26-7/8

683

260, 300, 310, 350, 400

18-1/2

470

32

813

21-1/2

546

33-3/4

858

Downturn

nozzles

require 4-pt

suspension.

Install Option

CD5 on

UDBP or

UDBS only.
