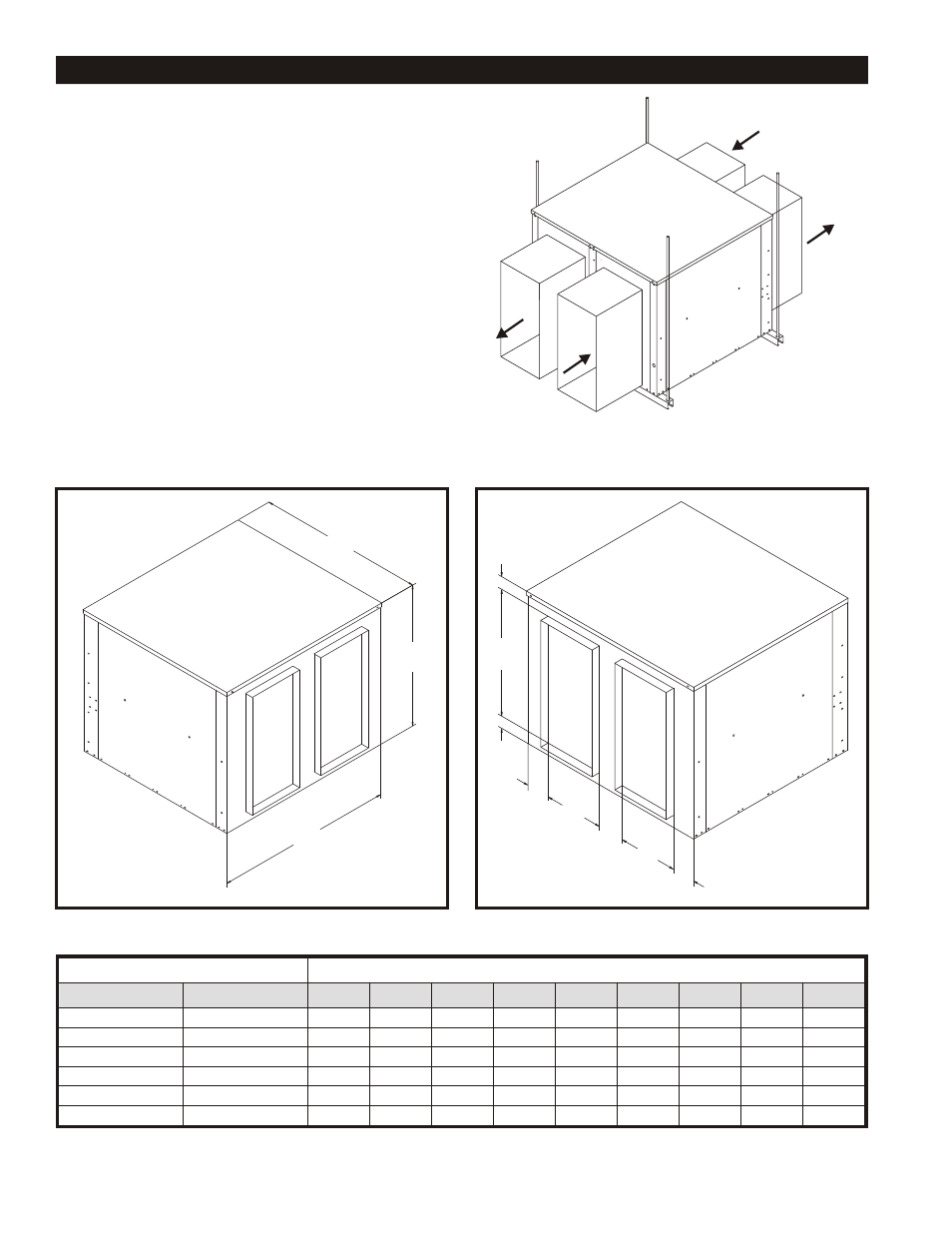

Stand Alone ERV’S For Side by Side In door Application
D
D
E
I
G
H
ERV Data Di men sional Data
Size CFM Range A B C D E F G H I
11 300-1100 44.75 32.13 33.50 11.00 27.00 4.00 4.25 2.88 2.50
20 1200-2000 54.38 37.25 37.50 12.00 30.00 1.63 5.13 4.06 1.63
28 1200-2800 52.25 42.62 43.56 14.00 32.00 8.69 5.25 4.25 2.88
36 2000-3600 60.00 46.69 57.37 16.50 39.50 12.00 5.50 4.05 5.88
46 3000-4600 60.00 52.69 57.37 16.50 39.50 12.00 8.69 5.50 5.88
62 4600-6200 72.00 70.88 63.63 19.50 39.50 17.53 14.50 8.70 6.60
F
H
EXHAUST AIR
FRESH AIR
RETURN AIR
TREATED AIR
Fea tures and Notes
1. Stand alone design allows higher levels of outdoor
air to be introduced into the a/c space.
2. Static test ports provided to verify intake and
exhaust CFM.
3. Balancing damper(s) is field provided when
connected to ductwork. System will not operate
properly without balancing damper.
4. See blower performance charts for airflow at various
E.S.P..
5. Filter rack with 2" pleated filters included.
ERV with Hor i zon tal Ductwork
(bal anc ing damper(s) field sup plied)
