FUSES

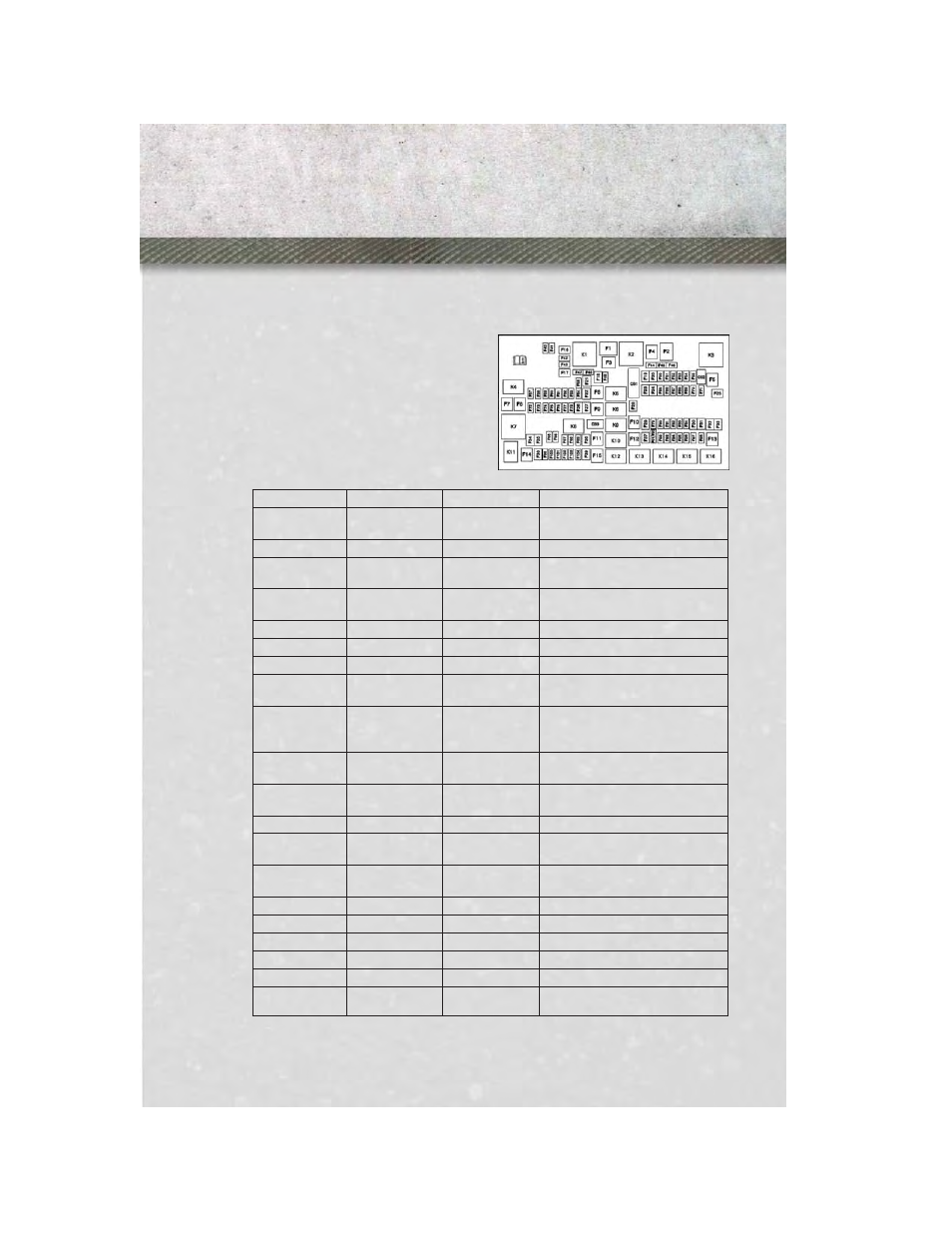

POWER DISTRIBUTION CENTER (FUSES)

• The Power Distribution Center is lo-

cated in the engine compartment near
the battery. This center contains car-
tridge fuses and mini fuses. A descrip-
tion of each fuse and component may
be stamped on the inside cover, other-
wise the cavity number of each fuse is
stamped on the inside cover that cor-
responds to the following chart.

Cavity

Cartridge Fuse

Micro Fuse

Description

F01

80 Amp Red

Rad Fan Control Module – If

equipped

F03

60 Amp Yellow

Rad Fan – If Equipped

F05

40 Amp Green

Compressor for Air Suspension –

If Equipped

F06

40 Amp Green

Antilock Brakes/Electronic Sta-

bility Control Pump

F07

40 Amp Green

Starter Solenoid

F08

40 Amp Green

Emissions Diesel – If Equipped

F09

40 Amp Green

Diesel Fuel Heater – If Equipped

F10

40 Amp Green

Body Controller / Exterior Light-

ing #2

F10

50 Amp Red

Body Controller / Exterior Light-

ing #2 – If Equipped with Stop/

Start

F11

30 Amp Pink

Integrated Trailer Brake Module

– If Equipped

F12

40 Amp Green

Body Controller #3 / Interior

Lights

F13

40 Amp Green

Blower Motor

F14

40 Amp Green

Body Controller #4 / Power

Locks

F15

30 Amp Pink

Electric Park Brake Right Side –

If Equipped

F19

30 Amp Pink

SCR – If Equipped

F20

30 Amp Pink

Passenger Door Module

F21

30 Amp Pink

Drive Train Control Module

F22

20 Amp Yellow

Engine Control Module

F23

30 Amp Pink

Body Controller #1

F24

30 Amp Pink

Driver Door Module

MAINTAINING YOUR VEHICLE

179
