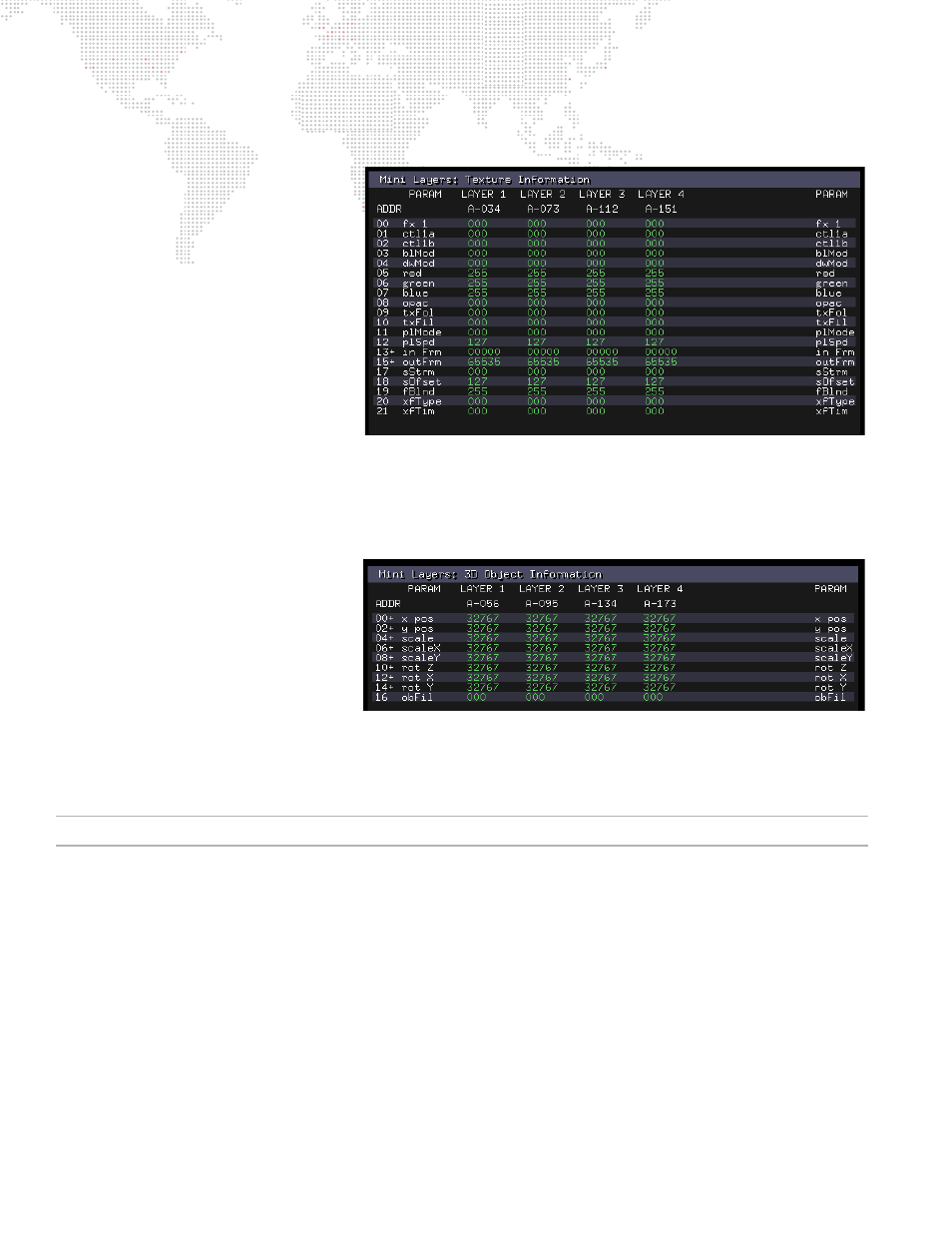

LAYERS
Fixture:
Texture (2D)
+
Effect 1 with Controls A & B
+
Blend Mode
+
Drawmode
+
Color: Red, Green, Blue
+
Opacity
+
Texture Folder Number
+
Texture File Number
+
Playmode
+
Playspeed
+
In-Frame
+
Out-Frame
+
Sync Stream and Sync Offset
(Timecode and Layer-to-Layer)
+
Frame Blending
+
Crossfade Type and Timing
Fixture:
Objects (3D)
+
X and Y Position
+
Scale
+
X and Y Scale
+
X, Y, Z Rotation
+
Object File Number
Color indications:
+
Green - at default value.
+
Orange - not at default value.
For a complete parameter maps, refer to
Fixture, Layer and Parameter Details
Master
The Master function is to provide mastering controls for the final output color, intensity, pixel-mapping intensity and
control, and audio output volume.
The Master fixture has overall color mixing and one texture effect that affect the composite image created by the four
content layers.
Guidelines:
+
The intensity level must be above 0 to see any output.
