PREPAIWTÌÒÉ i
(A) AM Antenna Connection________________
Connect the supplied loop antenna to the AM AERIAL
terminal. Place the AM loop antenna far away from the
system and adjust its position for the best reception.
(D FM Wire Antenna Connection____________
Connect the supplied FM wire antenna to the FM 300 Q
terminal. Adjust the position of the FM antenna for the
best reception.
Outdoor Antenna
For better FM stereo reception connect an outdoor FM
antenna to the FM AERIAL 300 Q terminal using a 300 Q
dipole wire.
(c) Speaker Connections___________________
• Connect the right speaker to Front terminal R, with the
red wire to + and the black wire to —.
• Connect the left speaker to Front terminal L, with the
red wire to + and the black wire to —.

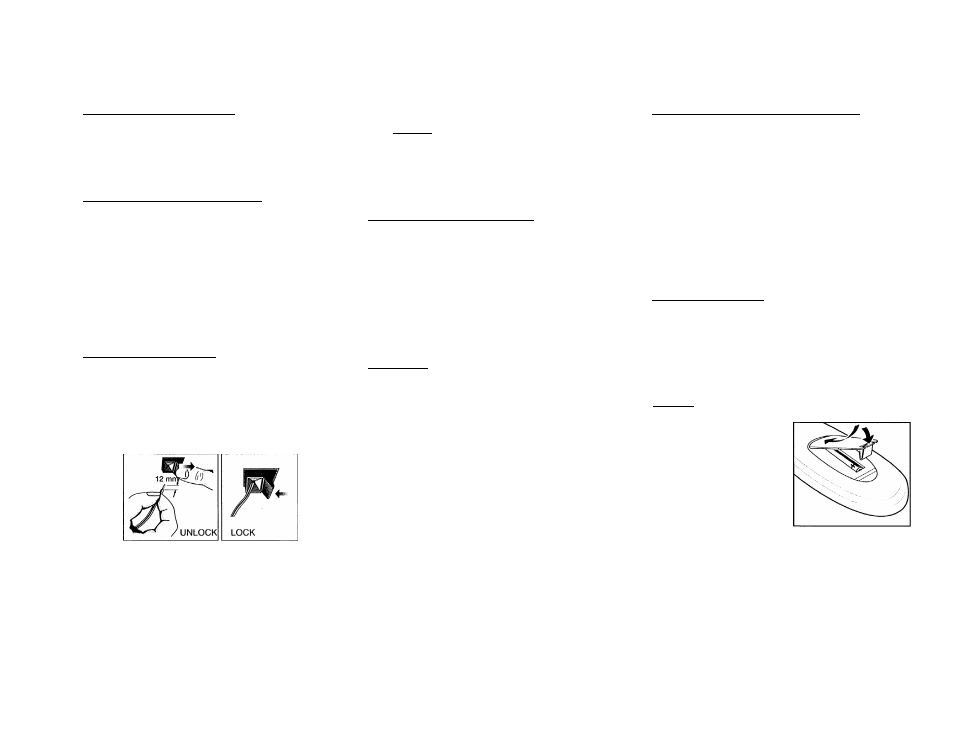

• Clip the stripped portion of the speaker wire as shown.
(D) Connecting other equipment to your
system_____________________________
You can connect the audio left and right OUT terminals of
a TV, Laser Disc player, VCR or DVD player to the AUX IN
terminals at the rear of the system.
( e ) Subwoofer Out Connection______________
You can connect either an optional active subwoofer or
an optional wireless active subwoofer to the
SUBVYOOFER OUT terminal. The wireless system uses a
radio frequency transmitter. The subwoofer reproduces
just the low bass effect (e.g. explosions, the rumble of
spaceships, etc.). Be sure to follow the instructions
supplied with the subwoofer.
© Line Out (wireless ready)
You may install additional front active speakers away
from the system (e.g. in another room) to reduce the
inconvenience of running long speaker wires across
rooms. You can place as many remote speakers as you
like provided that they operate at the same radio
frequency. Connect the wireless radio frequency
transmitter to the LINE DUT terminals. Place the active
speakers at your preferred location. Be sure to follow the
instructions supplied with the active speakers.
For Dolby Pro Logic Connection, see page 14.
(G) Wireless Surround Out Connection
You may connect transmitter unit of the wireless rear
speakers to the SURRDUND DUT terminal instead of the
wired rear speakers. Be sure to follow the instructions
supplied with the wireless rear speakers.
Note:
- Availability of wireless transmitter and its peripherals
are subjected to the approval of local authorities.
Please check with respective local safety or approving
authority.
( h ) AC Power Supply______________________
After all other connections have been made, connect the
AC power cord to the system and to the wall outlet.
Inserting batteries into tbe Remote
Control____________________________
* Insert the batteries (Type
R03 or AAA) into the
remote control as shown in
the battery compartment.
* To avoid damage from
possible battery leakage,
remove dead batteries or
batteries that will not be
used for a long time. For replacement, use type R03 or
AAA batteries.
