Basic Operations
• ST-96K: Stereo sound with 96kHz sampling
frequency
• Lt/Rt: 2-channel audio including surround
sound
• 1+1: Discrete monaural sound
• 1/0: Front 1-channel sound
• 2/0: Front 2-channel sound
• 2/1: Front 2-channel sound; surround mon-
aural sound
• 2/2: Front 2-channel sound; surround 2-
channel sound
• 3/0: Front 3-channel sound
• 3/1: Front 3-channel sound; surround mon-
aural sound
• 3/2: Front 3-channel sound; surround 2-
channel sound
• */*+LFE: Low-frequency channel sound
• NoSIGNAL: No digital signal is input
• ————: Current input signal is other than
linear PCM, Dolby digital DTS
• Fs ERR: Current signal input has sampling
frequency other than 32kHz, 44.1kHz,
48kHz, or 96kHz.
• CLIP: DSP output clipping
Note:
• When signals are input from the ANALOG 1 con-
nector or CeNET input connector, they are indi-
cated by the [STEREO] display.
DSF setting
DSF (Digital Sound Field) makes it possible
through sound simulation to enjoy the acoustic
experience you would have in a concert hall or a
live performance hall.
Any one of six sound effect patterns can be ap-
plied to the sound in the signal formats DTS,
Dolby Digital, or Linear PCM (or after decoding
Dolby Pro Logic II signals).
• The initial setting is [DSF OFF].
1. Press the [DSF] button.
Each time the [DSF] button is pressed, the in-
dications change as shown below.
[DSF OFF]
→ [HALL] → [CHURCH] →
[STADIUM] → [LIVE] → [JAZZCLUB] →
[THEATER] → [DSF OFF]
• HALL(Hall):Large concert hall.
• CHURCH(Church):Church with a vaulted
ceiling.
• STADIUM(Stadium):Large stadium without
roof or walls.
• LIVE(Live):Live performance hall, larger than
a jazz club.
• JAZZCLUB(Jazzclub):Jazz club with a low
ceiling.
• THEATER(Theater):Movie or drama theatre.
• The original mode is resumed when the
button is not pressed during a 7 second
interval.
Adjusting the sound volume
balance of each speaker
(AUDIO MODE)
You can adjust the sound image to suit the seat-
ing position and number of passengers.
1. Press the [A-MODE] button.
Each time the [A-MODE] button is pressed,
the indications change as shown below.
[SUB-W]
→ [CTR] → [BAL] → [FAD] →
original mode
• The original mode is resumed when the but-
ton is not pressed during a 7 second inter-
val.
2. Press the [ ] or [ ] [VOL] button to adjust
the value.
● SUB-W (Sub woofer):
Adjusts sub woofer volume.
The volume is adjusted in the range –6 to +3.
● CTR (Center speaker):
Adjusts center speaker volume.
The volume is adjusted in the range –6 to 0.
●
BAL (Balance):
Adjusts the sound volume in the left and right
speakers.
The sound volume is adjusted in the range
L13 to R13.
●
FAD (Fader):
Adjusts the sound volume in the front and rear
speakers.
The sound volume is adjusted in the range
R12 to F12.
Mute
Each time you press the [MUTE] button, mute is
turned on and off.
“MUTE” appears when mute is turned on.
1. CONFIRM BEFORE OPERATION
DVC920
4
DVC920
3
2. SPECIFICATIONS
Control unit
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable)
Ground: Negative
Current Consumption: Less than 3 A
Weight: 5oz. (150 g)
Dimensions:
6 5/16” Width
× 1 9/16” Hight × 13/16” Depth
(160 mm Width
× 39 mm Hight × 20.6mm Depth)
Note:
• Specifications and design are subject to change
without notice for further improvement.
List of accessories
1. Control unit .................................................. 1
2. Owner’s manual .......................................... 1
3. Warranty ...................................................... 1
4. Control unit cord .......................................... 1
5. Power supply harness ................................ 1
6. Parts bag (1)
• Cord clamps (small) ................................. 2
• Cord holders ............................................ 2
• Velcro tape (medium) .............................. 2
• Velcro tape (small) .................................... 2
• Manufactured under license from Dolby Labo-
ratories.
“Dolby”, “Pro Logic” and duble-D symbol are
trademarks of Dolby Laboratories.
• Manufactured under license from Digital The-
ater Systems, Inc. US Pat. No. 5,451,942,
5,956,674, 5,974,380, 5,978,762 and other
world-wide patents issued and pending.
“DTS” and “DTS Digital Surround” are regis-
tered trademarks of Digital Theater Systems,
Inc. © 1996, 2000 Digital Theater Systems, Inc.
All Rights Reserved.
About the registered marks etc.
● This component has not been designed to operate as an independent unit by itself, and
must be used in conjunction with a 5.1ch surround decoder. For information about Clarion
center units and DVD changers that can be connected to this component, see the sec-
tion “SYSTEM EXPANSION” on P17. Alternately, consult your retail dealer or Clarion
service center.
● When connecting this component (control unit), be sure to set the 5.1ch surround decoder’s
[STAND-ALONE / SLAVE] switch to the [STAND-ALONE] position. Also be sure to con-
nect the power cable.
● In order to demonstrate optimum audio performance, be sure to change the default set-
tings of the adjust mode’s [SP-SEL], [FILTER], [SP-GAIN] and [DELAY] functions (see
P9-13).
■

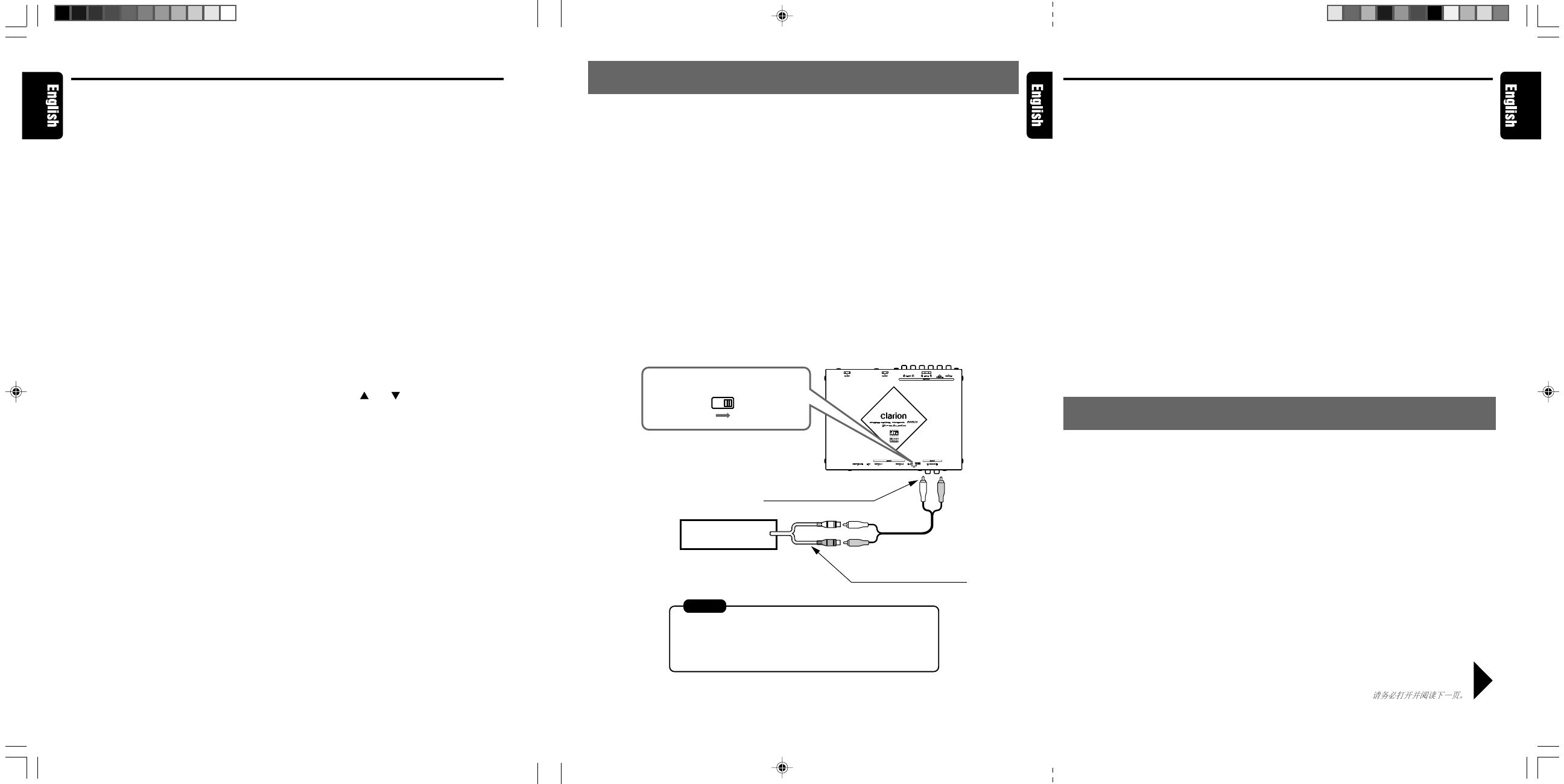

Using Analog Input Connections
• When connecting the RCA 2ch output of another component (center unit, etc.) to the analog
INPUT connectors, the Dolby Pro Logic II function can be used to convert to 5.1ch output.
SLAVE
STAND
ALONE
Set the [STAND-ALONE / SLAVE]
switch to the [STAND-ALONE] position.
Analog INPUT connectors
Center Unit
Audio OUTPUT connectors
NOTES:
• When using the analog INPUT connectors, consult the section
“Adjusting the RCA INPUT sensitivity” on P13 and adjust the
sensitivity properly to prevent audio distortion.
• Consult the section “Setting the Dolby digital functions” on
P11 and select the desired Dolby Pro Logic II mode.
