8. SYSTEM EXPANSION

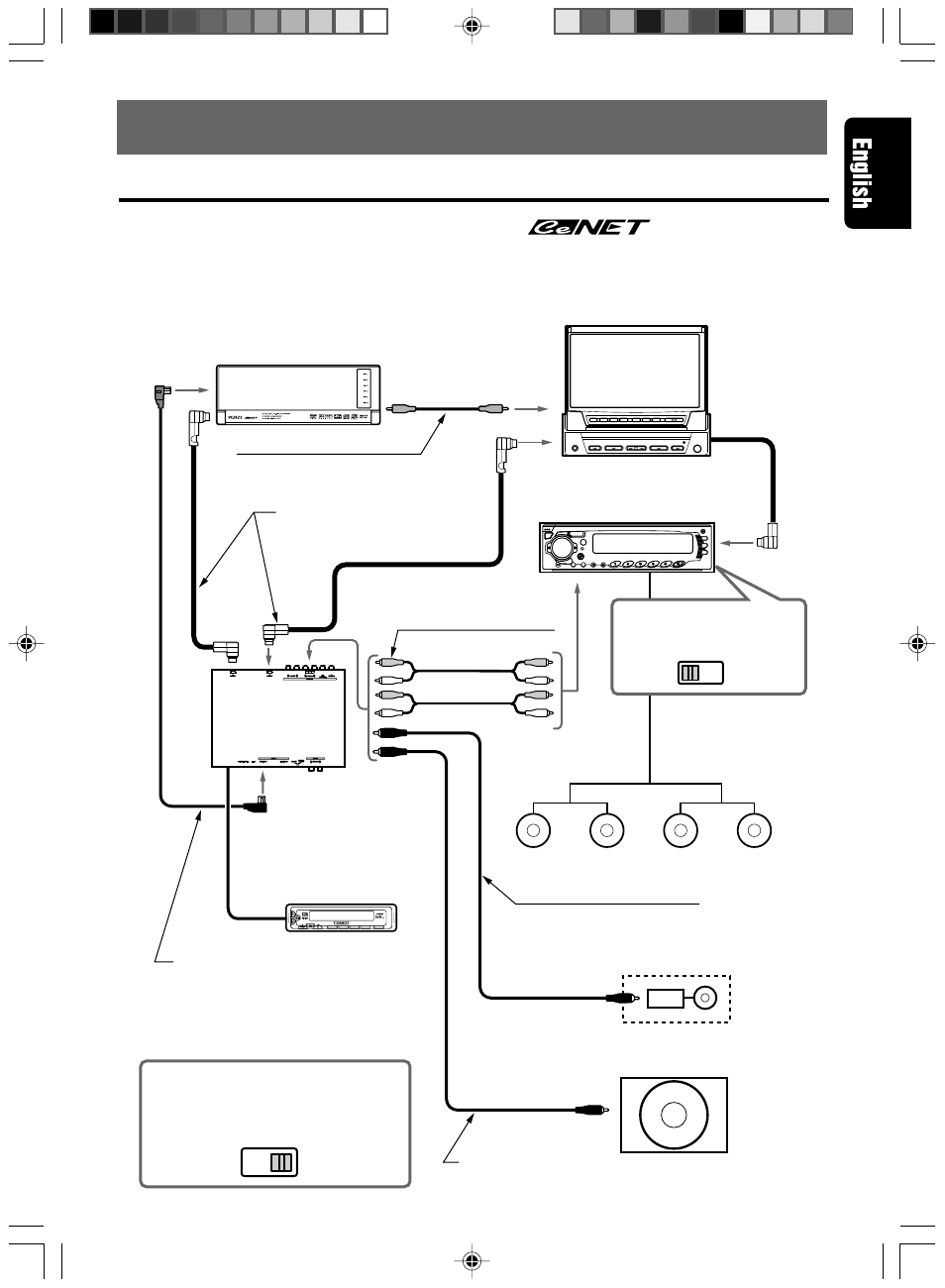

Example: DXZ825 + DVD Changer + Monitor
■
Even if you have an Clarion Center Unit ( compliant) that
cannot control 5.1ch surround sound, installing this Control Unit will
make it possible to operate the component successfully.
RCA video cable (yellow);
(furnished with DVD changer)
CeNET DVD Changer
Gray
CeNET Cable (furnished with
component to be connected)
RCA pin cable
(sold separately)
5.1ch Surround
Decoder
Black
Control Unit for 5.1ch
Surround Decoder
Optical Digital cable (sold separately)
DCA-005
(5 m)
DCA-008 (1.5 m)
* Connect properly in accordance with
color of connectors
Powered center speaker
Built-in amplifier
Amplifier
RCA pin cable (sold separately)
Powered sub-woofer
Built-in amplifier
Set the 5.1ch surround decoder’s
[STAND-ALONE / SLAVE] switch
to the [STAND-ALONE] position.
1-DIN TV
1-DIN Center Unit
Speaker wire
Front speakers Rear speakers
RCA pin cable
(furnished with Center Speaker)
Set the [LINE-IN/OUT] switch
to the LINE-IN position.
