14
DVC920
280-7804-00
POWER D S F ADJUST A-MODE SOURCE
3A
2
3
4
4
5
6
1
SLAVE
STAND
ALONE
7

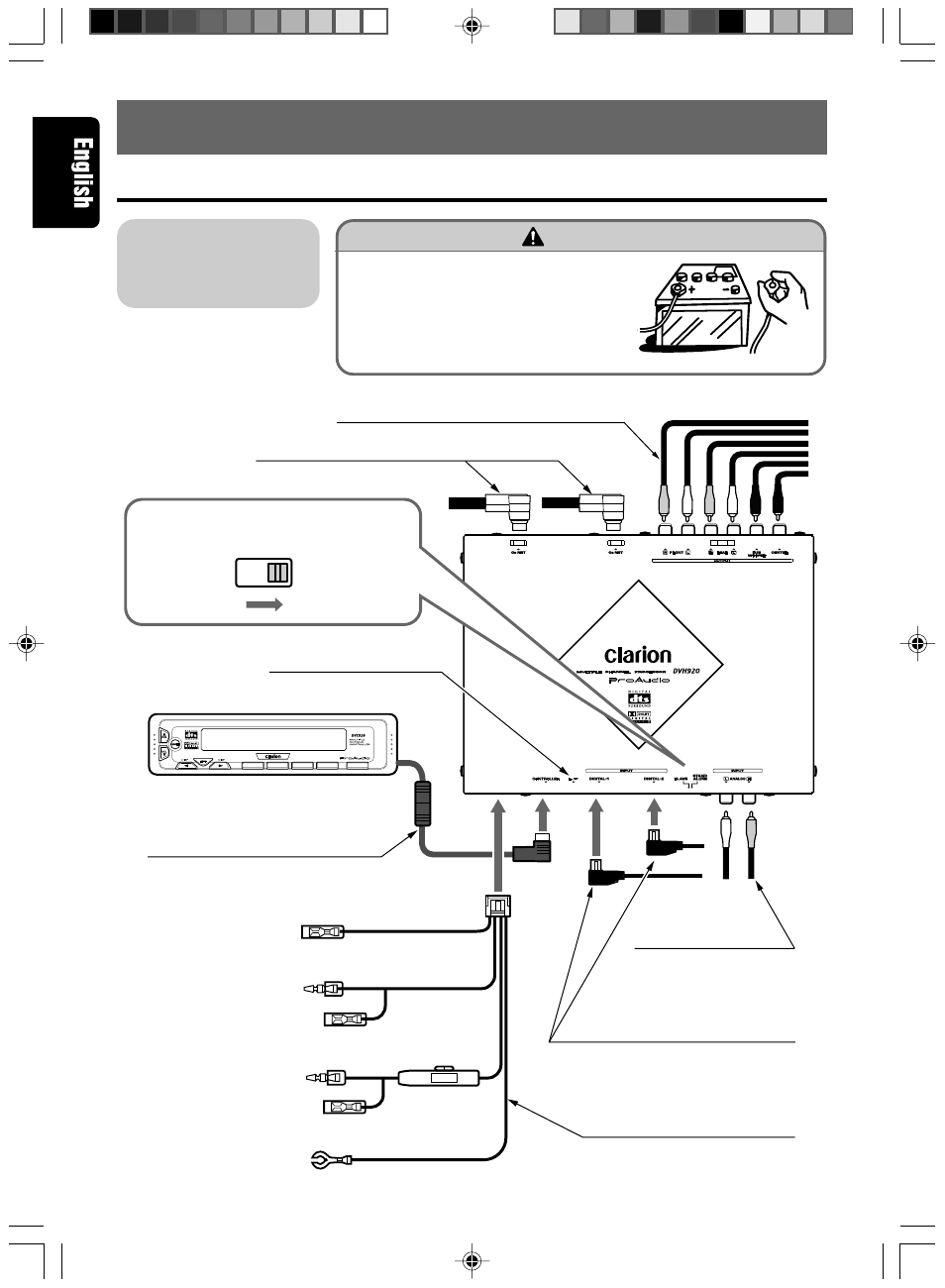

6. WIRING TECHNIQUES
How to Wire This Unit
RCA pin cable (purchase separately).
CeNET cable.
Set the [STAND-ALONE / SLAVE]
switch to the [STAND-ALONE] position.
Control Unit
Control Unit connection cord
Remote-On Cord.
Connect to the power
amplifier’s remote-on cord.
Accessory (ACC) power cord.
Connect to a power terminal
that can be turned ON/OFF by
the ignition key.
Main power cord.
Connect to a power terminal that
provides continuous current (3A
minimum) regardless of status of
ignition key.
Blue/white
Red
Accessory
terminal
Yellow
Fuse (3A)
Black
Black
RCA pin cable
(sold separately).
Optical Digital cable
(sold separately).
CAUTION
Throughout the process of wiring this unit,
disconnect the negative (–) terminal of your
automobile’s battery, and leave it discon-
nected until completely finished. Handling
wires while the terminal is connected could
result in dangerous electrical shock or injury
if an accidental short circuit should occur.
Connect to external amplifier.
Connect to center unit.
(5m) (furnished with main unit)
Connect to center unit's
RCA audio output.
Connect to DVD/CD changer.
[RESET] switch
Ground cord.
Use a screw to fasten to a
metal part of the car frame.
Accessory
terminal
Black
Power cable (5m)
(furnished with main unit)
Perform the settings and
connections in the order
indicated by the drawing
below.
* Steps 4-6 may differ, de-
pending on the component
connected. For detailed in-
structions, consult the sec-
tion “SYSTEM EXPAN-
SION” on P 17-18.
