18
DVC920
280-7804-00
POWER D S F ADJUST A-MODE SOURCE
(DVC 920)
(DVH920)
SLAVE
STAND
ALONE
(VCZ625)

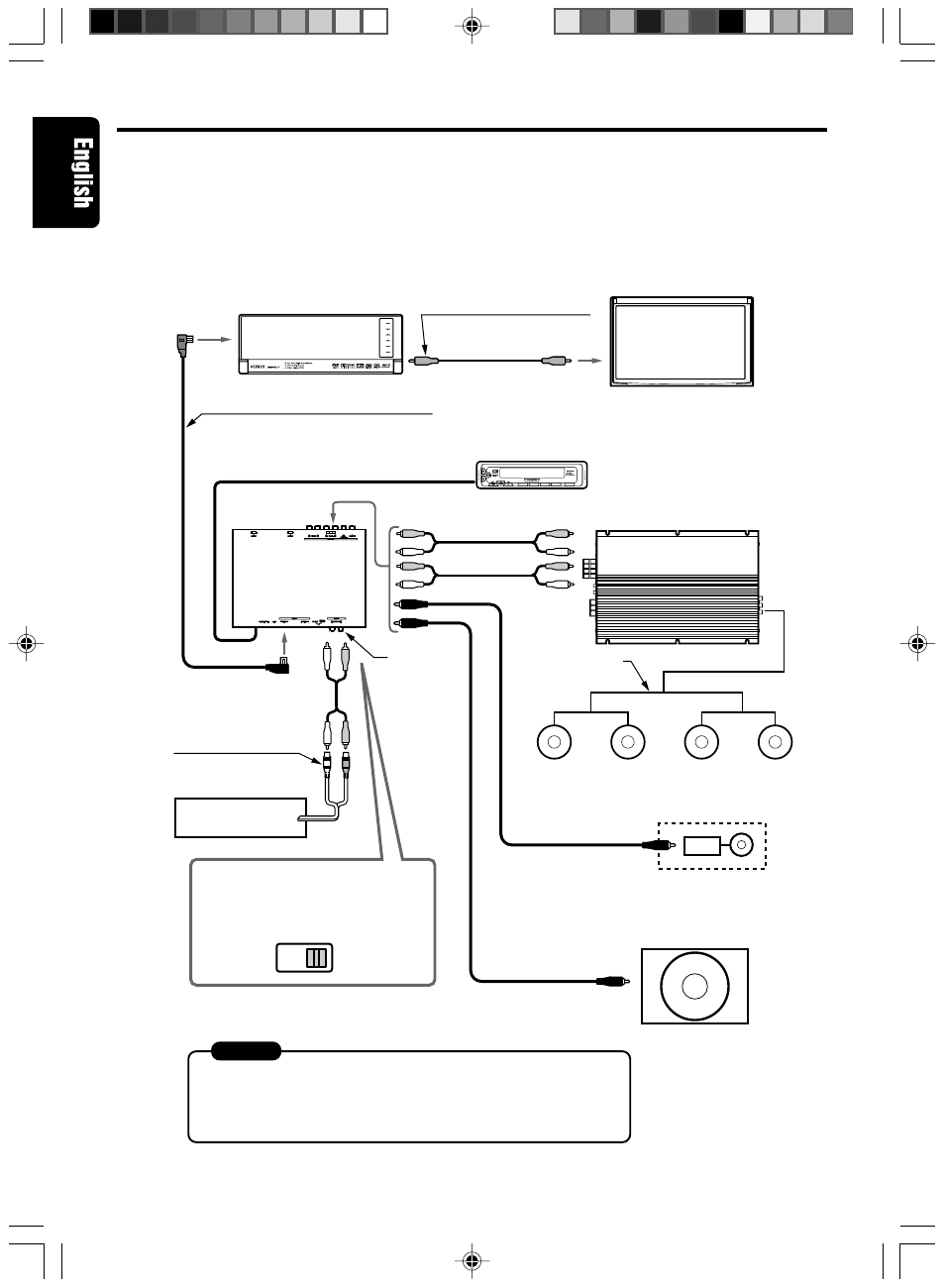

Example : Center Unit + DVD Changer + Monitor
■
When this control unit is connected, a 5.1ch surround decoder can be
controlled, even when used with a center unit equipped with RCA 2ch
audio outputs. This also makes it possible to adopt digital wiring con-
nections for a DVD changer.
5.1ch surround
decoder control unit
RCA pin cable
(sold separately)
4CH power amplifier
5.1ch surround
decoder
Analog
signal
input
connectors
Center unit
Set the 5.1ch surround
decoder’s [STAND-ALONE /
SLAVE] switch to the [STAND-
ALONE] position.
Speaker wire
Front speakers Rear speakers
Powered center speaker
Built-in amplifier
Amplifier
RCA pin cable
(furnished with center speaker)
Powered sub-woofer
Built-in amplifier
RCA pin cable
(sold separately)
NOTES:
• Be sure to set the DVD changer's [CeNET/STAND-ALONE]
switch to the [STAND-ALONE] position.
• Do not use the DVD changer's RCA audio output (AUDIO OUT)
jacks.
Monitor
(Gray)
RCA video cable (yellow);
(furnished with DVD changer)
Optical Digital cable (sold separately)
DCA-005
(5 m) DCA-008 (1.5 m)
* Connect properly in accordance with
color of connectors
Audio signal
output connector
CeNET DVD Changer
(Black)
